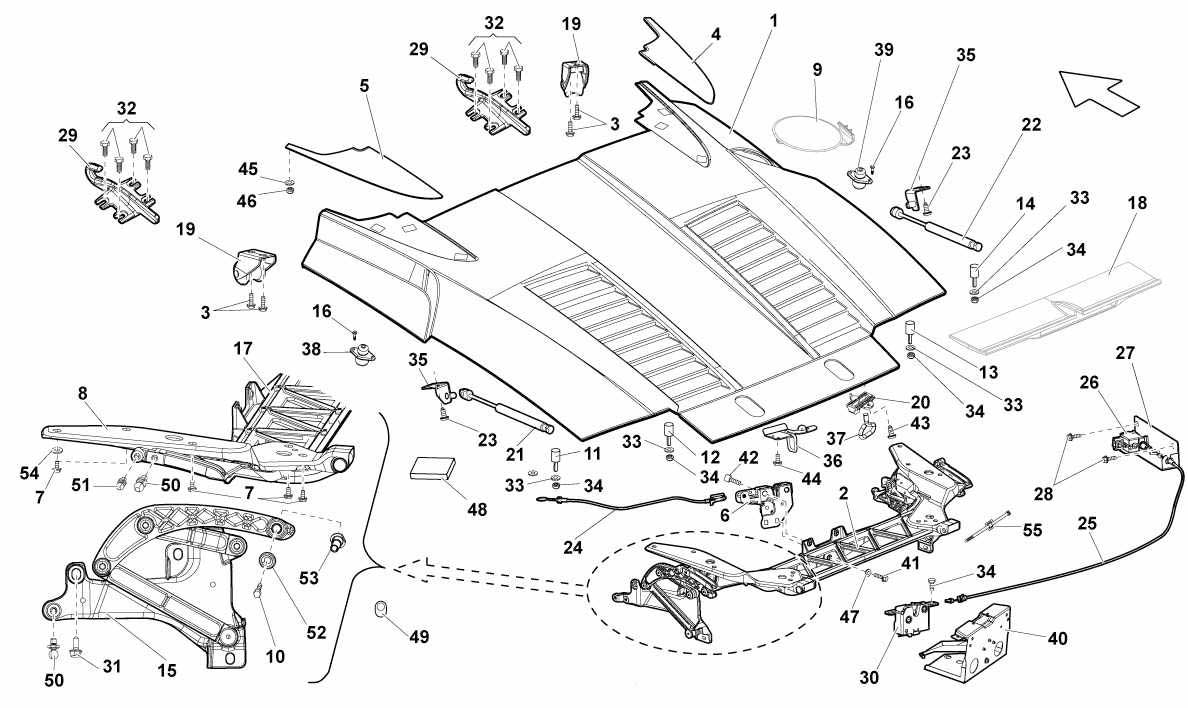

REAR HOOD

Go to Split View

REAR HOOD

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 407827023 *Qty: 1 ENGINE HOOD $20,668.86
Location: 2 Prev | Next Part: *Qty: 0 ENGINE HOOD SUPPORT (CANNOT BE SOLD SEPARATELY) Call
Location: 3 Prev | Next Part: N0195194 *Qty: 4 HEXALOBULAR SOCKET FLANGE BOLT M8X16 $0.90
Location: 4 Prev | Next Part: 407827340A *Qty: 1 COVER- RH $431.80
Location: 5 Prev | Next Part: 407827339A *Qty: 1 COVER- LH $431.80
Location: 6 Prev | Next Part: 8E0823509B *Qty: 1 SERVICE LOCK $45.49
Location: 7 Prev | Next Part: N90989102 *Qty: 10 HEXALOBULAR SOCKET FLANGE BOLT M8X18 $0.90
Location: 8 Prev | Next Part: *Qty: 0 FIXING ANGLE (CANNOT BE SOLD SEPARATELY) Call
Location: 9 Prev | Next Part: *Qty: 0 FUEL FILLER LID (SEE TABLE 201.07.00) Call
Location: 10 Prev | Next Part: WHT003223 *Qty: 2 SCREW M8X35 $32.28
Location: 11 Prev | Next Part: 400807333 *Qty: 1 ADJUSTING BUFFER $29.88
Location: 12 Prev | Next Part: 400807333 *Qty: 1 ADJUSTING BUFFER $29.88
Location: 13 Prev | Next Part: 400807333 *Qty: 1 ADJUSTING BUFFER $29.88
Location: 14 Prev | Next Part: 400807333 *Qty: 1 ADJUSTING BUFFER $29.88
Location: 15 Prev | Next Part: 407827301C *Qty: 1 SUPPORT LH $924.39
Location: 15 Prev | Next Part: 407827302C *Qty: 1 SUPPORT RH $924.39
Location: 16 Prev | Next Part: N10353801 *Qty: 4 SCREW M8X13 $0.90
Location: 17 Prev | Next Part: *Qty: 0 SUPPORT (CANNOT BE SOLD SEPARATELY - SEE REF. 2) Call
Location: 18 Prev | Next Part: *Qty: 0 SPOILER (SEE TABLE 827.03.00) Call
Location: 19 Prev | Next Part: 407827501B *Qty: 2 LOCK $211.19
Location: 20 Prev | Next Part: 4E0823203B *Qty: 1 CLOSURE PLATE $3.80
Location: 21 Prev | Next Part: 407827550B *Qty: 1 SHOCK ABSORBER (SPRING WITH MECHANICAL STOP) $90.90
Location: 22 Prev | Next Part: 407827550A *Qty: 1 SHOCK ABSORBER $55.59
Location: 23 Prev | Next Part: N91033701 *Qty: 4 SCREW M8X20 $3.27
Location: 24 Prev | Next Part: 407827536 *Qty: 1 MANUAL OPENING CABLE $35.52
Location: 25 Prev | Next Part: 407827531B *Qty: 1 MANUAL OPENING CABLE $154.74
Location: 26 Prev | Next Part: 407827469A *Qty: 1 ACTUATOR $43.42
Location: 27 Prev | Next Part: 407827909A *Qty: 1 BRACKET $29.13
Location: 28 Prev | Next Part: N90737103 *Qty: 2 HEXALOBULAR SOCKET FLANGE BOLT M6X12 $0.90
Location: 29 Prev | Next Part: 407827355 *Qty: 2 HOOK $260.54
Location: 30 Prev | Next Part: 4E0823509D *Qty: 1 HOOD LOCK $75.73
Location: 31 Prev | Next Part: N91000201 *Qty: 6 HEXALOBULAR SOCKET FLANGE BOLT M8X25 $0.90
Location: 32 Prev | Next Part: N90900401 *Qty: 8 SCREW M6X20 $0.90
Location: 33 Prev | Next Part: WHT000909 *Qty: 4 WASHER $0.90
Location: 34 Prev | Next Part: WHT000765 *Qty: 4 NUT $0.99
Location: 35 Prev | Next Part: 407827524B *Qty: 1 SUPPORT RH $21.81
Location: 35 Prev | Next Part: 407827523B *Qty: 1 SUPPORT LH $50.60
Location: 36 Prev | Next Part: 400827518A *Qty: 1 CLOSURE PLATE $18.04
Location: 37 Prev | Next Part: 4E0823197A *Qty: 1 HOOK $12.81
Location: 38 Prev | Next Part: 8L0827249 *Qty: 1 ADJUSTING BUFFER $6.86
Location: 39 Prev | Next Part: 8L0827249 *Qty: 1 ADJUSTING BUFFER $6.86
Location: 40 Prev | Next Part: *Qty: 0 BRACKET (SEE TABLE 121.05.00 REF. 24) Call
Location: 41 Prev | Next Part: N90847903 *Qty: 2 SCREW M6X15.0 $0.90
Location: 42 Prev | Next Part: N91071702 *Qty: 2 SCREW M6X25 $0.90
Location: 43 Prev | Next Part: N10621601 *Qty: 1 SCREW M4X12.0 $0.90
Location: 44 Prev | Next Part: N90532901 *Qty: 3 SCREW M6X16 $3.22
Location: 45 Prev | Next Part: N01152221 *Qty: 2 WASHER $0.90
Location: 46 Prev | Next Part: WHT002959 *Qty: 2 NUT $0.90
Location: 49 Prev | Next Part: 407827527 *Qty: 6 SPACER $5.80
Location: 50 Prev | Next Part: N90938001 *Qty: 4 BALL PIN $8.18
Location: 51 Prev | Next Part: 895827439B *Qty: 4 BALL PIN $3.56
Location: 52 Prev | Next Part: 407827549 *Qty: 6 WASHER $32.28
Location: 53 Prev | Next Part: 407827850 *Qty: 2 SCREW $32.28
Location: 54 Prev | Next Part: N90477302 *Qty: 10 WASHER $0.90
Location: 55 Prev | Next Part: N10659801 *Qty: 2 CLAMP $1.98

* Quantity shown indicates the number of pieces used in the diagram.
