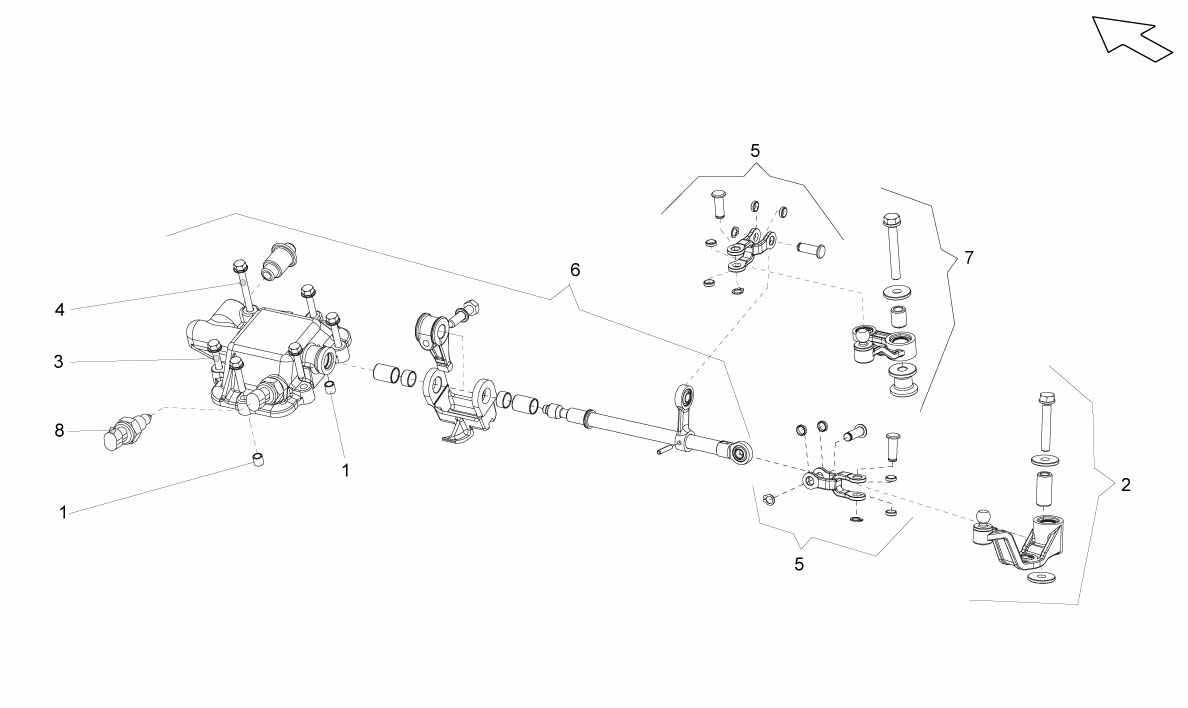

MECHANICAL ACTUATOR

Go to Split View

MECHANICAL ACTUATOR

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 86301299 *Qty: 2 DOWEL $5.04
Location: 2 Prev | Next Part: 86398211B *Qty: 1 LEVER OF GRAFTS (MANUAL GEARBOX) $693.99
Location: 3 Prev | Next Part: N91054401 *Qty: 5 SCREW $0.90
Location: 4 Prev | Next Part: N10530301 *Qty: 1 SCREW $0.90
Location: 5 Prev | Next Part: 86398211C *Qty: 2 CONNECTING ROD KIT (MANUAL GEARBOX) $267.87
Location: 6 Prev | Next Part: 86311681A *Qty: 1 EXTERNAL COMMAND (MANUAL GEARBOX) $1,143.04
Location: 7 Prev | Next Part: 86398211A *Qty: 1 SELECTION LEVER (MANUAL GEARBOX) $376.17
Location: 8 Prev | Next Part: 86941521 *Qty: 1 SWITCH (MANUAL GEARBOX) $102.29

* Quantity shown indicates the number of pieces used in the diagram.
