LIGHTS

Go to Split View

LIGHTS

in cart

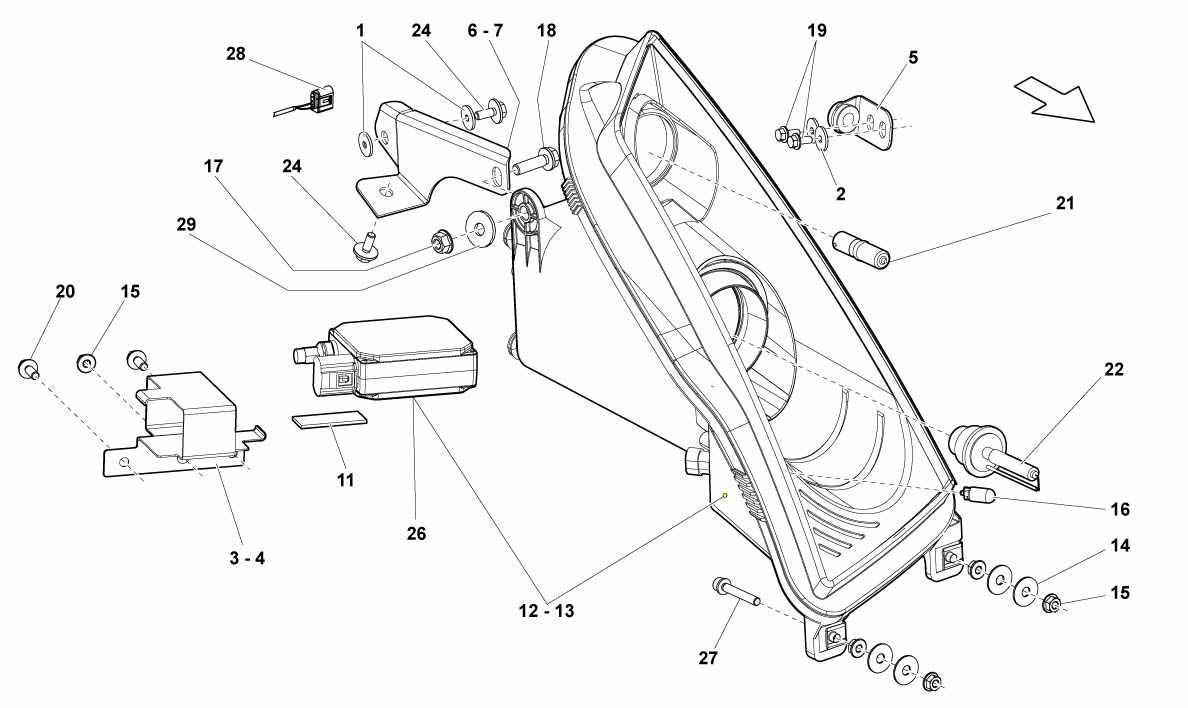

Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 5133170 *Qty: 8 WASHER $2.45
Location: 2 Prev | Next Part: WHT000778 *Qty: 10 WASHER $0.90
Location: 3 Prev | Next Part: 400907461 *Qty: 1 BALLAST CONTROL UNIT SUPPORT BRACKET- LH $17.08
Location: 4 Prev | Next Part: 400907462 *Qty: 1 BALLAST CONTROL UNIT SUPPORT BRACKET- RH $17.08
Location: 5 Prev | Next Part: 400941455 *Qty: 2 SUPPORT $31.78
Location: 6 Prev | Next Part: 400941613 *Qty: 1 LH HEADLIGHT REAR FIXING BRACKET $70.39
Location: 7 Prev | Next Part: 400941614 *Qty: 1 RH HEADLIGHT REAR FIXING BRACKET $70.39
Location: 10 Prev | Next Part: 400955487 *Qty: 4 SHIM $28.09
Location: 11 Prev | Next Part: 400959645 *Qty: 2 SOUNDPROOFING MATERIAL $1.03
Location: 12 Prev | Next Part: 401941003A *Qty: 1 HEADLIGHT- LH $3,997.21
Location: 13 Prev | Next Part: 401941004A *Qty: 1 HEADLIGHT- RH $3,997.21
Location: 14 Prev | Next Part: N0116946 *Qty: 8 WASHER 7X22 $0.90
Location: 15 Prev | Next Part: N0150825 *Qty: 14 NUT $0.90
Location: 16 Prev | Next Part: N0177539 *Qty: 2 BULB W5W-12V5W $11.24
Location: 17 Prev | Next Part: N0230038 *Qty: 2 NUT $0.90
Location: 18 Prev | Next Part: N0903164 *Qty: 2 SCREW M8X30 $0.90
Location: 19 Prev | Next Part: N10338301 *Qty: 4 SCREW M5X12 $0.90
Location: 20 Prev | Next Part: N10338901 *Qty: 4 SCREW M6X16 $0.90
Location: 21 Prev | Next Part: N10445601 *Qty: 2 BULB H21W-12V21W $20.80
Location: 22 Prev | Next Part: N10445703 *Qty: 2 BULB D2SLL-12V35W $161.00
Location: 24 Prev | Next Part: N90847901 *Qty: 2 SCREW $0.90
Location: 25 Prev | Next Part: N91045401 *Qty: 2 CLAMP $0.90
Location: 26 Prev | Next Part: 3B0941641 *Qty: 2 CONTROL UNIT Call
Location: 27 Prev | Next Part: N10092202 *Qty: 4 SCREW M6X40 $0.96
Location: 28 Prev | Next Part: 400998003 *Qty: 2 CONNECTOR $2.22
Location: 29 Prev | Next Part: N0116974 *Qty: 4 WASHER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
