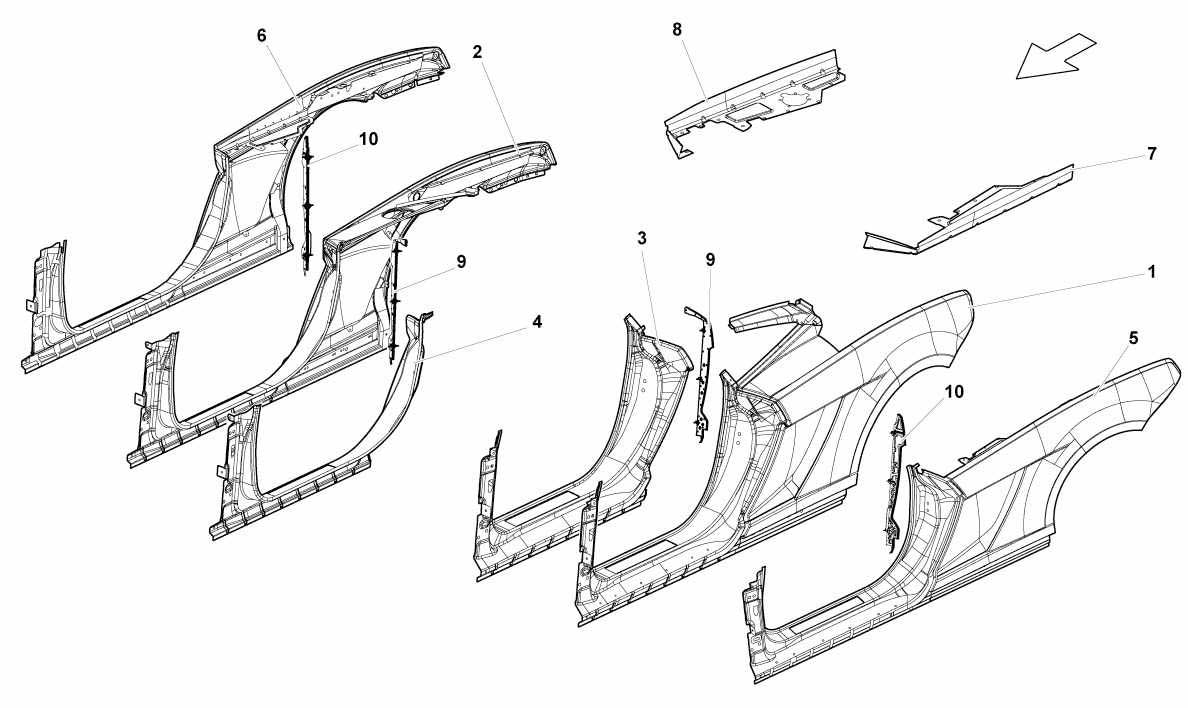

LATERAL FRAME ATTACHMENTS

Go to Split View

LATERAL FRAME ATTACHMENTS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: *Qty: 1 LEFT SIDE COVER ASSEMBLY (VALID FOR A DIFFERENT MODEL) Call
Location: 2 Prev | Next Part: *Qty: 1 RIGHT SIDE COVER ASSEMBLY (VALID FOR A DIFFERENT MODEL) Call
Location: 3 Prev | Next Part: 407810577 *Qty: 1 DOOR FRAME $1,062.38
Location: 4 Prev | Next Part: 407810578 *Qty: 1 DOOR FRAME $1,062.38
Location: 5 Prev | Next Part: 407809009 *Qty: 1 LEFT SIDE COVER ASSEMBLY (INCLUDES REF. 7) $15,708.33
Location: 6 Prev | Next Part: 407809010 *Qty: 1 RIGHT SIDE COVER ASSEMBLY (INCLUDES REF. 8) $15,708.33
Location: 7 Prev | Next Part: *Qty: 1 SUPPORT (CANNOT BE SOLD SEPARATELY - SEE REF. 5) Call
Location: 8 Prev | Next Part: *Qty: 1 SUPPORT (CANNOT BE SOLD SEPARATELY - SEE REF. 6) Call
Location: 9 Prev | Next Part: *Qty: 2 SUPPORT (VALID FOR A DIFFERENT MODEL) Call
Location: 10 Prev | Next Part: 407809697 *Qty: 2 SUPPORT $1,008.64

* Quantity shown indicates the number of pieces used in the diagram.
