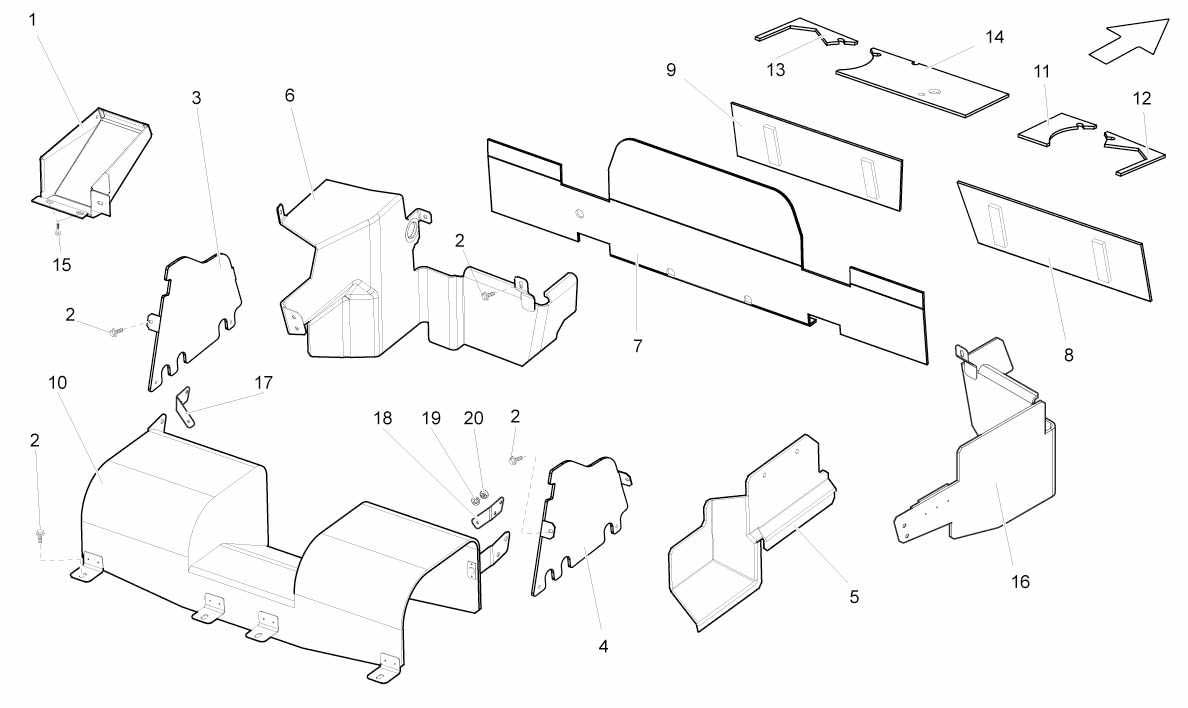

HEAT SHIELD

Go to Split View

HEAT SHIELD

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 407103755A *Qty: 1 PROTECTION $196.68
Location: 2 Prev | Next Part: N90847901 *Qty: 8 SCREW $0.90
Location: 3 Prev | Next Part: 407501716 *Qty: 1 LH PANEL $444.56
Location: 4 Prev | Next Part: 407501715 *Qty: 1 RH PANEL $444.56
Location: 5 Prev | Next Part: 407201782A *Qty: 1 RH PANEL $446.99
Location: 6 Prev | Next Part: 407201783 *Qty: 1 LH PANEL $715.19
Location: 7 Prev | Next Part: 407103747A *Qty: 1 FIREPROOF SHIELD $438.06
Location: 8 Prev | Next Part: 400103754 *Qty: 1 RH PANEL $107.28
Location: 9 Prev | Next Part: 400103753 *Qty: 1 LH PANEL $107.28
Location: 10 Prev | Next Part: 407251413C *Qty: 1 PROTECTION $1,919.33
Location: 11 Prev | Next Part: 407103750 *Qty: 1 RH PANEL $35.77
Location: 12 Prev | Next Part: 407103782 *Qty: 1 RH PANEL $335.25
Location: 13 Prev | Next Part: 407103781 *Qty: 1 LH PANEL $335.25
Location: 14 Prev | Next Part: 407103749 *Qty: 1 LH PANEL $71.51
Location: 15 Prev | Next Part: N90847901 *Qty: 3 SCREW $0.90
Location: 16 Prev | Next Part: 407201976 *Qty: 1 RH PANEL $670.50
Location: 17 Prev | Next Part: 400251529 *Qty: 1 LH BRACKET $54.28
Location: 18 Prev | Next Part: 400251530 *Qty: 1 RH BRACKET $21.99
Location: 19 Prev | Next Part: N0115473 *Qty: 2 WASHER $0.90
Location: 20 Prev | Next Part: N01118312 *Qty: 2 SCREW $0.90

* Quantity shown indicates the number of pieces used in the diagram.
