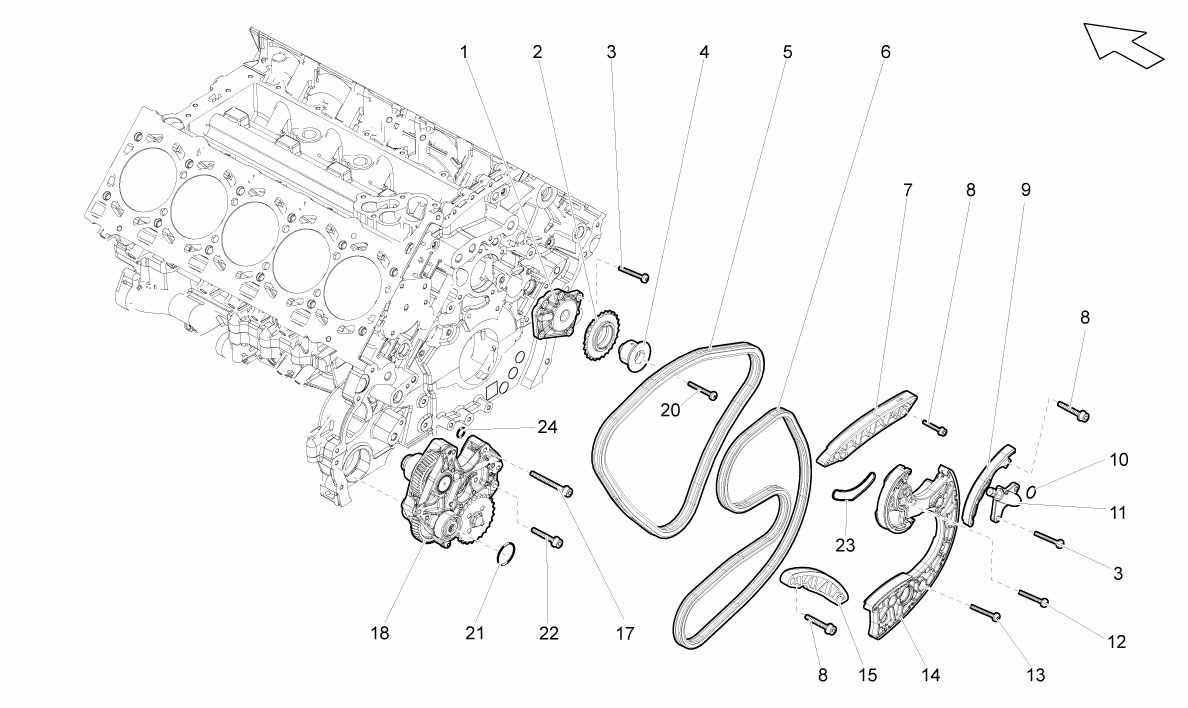

HEAD TIMING SYSTEM

Go to Split View

HEAD TIMING SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 79103337B *Qty: 1 SUPPORT $31.09
Location: 2 Prev | Next Part: 79109570A *Qty: 1 GEAR Call
Location: 3 Prev | Next Part: N10124303 *Qty: 7 SCREW M6X20 $0.90
Location: 4 Prev | Next Part: 79109512E *Qty: 1 RIGHT SUPPORT $74.57
Location: 5 Prev | Next Part: 79109229 *Qty: 1 CHAIN $91.60
Location: 6 Prev | Next Part: 79109229D *Qty: 1 CHAIN $93.59
Location: 7 Prev | Next Part: 79109469A *Qty: 1 SHOE Call
Location: 8 Prev | Next Part: 79109426 *Qty: 5 JOURNAL $5.21
Location: 9 Prev | Next Part: 79109510F *Qty: 1 GUIDE $40.21
Location: 10 Prev | Next Part: N90638402 *Qty: 1 O-RING 5X1-5 $0.90
Location: 11 Prev | Next Part: 79109467A *Qty: 1 CHAIN TIGHTENER Call
Location: 12 Prev | Next Part: N10554001 *Qty: 2 SCREW M6X35 $1.80
Location: 13 Prev | Next Part: N10124303 *Qty: 2 SCREW M6X20 $0.90
Location: 14 Prev | Next Part: 79109507G *Qty: 1 CHAIN TIGHTENER $90.94
Location: 15 Prev | Next Part: 79109469A *Qty: 1 SHOE Call
Location: 17 Prev | Next Part: N10331201 *Qty: 5 SCREW M6X40 $0.90
Location: 18 Prev | Next Part: 7L109359G *Qty: 1 SUPPORT $806.37
Location: 20 Prev | Next Part: N0447068 *Qty: 1 SCREW M10X40 $3.22
Location: 21 Prev | Next Part: WHT000417 *Qty: 1 O-RING 16.6X2.6 $1.84
Location: 22 Prev | Next Part: N90965801 *Qty: 1 SCREW M6X30.0 $0.90
Location: 23 Prev | Next Part: 79109139A *Qty: 1 GASKET $2.91
Location: 24 Prev | Next Part: N90740801 *Qty: 1 O-RING $0.90

* Quantity shown indicates the number of pieces used in the diagram.
