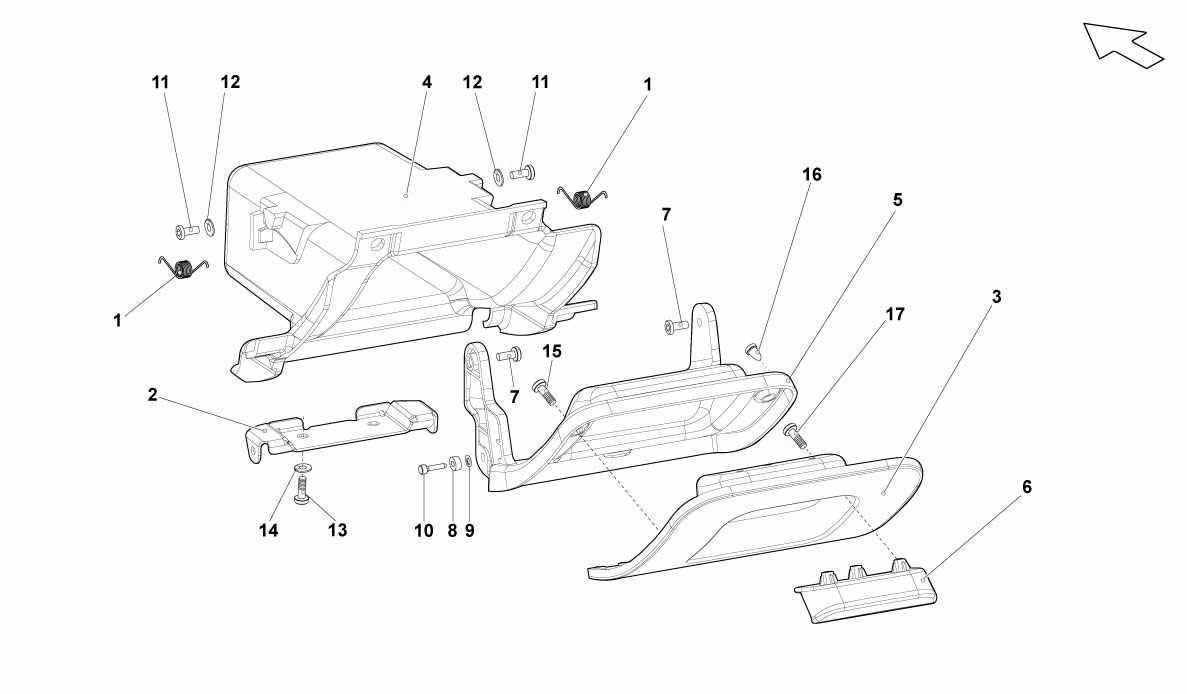

DRIVER SIDE DRAWER

Go to Split View

DRIVER SIDE DRAWER

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 400858997 *Qty: 1 LH SPRING $36.99
Location: 1 Prev | Next Part: 400858998 *Qty: 1 RH SPRING $32.79
Location: 2 Prev | Next Part: 400867075 *Qty: 1 BRACKET $10.20
Location: 3 Prev | Next Part: 401857121B *Qty: 1 GLOVE BOX LID ASSEMBLY (PERFORATED LEATHER INTERIOR - SUPPLY VIN) $1,092.29
Location: 3 Prev | Next Part: 401857121 *Qty: 1 GLOVE BOX LID ASSEMBLY (LEFT-HAND DRIVE LEATHER UPHOLSTERY ? PROVIDE VIN) $1,092.29
Location: 3 Prev | Next Part: 401857121A *Qty: 1 GLOVE BOX LID ASSEMBLY (LEFT-HAND DRIVE ALCANTARA UPHOLSTERY ? PROVIDE VIN) $1,092.29
Location: 4 Prev | Next Part: 401857923A *Qty: 1 LOWER LEFT DASHBOARD ASSEMBLY $196.47
Location: 5 Prev | Next Part: 401858413A *Qty: 1 GLOVE BOX LID INSIDE $118.72
Location: 6 Prev | Next Part: 401858921A *Qty: 1 CONTROL $36.38
Location: 7 Prev | Next Part: 8700463 *Qty: 2 SCREW 4.2X9.5 $1.23
Location: 8 Prev | Next Part: 400867538 *Qty: 2 SPACER $11.95
Location: 9 Prev | Next Part: N0126252 *Qty: 2 SEAL RING $0.90
Location: 10 Prev | Next Part: N10639701 *Qty: 2 JOURNAL $3.46
Location: 11 Prev | Next Part: N90562401 *Qty: 2 SCREW $1.41
Location: 12 Prev | Next Part: WHT000778 *Qty: 2 WASHER $0.90
Location: 13 Prev | Next Part: N10596302 *Qty: 2 SCREW M5X25.0 $0.90
Location: 14 Prev | Next Part: N01152427 *Qty: 2 WASHER $0.90
Location: 15 Prev | Next Part: N10406602 *Qty: 3 SCREW M5X8 $0.90
Location: 16 Prev | Next Part: N91092001 *Qty: 2 RUBBER STOP 4.50X2.2X8.60 $0.90
Location: 17 Prev | Next Part: N90562401 *Qty: 6 SCREW 3.5X10 $1.41

* Quantity shown indicates the number of pieces used in the diagram.
