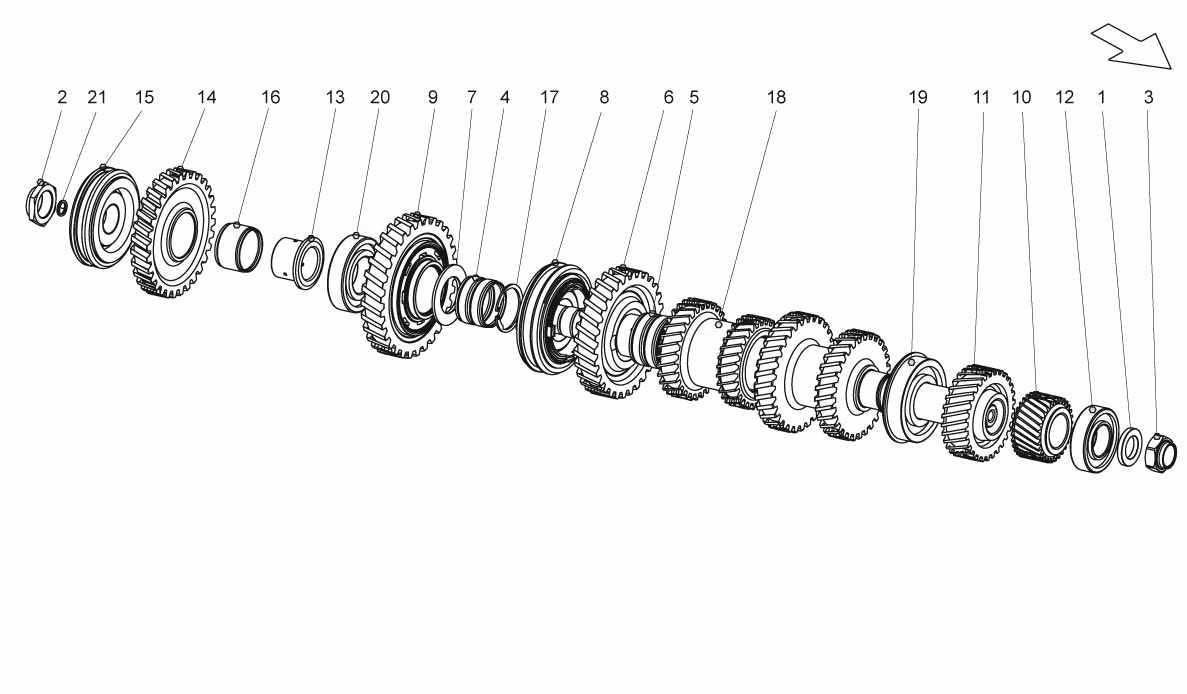

DRIVEN SHAFT

Go to Split View

DRIVEN SHAFT

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 86307293 *Qty: 1 WASHER $22.11
Location: 2 Prev | Next Part: 86307303 *Qty: 1 RING NUT $78.71
Location: 3 Prev | Next Part: 86307304 *Qty: 1 RING NUT $78.71
Location: 4 Prev | Next Part: 86311132 *Qty: 1 ROLLER CAGE $34.82
Location: 5 Prev | Next Part: 86311150 *Qty: 1 ROLLER CAGE $36.63
Location: 6 Prev | Next Part: 86311163A *Qty: 1 SECOND GEAR $358.81
Location: 7 Prev | Next Part: 86311231 *Qty: 1 SPACER $69.79
Location: 8 Prev | Next Part: 86311243A *Qty: 1 SYNCHRONIZING GEAR $1,810.59
Location: 9 Prev | Next Part: 86311257A *Qty: 1 FIRST GEAR $889.59
Location: 10 Prev | Next Part: 86311348A *Qty: 1 GEAR $222.13
Location: 11 Prev | Next Part: 86311352A *Qty: 1 GEAR $413.16
Location: 12 Prev | Next Part: 86311372 *Qty: 1 BEARING $188.42
Location: 13 Prev | Next Part: 86311423 *Qty: 1 BUSHING $202.55
Location: 14 Prev | Next Part: 86311532A *Qty: 1 REVERSE IDLE GEAR $839.65
Location: 15 Prev | Next Part: 86311762A *Qty: 1 SYNCHRONIZING GEAR $424.95
Location: 16 Prev | Next Part: 86311770 *Qty: 1 ROLLER CAGE $30.59
Location: 17 Prev | Next Part: 86311187A *Qty: 1 RING $13.97
Location: 18 Prev | Next Part: 86311195E *Qty: 1 MAIN SHAFT $1,516.02
Location: 19 Prev | Next Part: 86311235A *Qty: 1 BEARING $84.63
Location: 20 Prev | Next Part: 86311372B *Qty: 1 BEARING $200.17
Location: 21 Prev | Next Part: N91014801 *Qty: 1 O-RING $1.17

* Quantity shown indicates the number of pieces used in the diagram.
