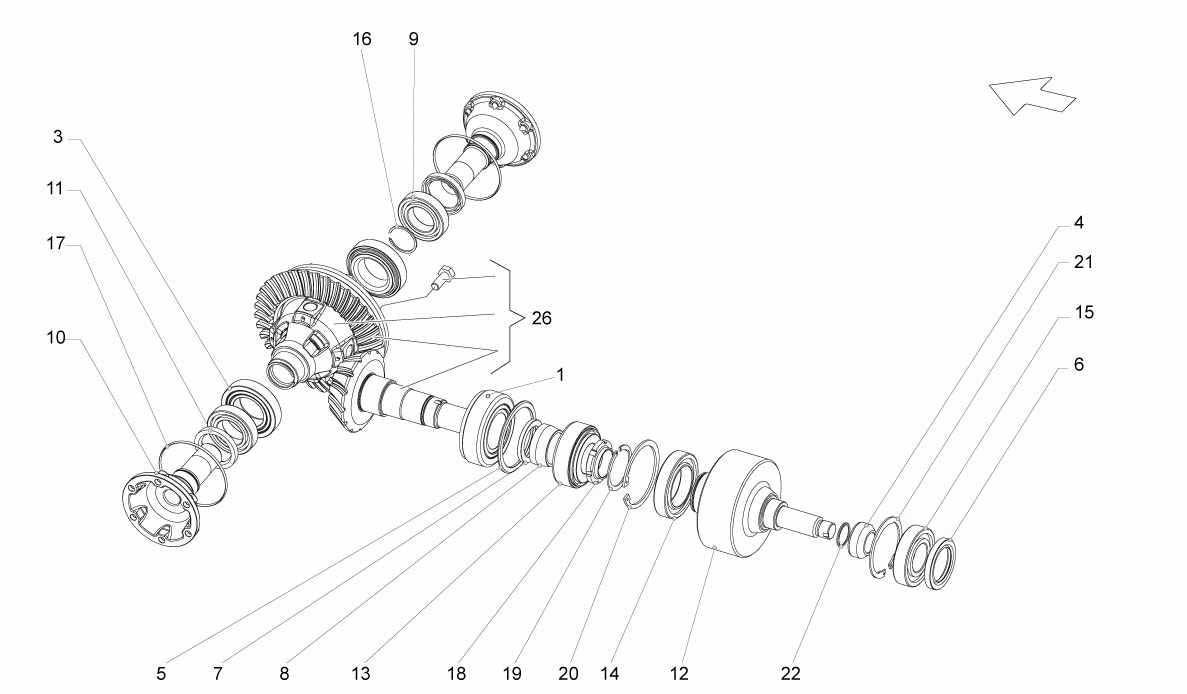

DIFFERENTIAL

Go to Split View

DIFFERENTIAL

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 86311211 *Qty: 1 BEARING $234.80
Location: 3 Prev | Next Part: 1S409123 *Qty: 2 BEARING $68.85
Location: 4 Prev | Next Part: 1S409223 *Qty: 1 SPACER $70.54
Location: 5 Prev | Next Part: 1S409231 *Qty: 1 SPACER $55.61
Location: 6 Prev | Next Part: 1S409255 *Qty: 1 SEAL RING $120.74
Location: 7 Prev | Next Part: 1S409267 *Qty: 1 SPACER mm 5.00 $39.72
Location: 7 Prev | Next Part: 1S409267E *Qty: 1 SPACER mm. 5.60 $39.72
Location: 7 Prev | Next Part: 1S409267D *Qty: 1 SPACER mm. 5.25 $42.36
Location: 8 Prev | Next Part: 1S409267A *Qty: 1 SPACER $39.72
Location: 9 Prev | Next Part: 1S409294 *Qty: 2 BEARING $68.74
Location: 10 Prev | Next Part: 1S409355 *Qty: 2 FLANGE $408.23
Location: 11 Prev | Next Part: 1S409399 *Qty: 2 SEAL RING $41.09
Location: 12 Prev | Next Part: 1S409435C *Qty: 1 VISCOUS COUPLING $8,763.60
Location: 13 Prev | Next Part: 1S409551 *Qty: 1 BEARING $202.62
Location: 14 Prev | Next Part: 1S409770 *Qty: 1 BEARING $274.32
Location: 15 Prev | Next Part: 1S409775 *Qty: 1 BEARING $36.63
Location: 16 Prev | Next Part: N10661601 *Qty: 2 SEAL RING $0.90
Location: 17 Prev | Next Part: N91094401 *Qty: 2 GASKET (SEE TABLE 409.02.00 - REF. 11) $7.82
Location: 18 Prev | Next Part: WHT000125 *Qty: 1 NUT $77.10
Location: 19 Prev | Next Part: 1S409297 *Qty: 1 SEAL RING $14.65
Location: 20 Prev | Next Part: N0123501 *Qty: 1 SEAL RING $5.62
Location: 21 Prev | Next Part: N90329301 *Qty: 1 SEAL RING $4.30
Location: 22 Prev | Next Part: N90832501 *Qty: 1 O-RING $1.65
Location: 26 Prev | Next Part: 1S409111 *Qty: 1 DIFFERENTIAL + BEVEL GEAR PAIR $2,716.60

* Quantity shown indicates the number of pieces used in the diagram.
