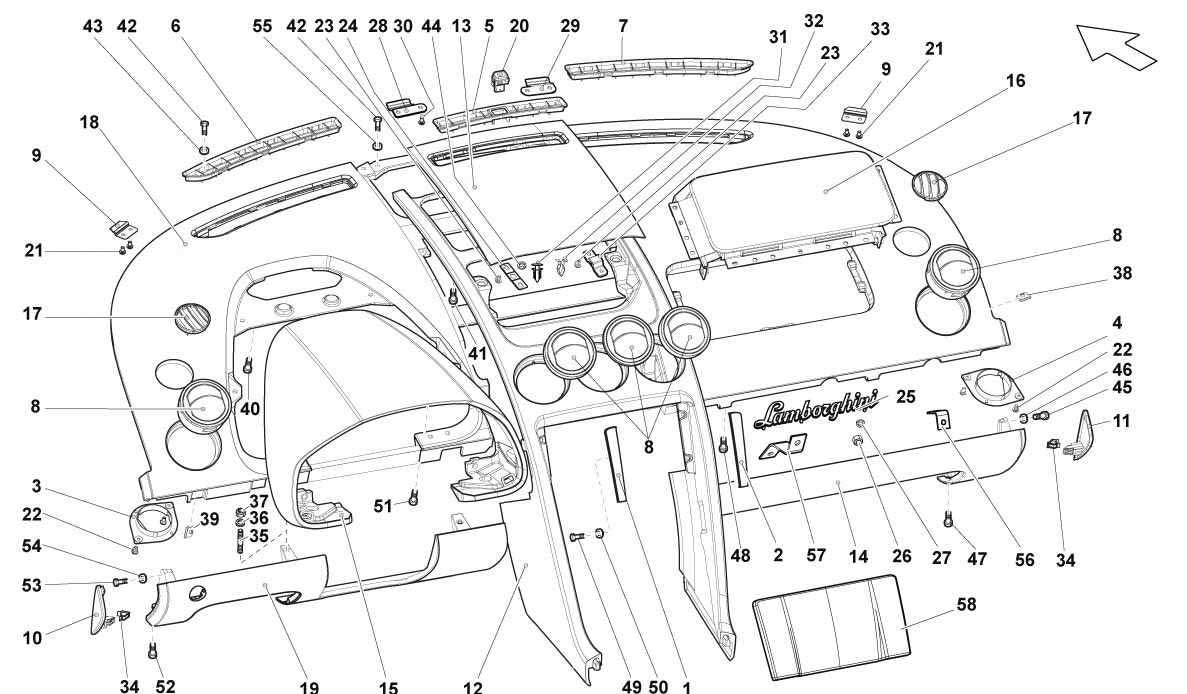

DASHBOARD

Go to Split View

DASHBOARD

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: *Qty: 0 ? PROVIDE VIN) PREDISPOSITION FOR GLOVE COMPERTMENT - PROVIDE VIN) Call
Location: 1 Prev | Next Part: 400035231 *Qty: 1 LID $36.28
Location: 2 Prev | Next Part: 400035232 *Qty: 1 LID $36.28
Location: 3 Prev | Next Part: 400819475A *Qty: 1 FRAME $21.66
Location: 4 Prev | Next Part: 400819476A *Qty: 1 FRAME $21.66
Location: 5 Prev | Next Part: 400819635 *Qty: 1 GRID $50.00
Location: 6 Prev | Next Part: 400819793 *Qty: 1 LEFT AIR INTAKE $50.60
Location: 7 Prev | Next Part: 400819794 *Qty: 1 RIGHT AIR INTAKE $49.04
Location: 8 Prev | Next Part: 400820901 *Qty: 5 AIR VENT (UNTIL THE VIN 6LA03941) $217.12
Location: 8 Prev | Next Part: 400820901B *Qty: 5 AIR VENT (FROM VIN 6LA03942) $80.49
Location: 8 Prev | Next Part: 400820901A *Qty: 5 AIR VENT (DECORATIVE INSERTS - SUPPLY VIN - UNTIL THE VIN 6LA03941) $620.68
Location: 8 Prev | Next Part: 400820901C *Qty: 5 AIR VENT (DECORATIVE INSERTS - SUPPLY VIN - FROM VIN 6LA03942) $620.68
Location: 9 Prev | Next Part: 400857087 *Qty: 2 CLAMP $10.47
Location: 10 Prev | Next Part: 400858033 *Qty: 1 LEFT DASHBOARD ASSEMBLY (LEATHER UPHOLSTERY ? SUPPLY VIN $239.06
Location: 11 Prev | Next Part: 400858034 *Qty: 1 RIGHT DASHBOARD ASSEMBLY (LEATHER UPHOLSTERY ? SUPPLY VIN) $239.06
Location: 12 Prev | Next Part: 400863241C *Qty: 1 MIDDLE PART OF DASHBOARD (LEATHER UPHOLSTERY ? SUPPLY VIN) $3,900.51
Location: 13 Prev | Next Part: 400863276E *Qty: 1 COVER (LEATHER UPHOLSTERY ? SUPPLY VIN) $3,895.62
Location: 14 Prev | Next Part: 401857504G *Qty: 1 LOWER DASHBOARD ASSEMBLY (PERFORATED LEATHER INTERIOR - SUPPLY VIN) $1,737.64
Location: 14 Prev | Next Part: 401857504E *Qty: 1 LOWER DASHBOARD ASSEMBLY (LEATHER UPHOLSTERY ? SUPPLY VIN) $1,737.64
Location: 14 Prev | Next Part: 401857504F *Qty: 1 LOWER DASHBOARD ASSEMBLY (ALCANTARA UPHOLSTERY ? PROVIDE VIN) $1,737.64
Location: 15 Prev | Next Part: 401858277 *Qty: 1 DASHBOARD ASSEMBLY (LEFT-HAND DRIVE LEATHER UPHOLSTERY ? PROVIDE VIN) $3,017.93
Location: 16 Prev | Next Part: 401880202A *Qty: 1 PASSENGER AIRBAG LID (LEFT-HAND DRIVE LEATHER UPHOLSTERY ? PROVIDE VIN) $1,482.68
Location: 17 Prev | Next Part: 1J0819705A *Qty: 2 AIR VENT $0.90
Location: 18 Prev | Next Part: 401857041E *Qty: 1 DASHBOARD ASSEMBLY (LEFT-HAND DRIVE LEATHER UPHOLSTERY ? PROVIDE VIN) $11,779.89
Location: 18 Prev | Next Part: 401857041F *Qty: 1 DASHBOARD ASSEMBLY (WITH LOGO - LEATHER INTERIOR - SUPPLY VIN) $11,784.08
Location: 19 Prev | Next Part: 401858793J *Qty: 1 DASHBOARD ASSEMBLY (ALCANTARA INTERIOR - WITHOUT GLOVE COMPERTMENT ? PROVIDE VIN) $2,087.06
Location: 19 Prev | Next Part: 401858793E *Qty: 1 DASHBOARD ASSEMBLY (ALCANTARA UPHOLSTERY WITH PREDISPOSITION FOR GLOVE COMPERTMENT - PROVIDE VIN) $2,087.06
Location: 19 Prev | Next Part: 401858793H *Qty: 1 DASHBOARD ASSEMBLY (LEATHER INTERIOR - WITHOUT GLOVE COMPERTMENT ? PROVIDE VIN) $2,087.06
Location: 19 Prev | Next Part: 401858793Q *Qty: 1 E-GEAR DASHBOARD ASSEMBLY (PERFORATED LEATHER INTERIOR WITH PREDISPOSITION FOR GLOVE COMPERTMENT - PROVIDE VIN) $2,087.06
Location: 19 Prev | Next Part: 401858793D *Qty: 1 DASHBOARD ASSEMBLY (LEATHER UPHOLSTERY WITH PREDISPOSITION FOR GLOVE COMPERTMENT - PROVIDE VIN) $2,087.06
Location: 19 Prev | Next Part: 401858793N *Qty: 1 E-GEAR DASHBOARD ASSEMBLY (PERFORATED LEATHER INTERIOR - WITHOUT GLOVE COMPERTMENT ? PROVIDE VIN) $2,087.06
Location: 19 Prev | Next Part: 401858793M *Qty: 1 DASHBOARD ASSEMBLY (PERFORATED LEATHER INTERIOR - WITHOUT GLOVE COMPERTMENT ? PROVIDE VIN) $2,087.06
Location: 19 Prev | Next Part: 401858793F *Qty: 1 E-GEAR DASHBOARD ASSEMBLY (LEATHER UPHOLSTERY WITH PREDISPOSITION FOR GLOVE COMPERTMENT - PROVIDE VIN) $2,087.06
Location: 19 Prev | Next Part: 401858793P *Qty: 1 DASHBOARD ASSEMBLY (PERFORATED LEATHER INTERIOR WITH PREDISPOSITION FOR GLOVE COMPERTMENT - PROVIDE VIN) $2,087.06
Location: 19 Prev | Next Part: 401858793K *Qty: 1 E-GEAR DASHBOARD ASSEMBLY (LEATHER INTERIOR - WITHOUT GLOVE COMPERTMENT ? PROVIDE VIN) $2,087.06
Location: 19 Prev | Next Part: 401858793L *Qty: 1 E-GEAR DASHBOARD ASSEMBLY (ALCANTARA INTERIOR - WITHOUT $2,087.06
Location: 20 Prev | Next Part: 4E0907539 *Qty: 1 SOLAR SENSOR $40.46
Location: 21 Prev | Next Part: N10406602 *Qty: 4 SCREW $0.90
Location: 22 Prev | Next Part: N90562401 *Qty: 4 SCREW $1.41
Location: 23 Prev | Next Part: N10406602 *Qty: 4 SCREW M5X8.0 $0.90
Location: 24 Prev | Next Part: 400857955B *Qty: 2 BRACKET (UNTIL THE VIN 6LA02666) $6.25
Location: 25 Prev | Next Part: 400853886 *Qty: 1 LOGO $374.69
Location: 26 Prev | Next Part: N0110022 *Qty: 4 NUT $1.34
Location: 27 Prev | Next Part: 8410311 *Qty: 4 WASHER $2.50
Location: 28 Prev | Next Part: 400864287A *Qty: 1 LH BRACKET $4.84
Location: 29 Prev | Next Part: 400864288A *Qty: 1 RH BRACKET $4.84
Location: 30 Prev | Next Part: N90562401 *Qty: 4 SCREW 3.5X10.0 $1.41
Location: 31 Prev | Next Part: 400867299 *Qty: 2 FASTENER LYS FUSION- YELLOW (UNTIL THE VIN 6LA02666) $0.90
Location: 32 Prev | Next Part: 400868563A *Qty: 2 CLIP (FROM VIN 6LA02667) $31.78
Location: 33 Prev | Next Part: 400857955C *Qty: 2 BRACKET (FROM VIN 6LA02667) $0.90
Location: 34 Prev | Next Part: 400857117 *Qty: 2 CLIP $0.90
Location: 35 Prev | Next Part: WHT000777 *Qty: 2 STUD BOLT M5X25 $8.44
Location: 36 Prev | Next Part: WHT000778 *Qty: 2 WASHER $0.90
Location: 37 Prev | Next Part: WHT000760 *Qty: 2 NUT M5 $0.90
Location: 38 Prev | Next Part: N90327501 *Qty: 2 CLIP $0.90
Location: 39 Prev | Next Part: N90327501 *Qty: 2 CLIP $0.90
Location: 40 Prev | Next Part: N10406602 *Qty: 2 SCREW M5X8 $0.90
Location: 41 Prev | Next Part: N90944603 *Qty: 6 SCREW M5X12 $0.90
Location: 42 Prev | Next Part: N10544301 *Qty: 4 SCREW M5X25 $0.90
Location: 43 Prev | Next Part: N01154012 *Qty: 2 WASHER $0.90
Location: 44 Prev | Next Part: WHT000778 *Qty: 8 WASHER $0.90
Location: 45 Prev | Next Part: 8700508 *Qty: 2 SCREW M5X14 $0.90
Location: 46 Prev | Next Part: WHT000778 *Qty: 4 WASHER $0.90
Location: 47 Prev | Next Part: N91053801 *Qty: 4 SCREW $0.90
Location: 48 Prev | Next Part: N90944603 *Qty: 2 SCREW M5X12 $0.90
Location: 49 Prev | Next Part: N90986801 *Qty: 4 SCREW ST4.2X13.0 $0.90
Location: 50 Prev | Next Part: N01152318 *Qty: 8 WASHER $0.90
Location: 51 Prev | Next Part: N90944603 *Qty: 6 SCREW M5X12 $0.90
Location: 52 Prev | Next Part: N91053801 *Qty: 4 SCREW $0.90
Location: 53 Prev | Next Part: 8700508 *Qty: 2 SCREW M5X14 $0.90
Location: 54 Prev | Next Part: WHT000778 *Qty: 4 WASHER $0.90
Location: 55 Prev | Next Part: N0116946 *Qty: 2 WASHER $0.90
Location: 56 Prev | Next Part: *Qty: 2 BRACKET (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 57 Prev | Next Part: *Qty: 1 BRACKET (VALID FOR A DIFFERENT MODEL YEAR) Call

* Quantity shown indicates the number of pieces used in the diagram.
