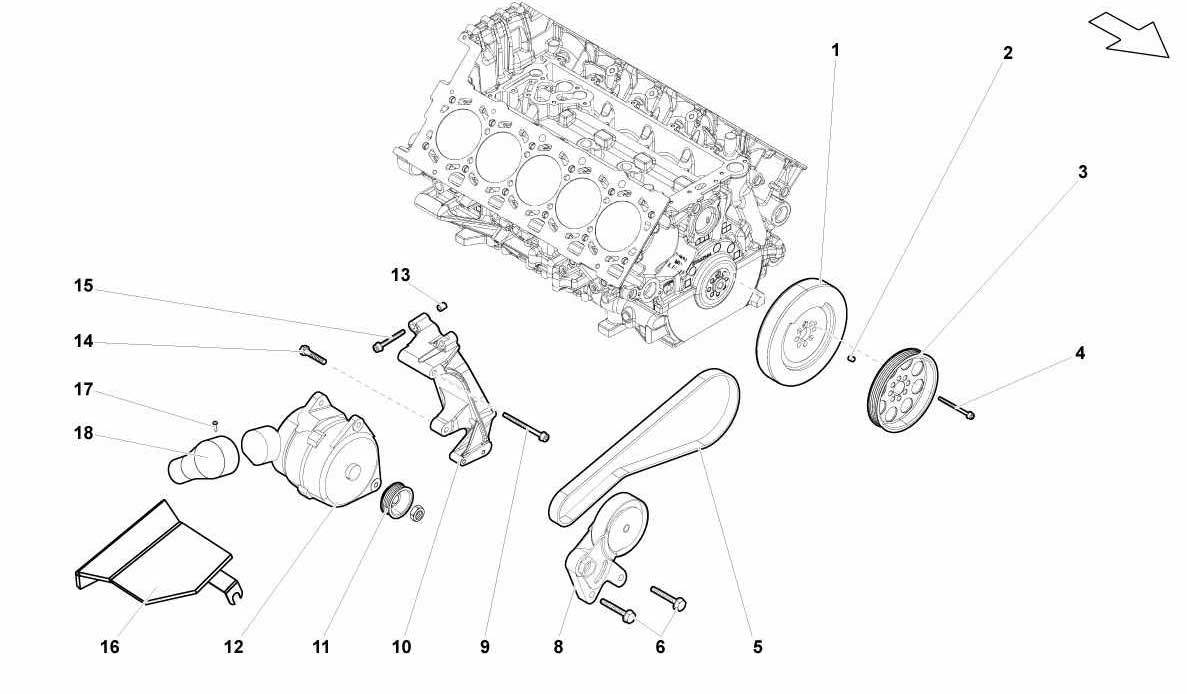

ALTERNATOR AND STRAPS

Go to Split View

ALTERNATOR AND STRAPS

Location Part # Quantity* Description Price Add To Cart
1 7L105251L 1 DAMPER Unavailable
2 78260817 3 BUSHING Unavailable
3 7L105253B 1 PULLEY Unavailable
4 N10572201 8 SCREW Unavailable
5 7L903137C 1 BELT Unavailable
6 N0903164 2 SCREW Unavailable
8 79903133E 1 CHAIN TIGHTENER Unavailable
9 N90478401 1 SCREW Unavailable
10 7L903805F 1 SUPPORT Unavailable
11 7L903165D 1 PULLEY Unavailable
12 77903015P 1 ALTERNATOR (150 A) Unavailable
13 77115143 2 BUSHING Unavailable
14 N90941701 2 SCREW Unavailable
15 N91025301 2 SCREW Unavailable
16 7L145325 1 HEAT SHIELD Unavailable
17 N90986801 2 SCREW Unavailable
18 7L903791 1 CONNECTOR Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
