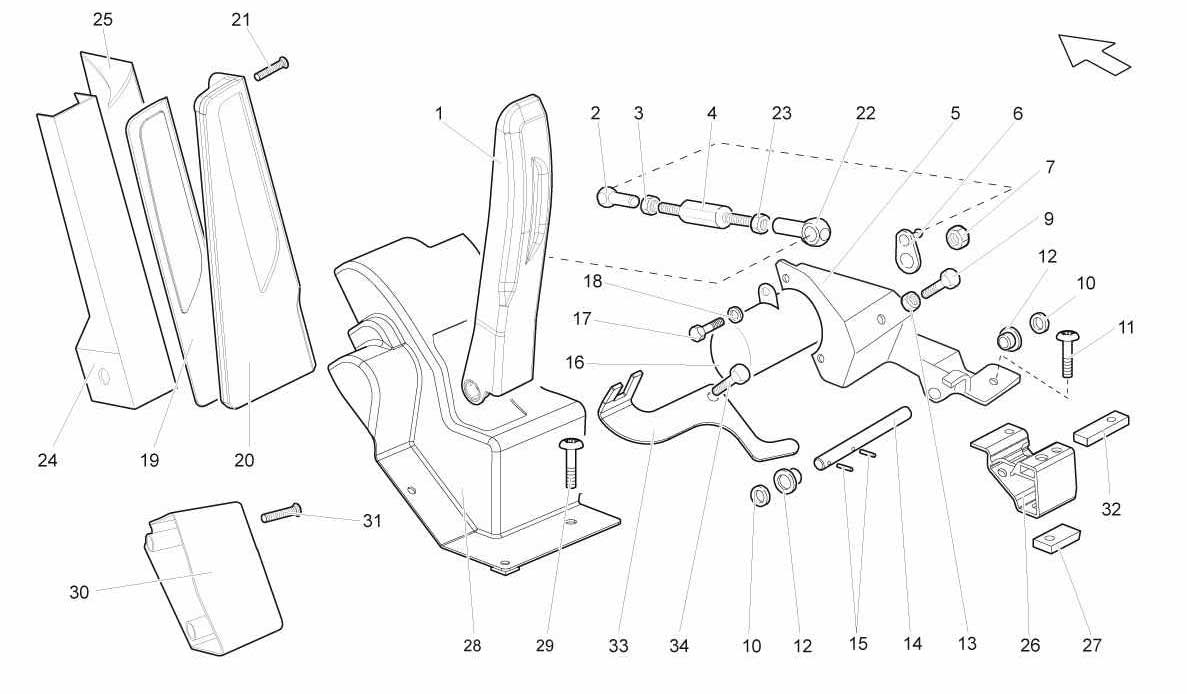

ACCELERATOR PEDAL (E-GEAR)

Go to Split View

ACCELERATOR PEDAL (E-GEAR)

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 400721507A *Qty: 1 ACCELERATOR PEDAL $129.21
Location: 2 Prev | Next Part: 410721214 *Qty: 1 BALL JOINT COUPLING (LEFT HAND THREAD) $17.53
Location: 3 Prev | Next Part: 8200504 *Qty: 2 NUT (LEFT HAND THREAD) $15.13
Location: 4 Prev | Next Part: 400721743 *Qty: 1 SHAFT $37.39
Location: 5 Prev | Next Part: 400721651 *Qty: 1 ACCELERATOR PEDAL $467.02
Location: 6 Prev | Next Part: 400721728 *Qty: 1 LEVER $31.88
Location: 7 Prev | Next Part: N0150825 *Qty: 1 NUT $0.90
Location: 9 Prev | Next Part: N0103351 *Qty: 1 SCREW M8X35 $0.90
Location: 10 Prev | Next Part: WHT000697 *Qty: 2 WASHER 13X22X0-3 $0.90
Location: 11 Prev | Next Part: N91000201 *Qty: 6 SCREW M8X25 $0.90
Location: 12 Prev | Next Part: 400721543 *Qty: 2 BUSHING $21.36
Location: 13 Prev | Next Part: N01100830 *Qty: 1 NUT $1.49
Location: 14 Prev | Next Part: 400721157 *Qty: 1 JOURNAL $25.55
Location: 15 Prev | Next Part: 8900204 *Qty: 2 PIN $0.90
Location: 16 Prev | Next Part: 400907475 *Qty: 1 POTENTIOMETER $333.99
Location: 17 Prev | Next Part: 8700614 *Qty: 2 SCREW M6X16 $0.90
Location: 18 Prev | Next Part: 8400628 *Qty: 2 WASHER 6X12X1 $0.90
Location: 19 Prev | Next Part: 401864431 *Qty: 1 RUBBER $16.98
Location: 20 Prev | Next Part: 401864419B *Qty: 1 FOOTREST PEDAL COVER $27.98
Location: 21 Prev | Next Part: N10648801 *Qty: 2 SCREW M6X80 $2.88
Location: 22 Prev | Next Part: 400721214A *Qty: 1 BALL JOINT COUPLING $42.36
Location: 23 Prev | Next Part: 8200501 *Qty: 2 NUT M5 $0.90
Location: 24 Prev | Next Part: 401864523A *Qty: 1 SUPPORT $42.71
Location: 25 Prev | Next Part: 401864431B *Qty: 1 COVER $66.34
Location: 26 Prev | Next Part: 400803427A *Qty: 1 U-BOLT $54.96
Location: 27 Prev | Next Part: 401803016A *Qty: 1 PLATE $63.54
Location: 28 Prev | Next Part: 401721585A *Qty: 1 ACCELERATOR COVER BOX $106.59
Location: 29 Prev | Next Part: N91000201 *Qty: 1 SCREW M8X25 $0.90
Location: 29 Prev | Next Part: N91032701 *Qty: 2 SCREW M6X20 $0.90
Location: 30 Prev | Next Part: *Qty: 0 FOOTREST PEDAL COVER (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 31 Prev | Next Part: *Qty: 0 SCREW M6X80 (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 32 Prev | Next Part: 400723325B *Qty: 1 PLATE $25.84
Location: 33 Prev | Next Part: 402971890 *Qty: 1 BRACKET $29.88
Location: 34 Prev | Next Part: N90847901 *Qty: 1 SCREW M6X15 $0.90

* Quantity shown indicates the number of pieces used in the diagram.
