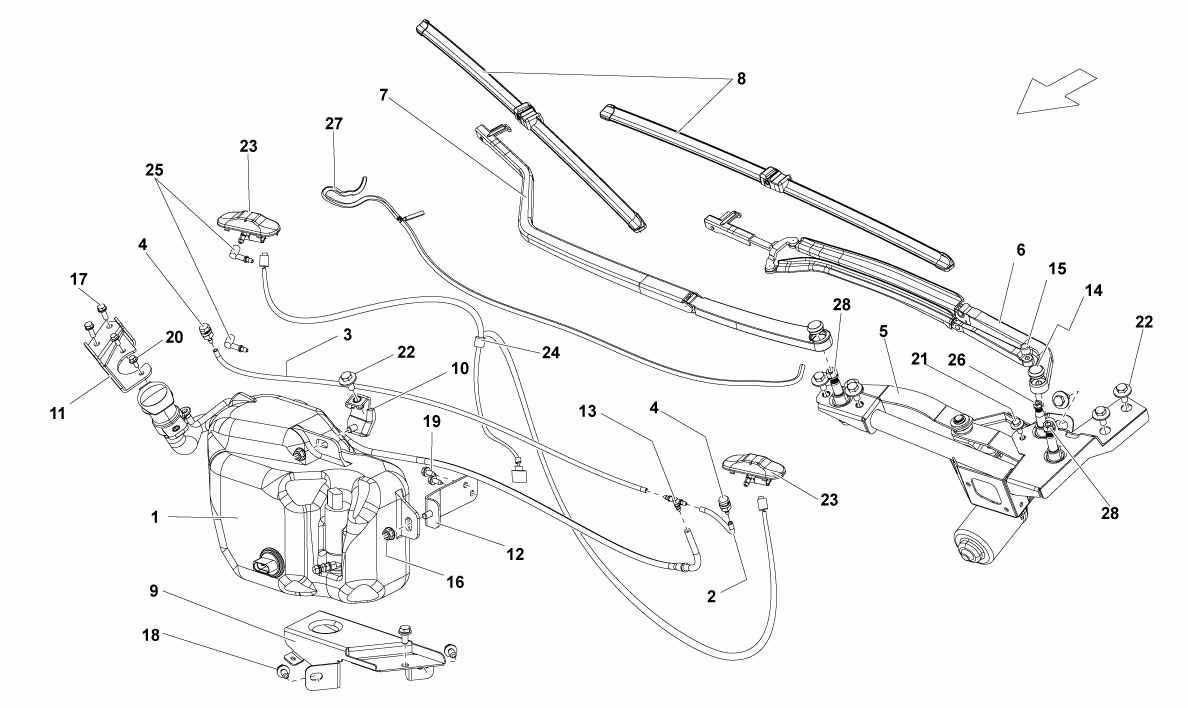

WINDSHIELD WIPER

Go to Split View

WINDSHIELD WIPER

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 400955448A *Qty: 1 WASHER RESERVOIR ASSEMBLY $267.44
Location: 2 Prev | Next Part: *Qty: 0 PIPE (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 3 Prev | Next Part: *Qty: 0 PIPE (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 4 Prev | Next Part: *Qty: 0 NOZZLE (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 5 Prev | Next Part: 401955023A *Qty: 1 LINKAGE GEARMOTOR $682.17
Location: 6 Prev | Next Part: 401955407B *Qty: 1 LH WIPER ARM $332.04
Location: 7 Prev | Next Part: 401955408B *Qty: 1 RH WIPER ARM $135.79
Location: 8 Prev | Next Part: 401955425C *Qty: 2 WINDSCREEN WIPER Call
Location: 9 Prev | Next Part: 401955458A *Qty: 1 BRACKET $77.42
Location: 10 Prev | Next Part: 401955476A *Qty: 1 BRACKET $28.69
Location: 11 Prev | Next Part: 401955775A *Qty: 1 SUPPORT $35.86
Location: 12 Prev | Next Part: 401955932 *Qty: 1 BRACKET $18.92
Location: 13 Prev | Next Part: *Qty: 0 CONNECTOR (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 14 Prev | Next Part: 1J0955205A *Qty: 2 PLUG $4.63
Location: 15 Prev | Next Part: 400955440 *Qty: 1 CAP $2.25
Location: 16 Prev | Next Part: N02300313 *Qty: 2 NUT M8 $0.90
Location: 17 Prev | Next Part: N0902424 *Qty: 2 SCREW M6X18 $0.90
Location: 18 Prev | Next Part: N10049308 *Qty: 3 SCREW M8X20 $1.04
Location: 19 Prev | Next Part: N10082911 *Qty: 2 SCREW M6X16 $0.90
Location: 20 Prev | Next Part: N10338302 *Qty: 2 SCREW M5X12 $0.90
Location: 21 Prev | Next Part: N90847903 *Qty: 1 SCREW M6X15 $0.90
Location: 22 Prev | Next Part: N90847903 *Qty: 1 SCREW M6X15 $0.90
Location: 22 Prev | Next Part: N91079301 *Qty: 3 SCREW M8X16 $0.90
Location: 22 Prev | Next Part: WHT002225A *Qty: 3 SCREW M8X16 $1.09
Location: 23 Prev | Next Part: 5M0955986C *Qty: 2 NOZZLE (HEATED) $32.33
Location: 23 Prev | Next Part: 5M0955985C *Qty: 2 NOZZLE $11.99
Location: 24 Prev | Next Part: 400971163B *Qty: 1 WIRING HARNESS $70.13
Location: 25 Prev | Next Part: 1J0955665 *Qty: 2 CONNECTOR $1.49
Location: 26 Prev | Next Part: N02214813 *Qty: 1 NUT M6 $0.90
Location: 27 Prev | Next Part: 400955972 *Qty: 1 PIPE $43.37
Location: 28 Prev | Next Part: N90226404 *Qty: 2 NUT M8 $0.90

* Quantity shown indicates the number of pieces used in the diagram.
