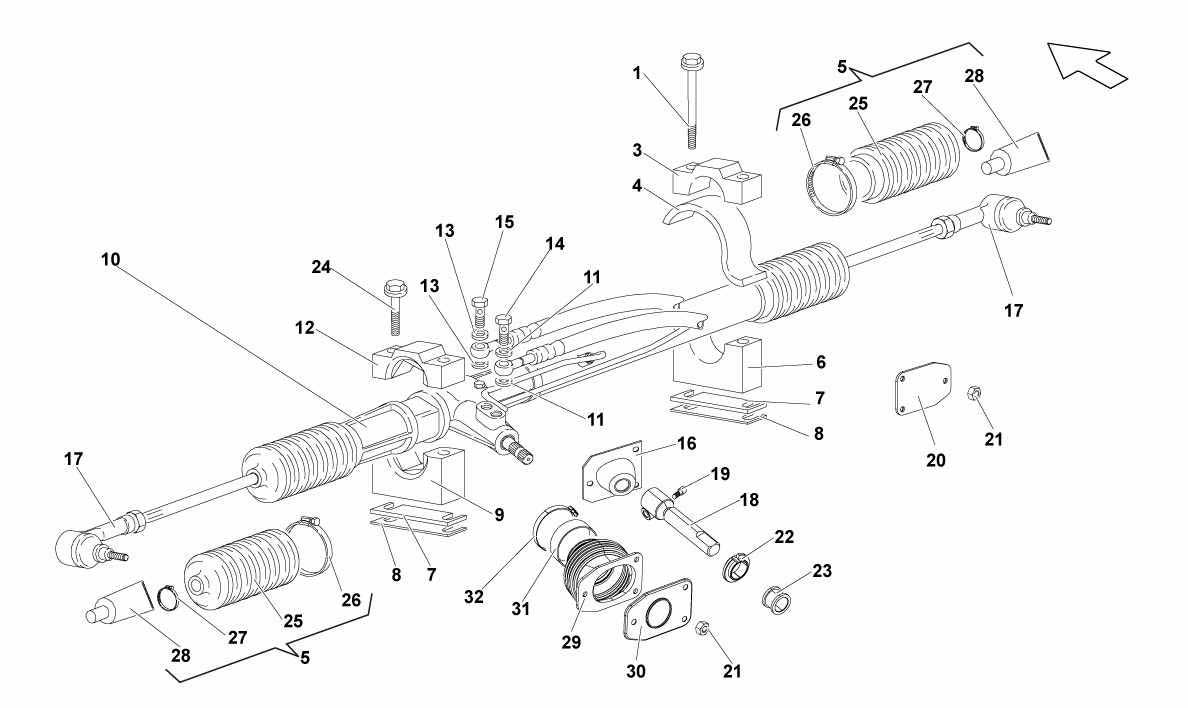

STEERING RACK

Go to Split View

STEERING RACK

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: N10570202 *Qty: 2 SCREW BM10X90X45 $5.04
Location: 3 Prev | Next Part: 423422874 *Qty: 1 RIGHT SUPPORT $67.79
Location: 4 Prev | Next Part: 420422850 *Qty: 1 RUBBER SHIM $7.28
Location: 5 Prev | Next Part: *Qty: 2 BOOT KIT (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 6 Prev | Next Part: 423422761 *Qty: 1 RIGHT SUPPORT $60.11
Location: 7 Prev | Next Part: *Qty: 4 1MM ADJUSTMENT SHIM (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 8 Prev | Next Part: *Qty: 12 0.5MM ADJUSTMENT SHIM (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 9 Prev | Next Part: *Qty: 0 LEFT SUPPORT (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 10 Prev | Next Part: 401422061J *Qty: 1 POWER STEERING RACK $4,490.52
Location: 11 Prev | Next Part: N0138487 *Qty: 2 WASHER A16X22 $0.90
Location: 12 Prev | Next Part: *Qty: 0 LEFT SUPPORT (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 13 Prev | Next Part: N0138495 *Qty: 2 WASHER A14X20 $0.90
Location: 14 Prev | Next Part: N90467405 *Qty: 1 SCREW $4.41
Location: 15 Prev | Next Part: 8E0422529 *Qty: 1 CHECK VALVE $7.19
Location: 16 Prev | Next Part: *Qty: 0 GASKET (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 17 Prev | Next Part: *Qty: 0 BALL JOINT COUPLING (SEE TABLE 407.05.00 REF. 32 ? CAN BE SOLD SEPARATELY) Call
Location: 18 Prev | Next Part: 400419753C *Qty: 1 SLEEVE $274.48
Location: 19 Prev | Next Part: N10518405 *Qty: 1 SCREW M8X30 $0.91
Location: 20 Prev | Next Part: 400419780 *Qty: 1 GASKET $34.64
Location: 21 Prev | Next Part: N01508213 *Qty: 6 NUT M6 $0.90
Location: 22 Prev | Next Part: *Qty: 0 BUSHING (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 23 Prev | Next Part: *Qty: 0 BUSHING (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 24 Prev | Next Part: N90956402 *Qty: 2 SCREW AM10X45 $1.64
Location: 25 Prev | Next Part: 420419831 *Qty: 2 BOOT $26.29
Location: 26 Prev | Next Part: N10728901 *Qty: 2 CLAMP $8.35
Location: 27 Prev | Next Part: 6Q0423933B *Qty: 2 CLAMP $1.98
Location: 28 Prev | Next Part: AOF0630000 *Qty: 1 GREASE (250 G) Call
Location: 29 Prev | Next Part: 400422326A *Qty: 1 GASKET $40.15
Location: 30 Prev | Next Part: 400422268 *Qty: 1 PLATE $23.20
Location: 31 Prev | Next Part: 420422389 *Qty: 1 GASKET $10.09
Location: 32 Prev | Next Part: N10279501 *Qty: 1 CLAMP $9.43

* Quantity shown indicates the number of pieces used in the diagram.
