REAR HOOD

Go to Split View

REAR HOOD

in cart

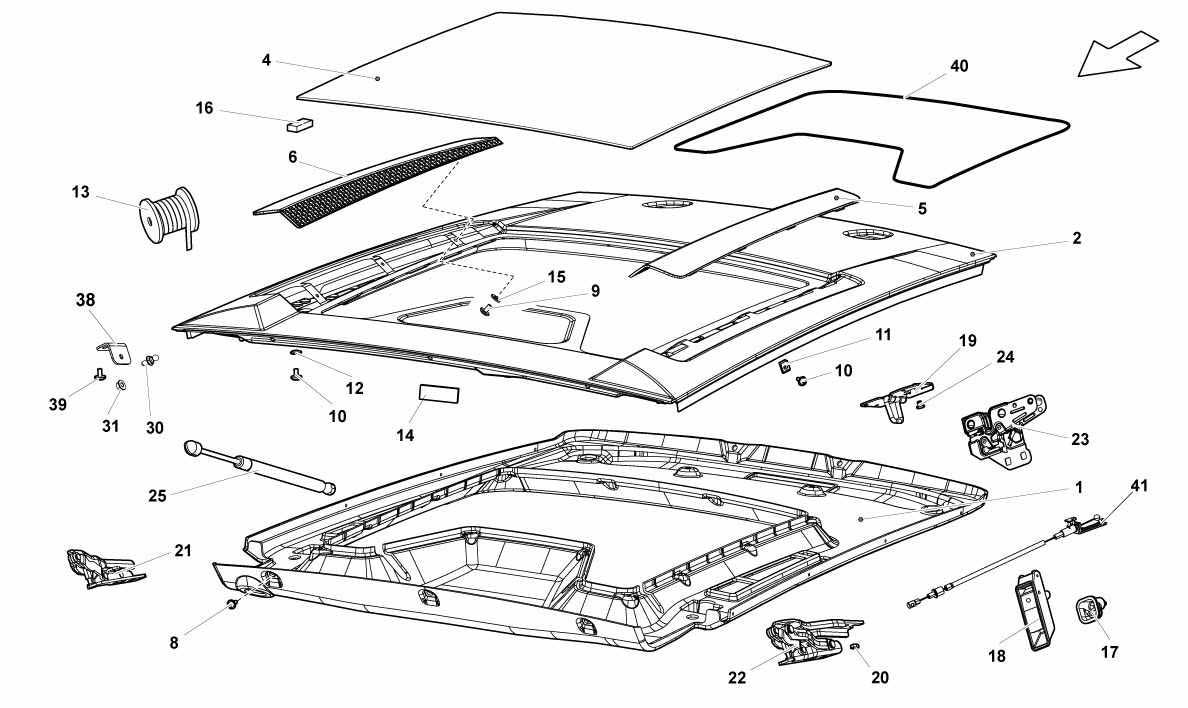

Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: *Qty: 0 ENGINE HOOD OUTER COVER (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 2 Prev | Next Part: 408827023D *Qty: 1 TRANSPARENT ENGINE HOOD (TRANSPARENT ENGINE HOOD) $10,797.64
Location: 4 Prev | Next Part: 408827631A *Qty: 1 ENGINE HOOD GLASS (REAR HOOD GLASS) $643.49
Location: 5 Prev | Next Part: 408827949 *Qty: 1 OUTLET GRID (FOR CARS WITH TRANSPARENT ENGINE HOOD) $527.95
Location: 6 Prev | Next Part: 408827950 *Qty: 1 OUTLET GRID (FOR CARS WITH TRANSPARENT ENGINE HOOD) $527.95
Location: 8 Prev | Next Part: *Qty: 0 SCREW (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 9 Prev | Next Part: N91068201 *Qty: 6 SCREW M4X10 $0.90
Location: 10 Prev | Next Part: *Qty: 0 SCREW (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 11 Prev | Next Part: *Qty: 0 CLIP (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 12 Prev | Next Part: *Qty: 0 WASHER (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 13 Prev | Next Part: *Qty: 1 GASKET (CANNOT BE SOLD SEPARATELY) Call
Location: 14 Prev | Next Part: *Qty: 0 GASKET (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 15 Prev | Next Part: WHT000778 *Qty: 6 WASHER $0.90
Location: 16 Prev | Next Part: 400845235A *Qty: 4 SPACER $3.80
Location: 17 Prev | Next Part: *Qty: 1 REAR BUMPER FAIRLEAD (SEE TABLE 827.01.00 - SEE REF. 2) Call
Location: 18 Prev | Next Part: *Qty: 1 HOOD OPENING HANDLE (SEE TABLE 827.01.00 - SEE REF. 3) Call
Location: 19 Prev | Next Part: *Qty: 2 CLOSING BRACKET (SEE TABLE 827.01.00 - SEE REF. 4) Call
Location: 20 Prev | Next Part: *Qty: 4 NUT (SEE TABLE 827.01.00 - SEE REF. 34) Call
Location: 21 Prev | Next Part: *Qty: 1 HINGE, RH (SEE TABLE 827.01.00 - SEE REF. 13) Call
Location: 22 Prev | Next Part: *Qty: 1 HINGE, LH (SEE TABLE 827.01.00 - SEE REF. 12) Call
Location: 23 Prev | Next Part: *Qty: 1 HOOD LOCK (SEE TABLE 827.01.00 - SEE REF. 14) Call
Location: 24 Prev | Next Part: *Qty: 2 SCREW (SEE TABLE 827.01.00 - SEE REF. 32) Call
Location: 25 Prev | Next Part: 400827552A *Qty: 1 GAS FILLED SPRING $80.00
Location: 30 Prev | Next Part: 895827439B *Qty: 1 JOURNAL $3.56
Location: 31 Prev | Next Part: N0150839 *Qty: 1 NUT $0.90
Location: 38 Prev | Next Part: 400827815 *Qty: 1 BRACKET $82.20
Location: 39 Prev | Next Part: N90737105 *Qty: 2 SCREW M6X12 $1.50
Location: 40 Prev | Next Part: *Qty: 1 GASKET (VALID FOR A DIFFERENT MODEL) Call
Location: 41 Prev | Next Part: *Qty: 1 ENGINE HOOD OPENING CABLE (SEE TABLE 827.01.00 - SEE REF. 11) Call

* Quantity shown indicates the number of pieces used in the diagram.
