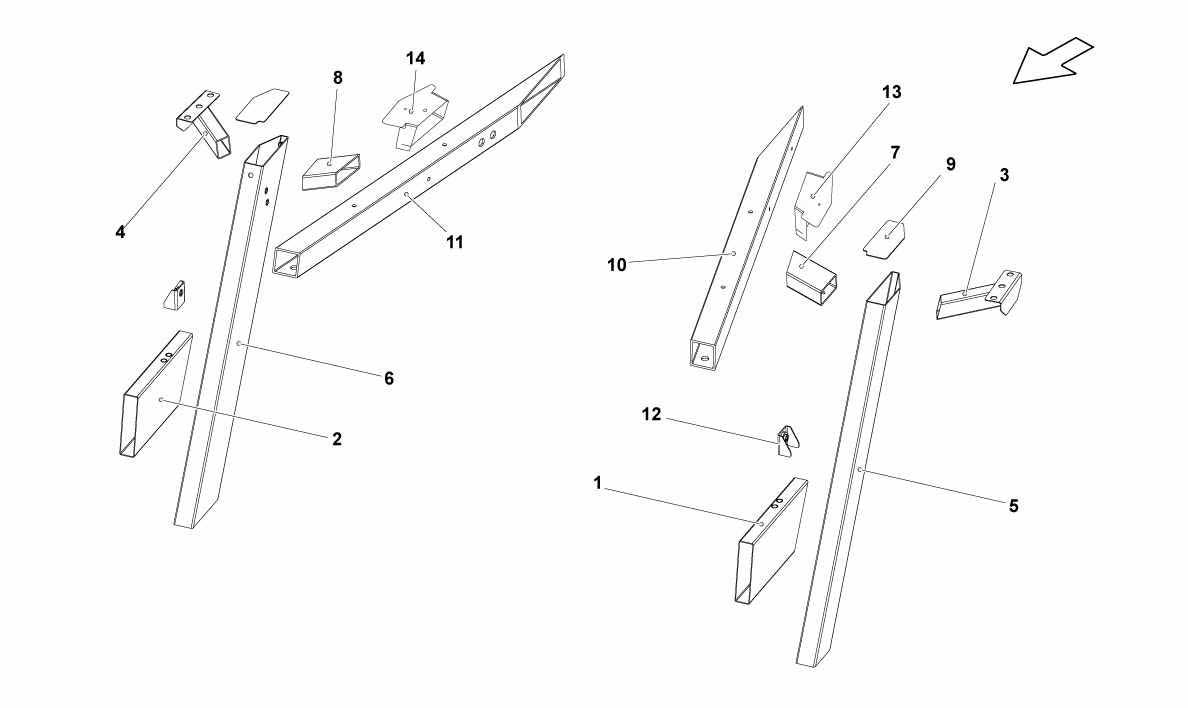

REAR FRAME ELEMENTS

Go to Split View

REAR FRAME ELEMENTS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 400803503A *Qty: 1 SIDE MEMBER $735.94
Location: 2 Prev | Next Part: 400803504A *Qty: 1 SIDE MEMBER $746.31
Location: 3 Prev | Next Part: 400810229B *Qty: 1 CARRIER PART $232.65
Location: 4 Prev | Next Part: 400810230B *Qty: 1 CARRIER PART $232.65
Location: 5 Prev | Next Part: 400809239 *Qty: 1 C A-PILLAR $435.30
Location: 6 Prev | Next Part: 400809240 *Qty: 1 C A-PILLAR $435.30
Location: 7 Prev | Next Part: 400809261 *Qty: 1 REINF.PILLAR C $98.90
Location: 8 Prev | Next Part: 400809262 *Qty: 1 REINF.PILLAR C $98.90
Location: 9 Prev | Next Part: 400809645 *Qty: 2 LH SHEET $73.73
Location: 10 Prev | Next Part: 400810243A *Qty: 1 BRACKET $421.66
Location: 11 Prev | Next Part: 400810244A *Qty: 1 BRACKET $499.89
Location: 12 Prev | Next Part: 400813891 *Qty: 2 FIXING ANGLE $84.94
Location: 13 Prev | Next Part: *Qty: 1 CONNECTING PIECE (VALID FOR A DIFFERENT MODEL) Call
Location: 14 Prev | Next Part: *Qty: 1 CONNECTING PIECE (VALID FOR A DIFFERENT MODEL) Call

* Quantity shown indicates the number of pieces used in the diagram.
