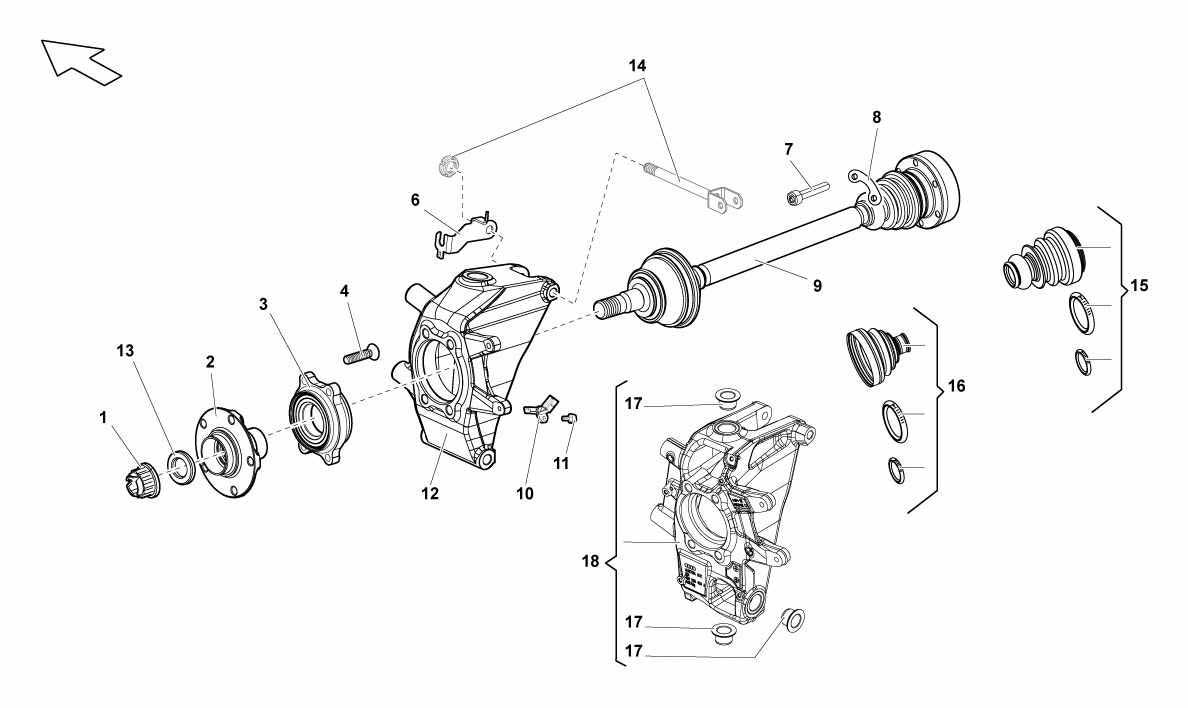

REAR DRIVE SHAFT

Go to Split View

REAR DRIVE SHAFT

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 7L0407396 *Qty: 2 NUT M24 $12.00
Location: 2 Prev | Next Part: 400501652 *Qty: 2 HUB $291.84
Location: 3 Prev | Next Part: 4E0407625D *Qty: 2 BEARING $163.22
Location: 4 Prev | Next Part: WHT000237A *Qty: 8 SCREW M12X45 $4.80
Location: 6 Prev | Next Part: *Qty: 0 BRACKET (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 7 Prev | Next Part: N10667901 *Qty: 12 SCREW M10X55 $2.73
Location: 8 Prev | Next Part: 7L0407357B *Qty: 6 PLATE $1.24
Location: 9 Prev | Next Part: 420501203A *Qty: 1 LH REAR OMOKINETIC DRIVE SHAFT $1,132.65
Location: 9 Prev | Next Part: 420501204A *Qty: 1 RH REAR OMOKINETIC DRIVE SHAFT $1,132.65
Location: 12 Prev | Next Part: *Qty: 0 REAR HUB CARRIER (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 13 Prev | Next Part: 400501226 *Qty: 2 WASHER $38.11
Location: 14 Prev | Next Part: *Qty: 0 SCREW - NUT (SEE TABLE 505.06.00) Call
Location: 15 Prev | Next Part: *Qty: 0 KIT AXELSHAFT REAR INNER (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 16 Prev | Next Part: *Qty: 0 KIT AXELSHAFT REAR OUTER (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 17 Prev | Next Part: 420407171B *Qty: 6 BUSHING $19.18
Location: 18 Prev | Next Part: 420505433A *Qty: 1 REAR LEFT HUB CARRIER $542.62
Location: 18 Prev | Next Part: 420505434A *Qty: 1 REAR RIGHT HUB CARRIER $542.62

* Quantity shown indicates the number of pieces used in the diagram.
