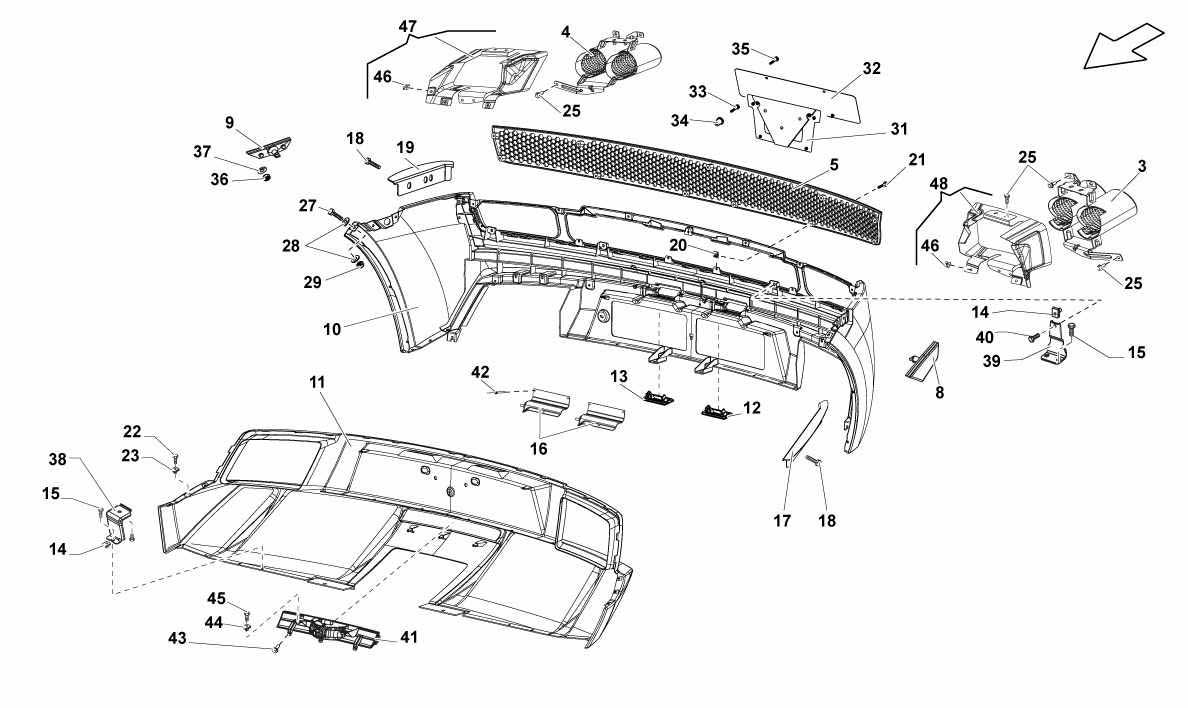

REAR BUMPERS

Go to Split View

REAR BUMPERS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 3 Prev | Next Part: *Qty: 1 LH TERMINAL (SEE TABLE 251.07.00) Call
Location: 4 Prev | Next Part: *Qty: 1 RH TERMINAL (SEE TABLE 251.07.00) Call
Location: 5 Prev | Next Part: 400807684A *Qty: 1 GRID $2,264.90
Location: 8 Prev | Next Part: 400945127B *Qty: 1 REAR LEFT SIDE MARKER (DARK SIDE INDICATOR LIGHTS) $38.66
Location: 9 Prev | Next Part: 400945128B *Qty: 1 REAR RIGHT SIDE MARKER (DARK SIDE INDICATOR LIGHTS) $69.63
Location: 10 Prev | Next Part: 400807497D *Qty: 1 REAR BUMPER ASSEMBLY $2,819.21
Location: 11 Prev | Next Part: 400807527F *Qty: 1 COVERING (STYLE PACK) $3,316.54
Location: 11 Prev | Next Part: 400807527D *Qty: 1 COVERING $2,055.44
Location: 12 Prev | Next Part: 8N0943021A *Qty: 1 LH LICENCE-PLATE LAMP $14.80
Location: 13 Prev | Next Part: 8N0943022A *Qty: 1 RH LICENCE-PLATE LAMP $14.80
Location: 14 Prev | Next Part: N90834301 *Qty: 6 CLIP $0.90
Location: 15 Prev | Next Part: N90807405 *Qty: 10 SCREW M5X18 $0.90
Location: 16 Prev | Next Part: 400943137A *Qty: 2 PROTECTION $79.43
Location: 17 Prev | Next Part: 400807131B *Qty: 1 LH BRACKET $23.50
Location: 18 Prev | Next Part: N90847903 *Qty: 6 SCREW M6X15 $0.90
Location: 19 Prev | Next Part: 400807132B *Qty: 1 RH BRACKET $23.50
Location: 20 Prev | Next Part: N90777702 *Qty: 11 CLIP $0.90
Location: 21 Prev | Next Part: N10680601 *Qty: 11 SCREW M5X30 $0.90
Location: 22 Prev | Next Part: N10584201 *Qty: 23 SCREW $0.90
Location: 23 Prev | Next Part: N0154487 *Qty: 23 CLIP $0.90
Location: 25 Prev | Next Part: N90898101 *Qty: 14 SCREW $1.74
Location: 27 Prev | Next Part: N10082911 *Qty: 2 SCREW $0.90
Location: 28 Prev | Next Part: 8400623 *Qty: 4 WASHER $0.90
Location: 29 Prev | Next Part: 8200614 *Qty: 2 NUT $0.90
Location: 31 Prev | Next Part: 400827120 *Qty: 1 LICENSE PLATE HOLDER $82.68
Location: 32 Prev | Next Part: 400807287 *Qty: 1 LICENSE PLATE HOLDER $82.68
Location: 33 Prev | Next Part: N10637302 *Qty: 2 SCREW M5X20 (M5X20) $1.04
Location: 34 Prev | Next Part: 400807995 *Qty: 2 RUBBER BUSHING $2.70
Location: 35 Prev | Next Part: *Qty: 2 SCREW M6X16 (VALID FOR A DIFFERENT MARKET) Call
Location: 36 Prev | Next Part: N0211963 *Qty: 4 NUT M5 $0.90
Location: 37 Prev | Next Part: WHT000778 *Qty: 4 WASHER $0.90
Location: 38 Prev | Next Part: 400807135 *Qty: 2 BRACKET $39.60
Location: 39 Prev | Next Part: 400807125 *Qty: 4 BRACKET $70.39
Location: 42 Prev | Next Part: N90931101 *Qty: 4 RIVET $0.90
Location: 44 Prev | Next Part: N91104501 *Qty: 2 CLIP $2.22
Location: 45 Prev | Next Part: N90807405 *Qty: 2 SCREW M5X18 $0.90
Location: 46 Prev | Next Part: N10433701 *Qty: 6 CLIP $0.90
Location: 47 Prev | Next Part: 400825720 *Qty: 1 RH INSULATION $313.52
Location: 48 Prev | Next Part: 400825719 *Qty: 1 LH INSULATION $313.52

* Quantity shown indicates the number of pieces used in the diagram.
