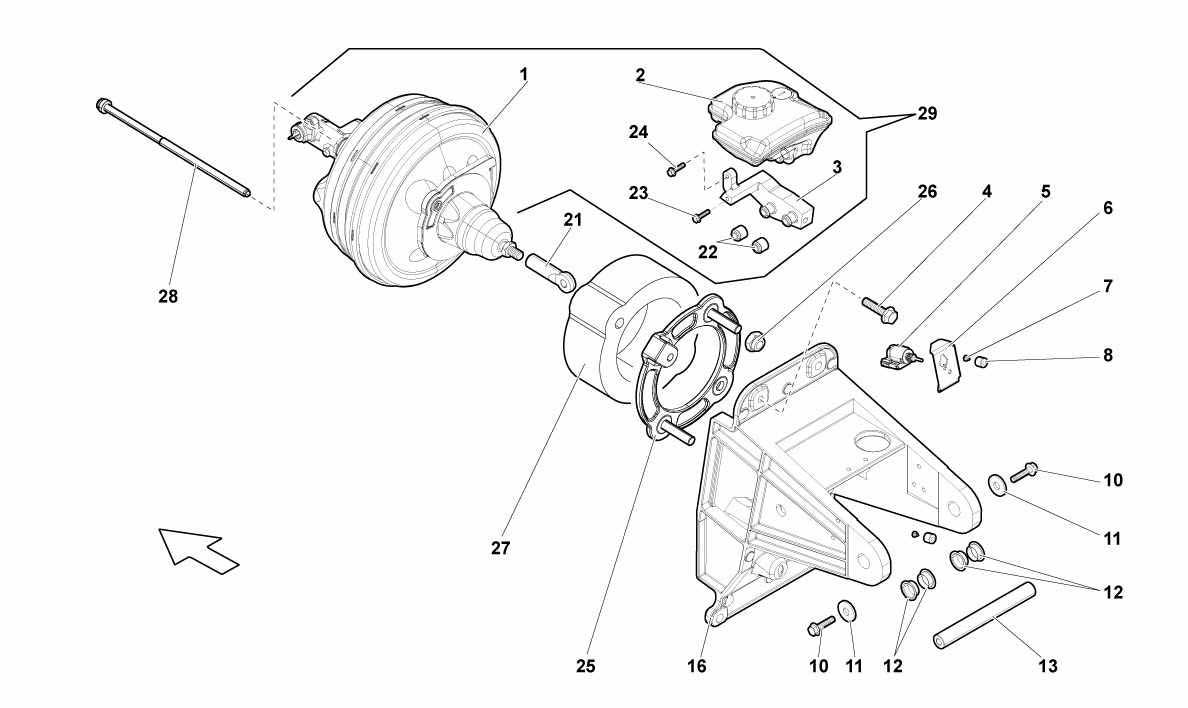

POWER BRAKE (E-GEAR)

Go to Split View

POWER BRAKE (E-GEAR)

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: *Qty: 1 POWER BRAKE (CANNOT BE SOLD SEPARATELY - SEE REF. 29) Call
Location: 2 Prev | Next Part: 3D0611301B *Qty: 1 POWER BRAKE TANK $111.94
Location: 3 Prev | Next Part: *Qty: 1 SUPPORT (CANNOT BE SOLD SEPARATELY - SEE REF. 29) Call
Location: 4 Prev | Next Part: N10025004 *Qty: 4 SCREW M8X32 $0.90
Location: 5 Prev | Next Part: 1K2945511 *Qty: 1 STOP SWITCH $20.47
Location: 6 Prev | Next Part: 400721633B *Qty: 1 STOP SWITCH SUPPORT $47.54
Location: 7 Prev | Next Part: N10620801 *Qty: 2 SCREW ST3.5X6.5 $0.90
Location: 8 Prev | Next Part: 400721589A *Qty: 2 BUFFER $47.65
Location: 10 Prev | Next Part: N10170509 *Qty: 2 SCREW M10X20 $0.90
Location: 11 Prev | Next Part: 400721013 *Qty: 2 PLATE $1.21
Location: 12 Prev | Next Part: 400721153A *Qty: 4 BUSHING $2.73
Location: 13 Prev | Next Part: 400721309A *Qty: 1 SHAFT $43.36
Location: 16 Prev | Next Part: 401721117B *Qty: 1 SUPPORT (FOR GSX CARS) $653.17
Location: 21 Prev | Next Part: 401721339 *Qty: 1 BALL JOINT COUPLING (FOR GSX CARS) $144.47
Location: 22 Prev | Next Part: 4A0611817A *Qty: 2 GASKET $9.34
Location: 23 Prev | Next Part: N90533002 *Qty: 1 SCREW M6X20 $1.34
Location: 24 Prev | Next Part: N90638801 *Qty: 1 SCREW M6X30 $0.90
Location: 25 Prev | Next Part: 400614130 *Qty: 1 SPACER $300.06
Location: 26 Prev | Next Part: N0150839 *Qty: 2 NUT $0.90
Location: 27 Prev | Next Part: *Qty: 1 SPACER (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 28 Prev | Next Part: N90950502 *Qty: 2 SCREW M8X205X125 $5.54
Location: 29 Prev | Next Part: 400612100A *Qty: 1 POWER BRAKE (COMPLETE) Call

* Quantity shown indicates the number of pieces used in the diagram.
