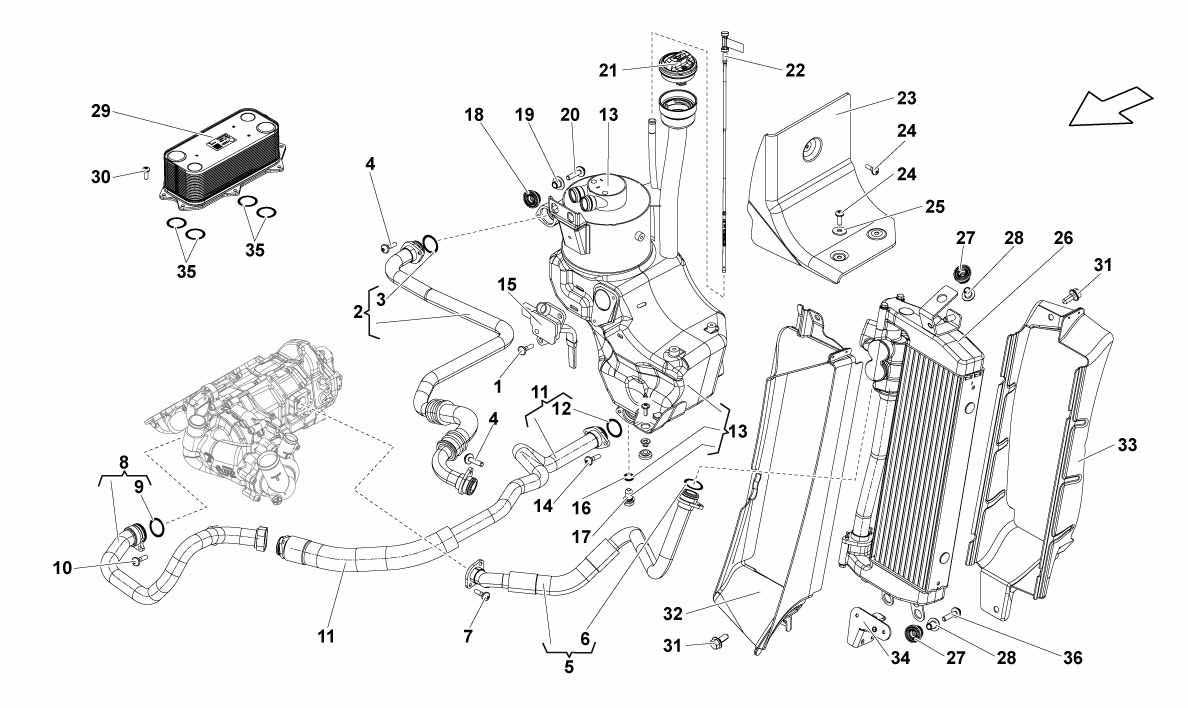

OIL SYSTEM RADIATOR

Go to Split View

OIL SYSTEM RADIATOR

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: N91096801 *Qty: 2 SCREW M6X20 $0.90
Location: 2 Prev | Next Part: 400115689 *Qty: 1 PIPE Call
Location: 3 Prev | Next Part: N91069701 *Qty: 2 O-RING 26X2.5 $3.22
Location: 4 Prev | Next Part: N10124306 *Qty: 3 SCREW M6X20 $0.90
Location: 5 Prev | Next Part: 400117413 *Qty: 1 PIPE Call
Location: 6 Prev | Next Part: N91069701 *Qty: 1 O-RING 26X2.5 $3.22
Location: 7 Prev | Next Part: N10124306 *Qty: 3 SCREW M6X20 $0.90
Location: 8 Prev | Next Part: 420115223 *Qty: 1 PIPE $843.29
Location: 9 Prev | Next Part: N90969401 *Qty: 1 O-RING 30X2 $0.90
Location: 10 Prev | Next Part: N10124306 *Qty: 2 SCREW M6X20 $0.90
Location: 11 Prev | Next Part: 420115687D *Qty: 1 PIPE Call
Location: 12 Prev | Next Part: N90969401 *Qty: 2 O-RING 30X2 $0.90
Location: 13 Prev | Next Part: 420115373C *Qty: 1 OIL TANK $1,810.59
Location: 14 Prev | Next Part: N10124306 *Qty: 4 SCREW M6X20 $0.90
Location: 15 Prev | Next Part: 420907660 *Qty: 1 OIL LEVEL SENSOR $249.68
Location: 16 Prev | Next Part: N0138157 *Qty: 1 WASHER $2.65
Location: 17 Prev | Next Part: 36103193 *Qty: 1 PLUG $40.96
Location: 18 Prev | Next Part: 8Z0129669A *Qty: 4 FAIRLEAD $4.71
Location: 19 Prev | Next Part: 8Z0129734 *Qty: 4 BUSHING $2.73
Location: 20 Prev | Next Part: N91054201 *Qty: 4 SCREW M6X28 $1.14
Location: 21 Prev | Next Part: 7L103485A *Qty: 1 OIL FILLER CAP $82.61
Location: 22 Prev | Next Part: 400115607 *Qty: 1 OIL DIPSTICK $17.69
Location: 23 Prev | Next Part: 420115339D *Qty: 1 HEAT SHIELD $18.85
Location: 24 Prev | Next Part: N10680302 *Qty: 3 SCREW M6X8 $1.39
Location: 25 Prev | Next Part: N91056601 *Qty: 3 WASHER $0.90
Location: 26 Prev | Next Part: 400117015 *Qty: 1 OIL COOLER $1,254.63
Location: 27 Prev | Next Part: 8Z0129669A *Qty: 3 FAIRLEAD $4.71
Location: 28 Prev | Next Part: 8Z0129734 *Qty: 3 BUSHING $2.73
Location: 29 Prev | Next Part: 7L117021H *Qty: 1 OIL COOLER $396.84
Location: 30 Prev | Next Part: N10124306 *Qty: 8 SCREW M6X20 $0.90
Location: 31 Prev | Next Part: N0901486 *Qty: 4 SCREW M6X15 $0.90
Location: 32 Prev | Next Part: 400317025A *Qty: 1 LH CONVEYOR $254.29
Location: 33 Prev | Next Part: 400117335A *Qty: 1 COOLER EXIT CONE $181.95
Location: 34 Prev | Next Part: 400117097B *Qty: 1 BRACKET $32.52
Location: 35 Prev | Next Part: N90958101 *Qty: 4 O-RING 26X3 $7.77
Location: 36 Prev | Next Part: N91054201 *Qty: 3 SCREW M6X28 $1.14

* Quantity shown indicates the number of pieces used in the diagram.
