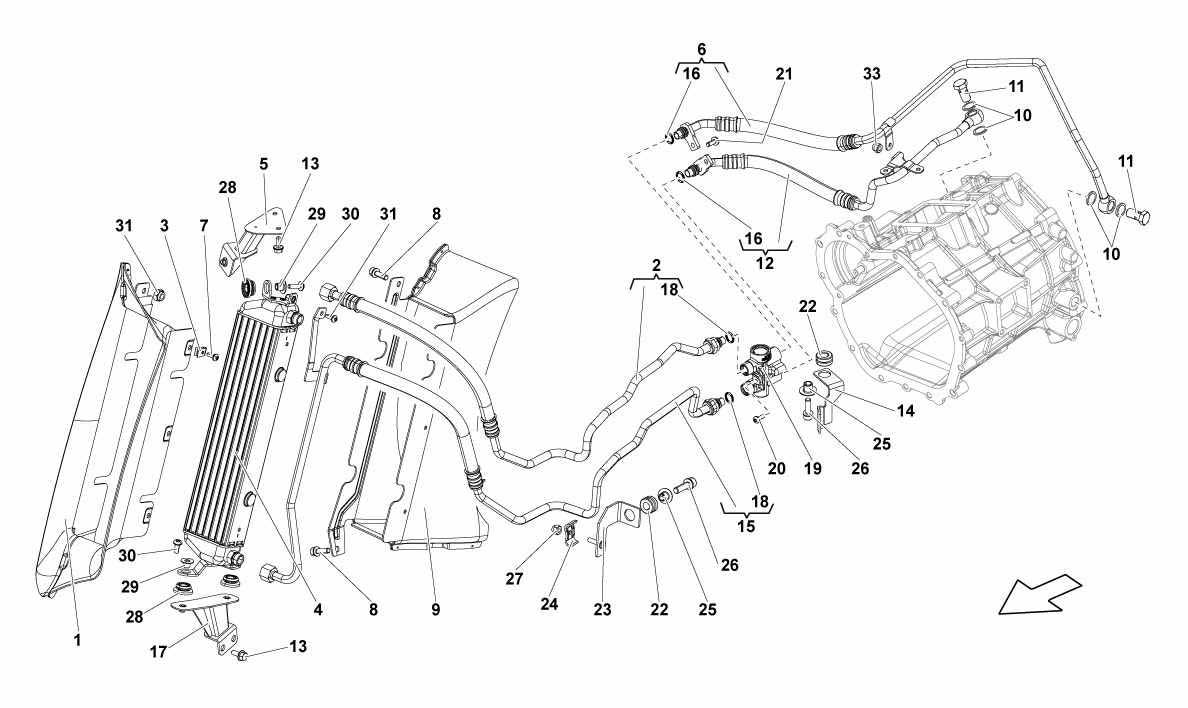

OIL COOLER

Go to Split View

OIL COOLER

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 400317026A *Qty: 1 RH CONVEYOR $460.30
Location: 2 Prev | Next Part: 400317826 *Qty: 1 PIPE $101.26
Location: 3 Prev | Next Part: N0454281 *Qty: 3 CLIP $0.90
Location: 4 Prev | Next Part: 420317021A *Qty: 1 OIL COOLER $366.25
Location: 5 Prev | Next Part: 400317830D *Qty: 1 BRACKET $29.27
Location: 6 Prev | Next Part: 420317818C *Qty: 1 PIPE $239.76
Location: 7 Prev | Next Part: N90986803 *Qty: 3 SCREW ST4.2X13 $0.90
Location: 8 Prev | Next Part: N90575102 *Qty: 2 SCREW M6X15 $2.68
Location: 9 Prev | Next Part: 400117336A *Qty: 1 COOLER EXIT CONE $181.95
Location: 10 Prev | Next Part: N0138444 *Qty: 4 WASHER $0.90
Location: 11 Prev | Next Part: N0210727 *Qty: 2 SCREW $6.28
Location: 12 Prev | Next Part: 420317817A *Qty: 1 PIPE $239.76
Location: 13 Prev | Next Part: N90533005 *Qty: 4 SCREW M6X20 $0.90
Location: 14 Prev | Next Part: 420317829A *Qty: 1 BRACKET $6.70
Location: 15 Prev | Next Part: 400317825 *Qty: 1 PIPE $138.75
Location: 16 Prev | Next Part: N90666003 *Qty: 2 O-RING 11,5X3 $2.65
Location: 17 Prev | Next Part: 400317829D *Qty: 1 BRACKET $41.93
Location: 18 Prev | Next Part: 3W0301323 *Qty: 2 O-RING 11,1X1,75 $4.46
Location: 19 Prev | Next Part: 7L0317027A *Qty: 1 TEMPERATURE REGULATOR $83.01
Location: 20 Prev | Next Part: N10196103 *Qty: 1 SCREW M6X18 $0.90
Location: 21 Prev | Next Part: N10347204 *Qty: 1 SCREW M6X25 $0.90
Location: 22 Prev | Next Part: 4D0317867A *Qty: 2 RUBBER BUSHING $5.37
Location: 23 Prev | Next Part: 420317827 *Qty: 1 BRACKET $6.70
Location: 24 Prev | Next Part: 4A0317171D *Qty: 1 CLAMP $1.98
Location: 25 Prev | Next Part: 4E0903127 *Qty: 2 BUSHING $9.76
Location: 26 Prev | Next Part: N10720901 *Qty: 2 SCREW M8X28 $1.19
Location: 27 Prev | Next Part: N01508213 *Qty: 1 NUT M6 $0.90
Location: 28 Prev | Next Part: 8Z0129669A *Qty: 3 FAIRLEAD $4.71
Location: 29 Prev | Next Part: 8Z0129734 *Qty: 3 BUSHING $2.73
Location: 30 Prev | Next Part: N91054201 *Qty: 3 SCREW M6X28 $1.14
Location: 31 Prev | Next Part: N91054101 *Qty: 1 SCREW M6X25 $0.90
Location: 32 Prev | Next Part: N10205803 *Qty: 1 NUT M6 $0.90
Location: 33 Prev | Next Part: N10205803 *Qty: 1 NUT M6 $0.90

* Quantity shown indicates the number of pieces used in the diagram.
