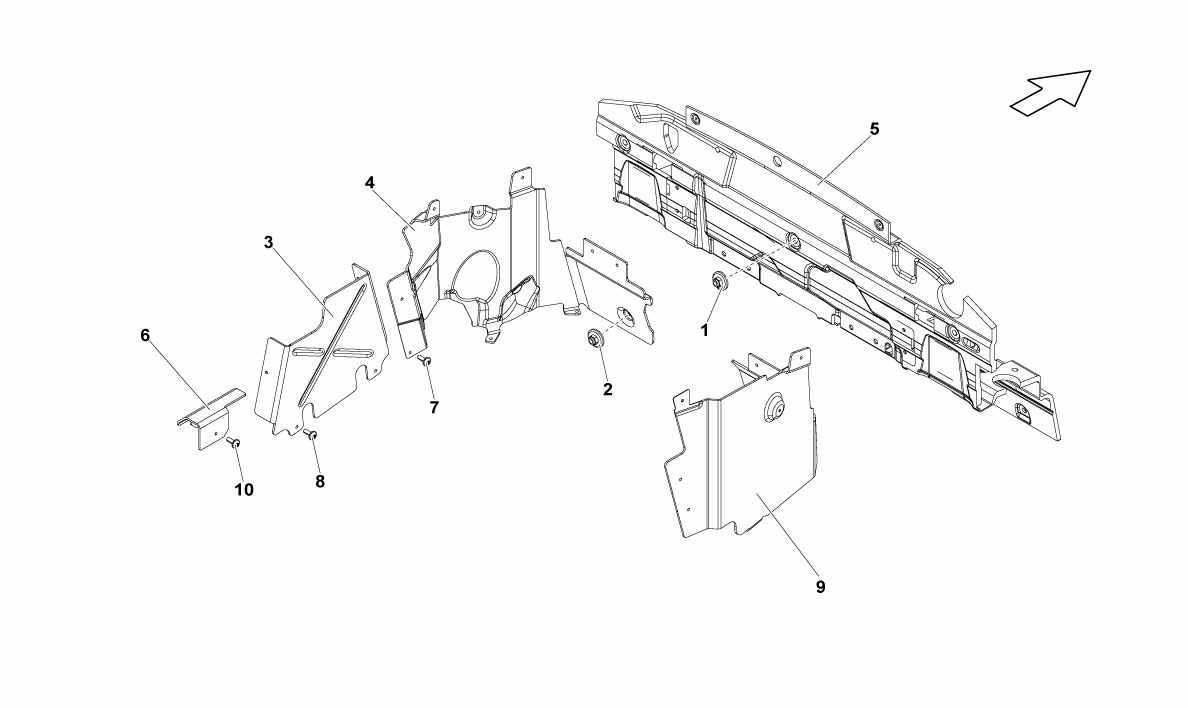

HEAT SHIELD

Go to Split View

HEAT SHIELD

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: N90641901 *Qty: 13 NUT $0.90
Location: 2 Prev | Next Part: N90745001 *Qty: 4 NUT $0.90
Location: 3 Prev | Next Part: 420825741 *Qty: 1 LH PANEL $42.25
Location: 3 Prev | Next Part: 420825742 *Qty: 1 RH PANEL $42.25
Location: 4 Prev | Next Part: 420825731E *Qty: 1 LH PANEL $83.67
Location: 5 Prev | Next Part: 400825249 *Qty: 1 FIREPROOF SHIELD $427.45
Location: 6 Prev | Next Part: 420825707 *Qty: 1 LH PANEL $22.65
Location: 6 Prev | Next Part: 420825708 *Qty: 1 RH PANEL $22.65
Location: 7 Prev | Next Part: 4E0831701 *Qty: 15 SCREW M6X13 $1.07
Location: 8 Prev | Next Part: 4E0831701 *Qty: 12 SCREW M6X13 $1.07
Location: 9 Prev | Next Part: 420825733 *Qty: 1 RH PANEL $42.26
Location: 10 Prev | Next Part: 4E0831701 *Qty: 4 SCREW M6X13 $1.07

* Quantity shown indicates the number of pieces used in the diagram.
