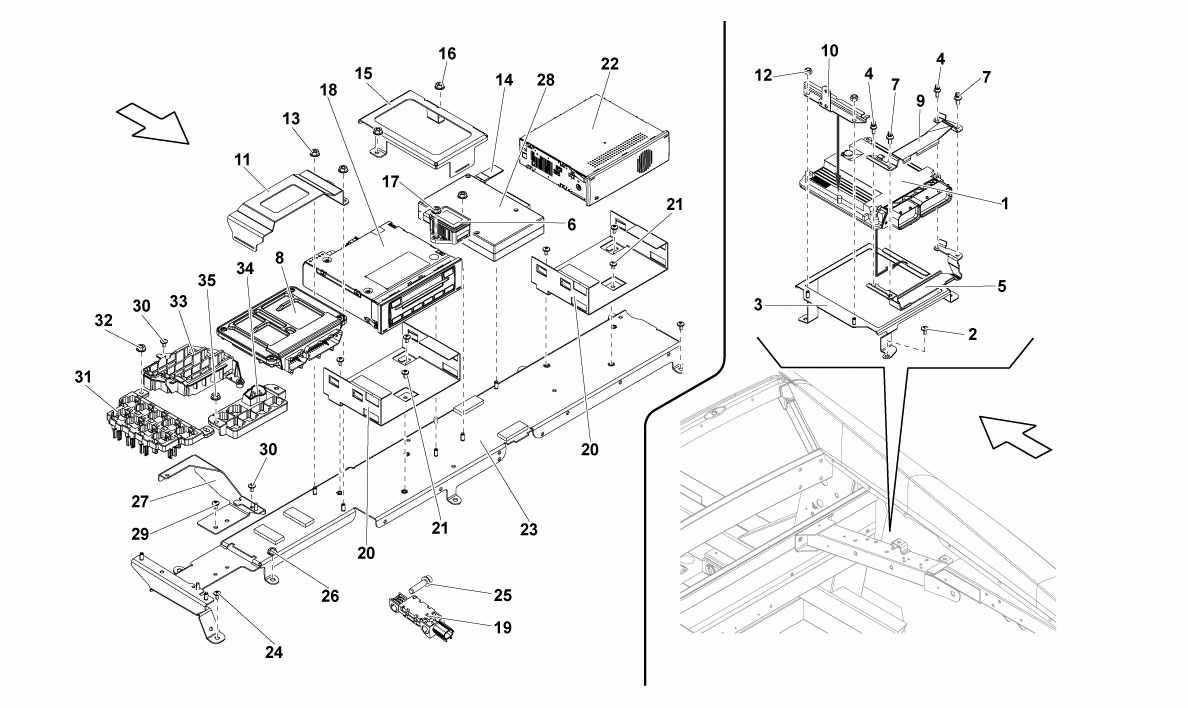

ELECTRICAL SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 400907552A *Qty: 2 ENGINE CONTROL UNIT (USE REF. 4 - 7 - SUPPLY VIN ? TO BE PROGRAMMED) $1,413.67
Location: 2 Prev | Next Part: N91073301 *Qty: 6 SCREW M6X12 $0.90
Location: 3 Prev | Next Part: 408907348A *Qty: 1 LH BRACKET $36.54
Location: 3 Prev | Next Part: 408907324A *Qty: 1 RH BRACKET $36.54
Location: 4 Prev | Next Part: N91023802 *Qty: 4 SCREW M5X14 $0.90
Location: 5 Prev | Next Part: 8E0907411J *Qty: 2 BRACKET $35.72
Location: 6 Prev | Next Part: 8E0907637C *Qty: 1 YAWRATE SENSOR (ESP) $395.11
Location: 7 Prev | Next Part: N90980304 *Qty: 4 SCREW M6X12 $0.94
Location: 8 Prev | Next Part: 400927156 *Qty: 1 E-GEAR CONTROL UNIT $3,620.16
Location: 9 Prev | Next Part: 8E0907500J *Qty: 2 BRACKET $9.09
Location: 10 Prev | Next Part: 408907354A *Qty: 1 LH BRACKET $12.05
Location: 10 Prev | Next Part: 408907649A *Qty: 1 RH BRACKET $12.05
Location: 11 Prev | Next Part: 408907347B *Qty: 1 BRACKET (E-GEAR) $24.55
Location: 12 Prev | Next Part: N01508213 *Qty: 4 NUT M6 $0.90
Location: 13 Prev | Next Part: N01508213 *Qty: 2 NUT M6 $0.90
Location: 14 Prev | Next Part: 8P0035503E *Qty: 1 ANTENNA BLUETOOTH $24.31
Location: 15 Prev | Next Part: 408862399 *Qty: 1 BRACKET (BLUETOOTH CONTROL UNIT) $34.10
Location: 16 Prev | Next Part: N01508213 *Qty: 2 NUT M6 $0.90
Location: 17 Prev | Next Part: N01508213 *Qty: 2 NUT M6 $0.90
Location: 18 Prev | Next Part: *Qty: 0 CD CHANGER (SEE TABLE 857.07.00) Call
Location: 19 Prev | Next Part: 400980655 *Qty: 2 AIR BAG SENSOR $119.93
Location: 20 Prev | Next Part: 400919749 *Qty: 2 BRACKET (CD - TV) $18.19
Location: 21 Prev | Next Part: N91020102 *Qty: 6 SCREW M6X14 $0.90
Location: 22 Prev | Next Part: *Qty: 0 TV-TUNER (SEE TABLE 857.07.00) Call
Location: 23 Prev | Next Part: 408035643B *Qty: 1 SUPPORT $121.25
Location: 24 Prev | Next Part: N91073301 *Qty: 7 SCREW M6X12 $0.90
Location: 25 Prev | Next Part: N10227805 *Qty: 2 SCREW M6X20 $0.90
Location: 26 Prev | Next Part: N01508213 *Qty: 1 NUT M6 $0.90
Location: 27 Prev | Next Part: 420971845R *Qty: 1 BRACKET $15.79
Location: 28 Prev | Next Part: 8P0862335R *Qty: 1 BLUETOOTH CONTROL UNIT $678.78
Location: 29 Prev | Next Part: N91020102 *Qty: 2 SCREW M6X14 $0.90
Location: 30 Prev | Next Part: N10595002 *Qty: 2 SCREW M5X18 $1.22
Location: 31 Prev | Next Part: 4F0937503 *Qty: 1 SUPPORT (ENGINE RELAY BOX WIRING HARNESS) $9.76
Location: 32 Prev | Next Part: N01508213 *Qty: 2 NUT M6 $0.90
Location: 33 Prev | Next Part: 4F1971845A *Qty: 1 SUPPORT $14.30
Location: 34 Prev | Next Part: 4F1937545 *Qty: 1 SUPPORT (CENTRAL WIRING HARNESS) $4.71
Location: 35 Prev | Next Part: N10597201 *Qty: 2 NUT M5 $0.90

* Quantity shown indicates the number of pieces used in the diagram.
