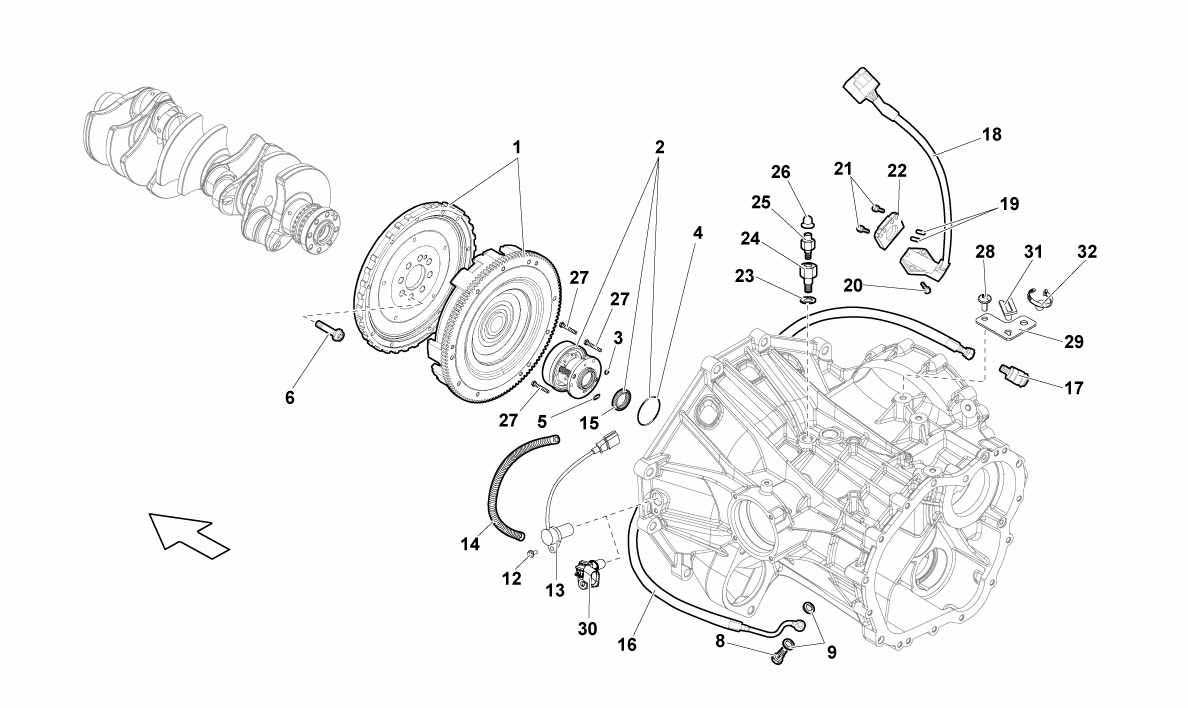

CLUTCH (E GEAR)

Go to Split View

CLUTCH (E GEAR)

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 7L105269H *Qty: 1 CLUTCH FLYWHEEL (AUTOMATIC GEARBOX) $3,307.02
Location: 2 Prev | Next Part: 86141671H *Qty: 1 THRUST BEARING (E-GEAR) $724.19
Location: 3 Prev | Next Part: WHT002218 *Qty: 1 O-RING 9.25X1.78 (E-GEAR) $0.90
Location: 4 Prev | Next Part: N91020601 *Qty: 1 O-RING 44.17X1.78 $4.40
Location: 5 Prev | Next Part: N90111302 *Qty: 1 O-RING 12.42X1.78 (E-GEAR) $1.19
Location: 6 Prev | Next Part: WHT000938 *Qty: 10 SCREW M10X1X19X11 $6.28
Location: 8 Prev | Next Part: *Qty: 0 SCREW (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 9 Prev | Next Part: *Qty: 0 WASHER (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 12 Prev | Next Part: N10405604 *Qty: 1 SCREW M6X14 $0.90
Location: 13 Prev | Next Part: *Qty: 0 TRANSDUCER (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 14 Prev | Next Part: *Qty: 0 PIPE (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 15 Prev | Next Part: 86141243A *Qty: 1 OIL SEAL $18.61
Location: 16 Prev | Next Part: *Qty: 0 PIPE (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 17 Prev | Next Part: *Qty: 0 CONNECTOR (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 18 Prev | Next Part: 86141297 *Qty: 1 SENSOR $276.96
Location: 19 Prev | Next Part: N10421101 *Qty: 2 JOURNAL $0.90
Location: 20 Prev | Next Part: N90659905 *Qty: 2 SCREW M4X16 $7.47
Location: 21 Prev | Next Part: N10295402 *Qty: 2 SCREW M5X20 $1.44
Location: 22 Prev | Next Part: 86141305 *Qty: 1 SUPPORT $46.96
Location: 23 Prev | Next Part: WHT002219 *Qty: 1 O-RING 11.11X1.78 $1.14
Location: 24 Prev | Next Part: 86301065 *Qty: 1 CONNECTOR $51.84
Location: 25 Prev | Next Part: 86301138 *Qty: 1 PLUG $20.50
Location: 26 Prev | Next Part: 86301147 *Qty: 1 BOOT $0.90
Location: 27 Prev | Next Part: N10124306 *Qty: 3 SCREW M6X20 $0.90
Location: 28 Prev | Next Part: N90986103 *Qty: 1 SCREW M8X20 $2.22
Location: 29 Prev | Next Part: 86301953C *Qty: 1 SUPPORT $19.35
Location: 30 Prev | Next Part: 79907601 *Qty: 1 TRANSDUCER $147.99
Location: 31 Prev | Next Part: 400971890C *Qty: 1 CLIP $11.57
Location: 32 Prev | Next Part: N90926601 *Qty: 1 CLAMP $1.19

* Quantity shown indicates the number of pieces used in the diagram.
