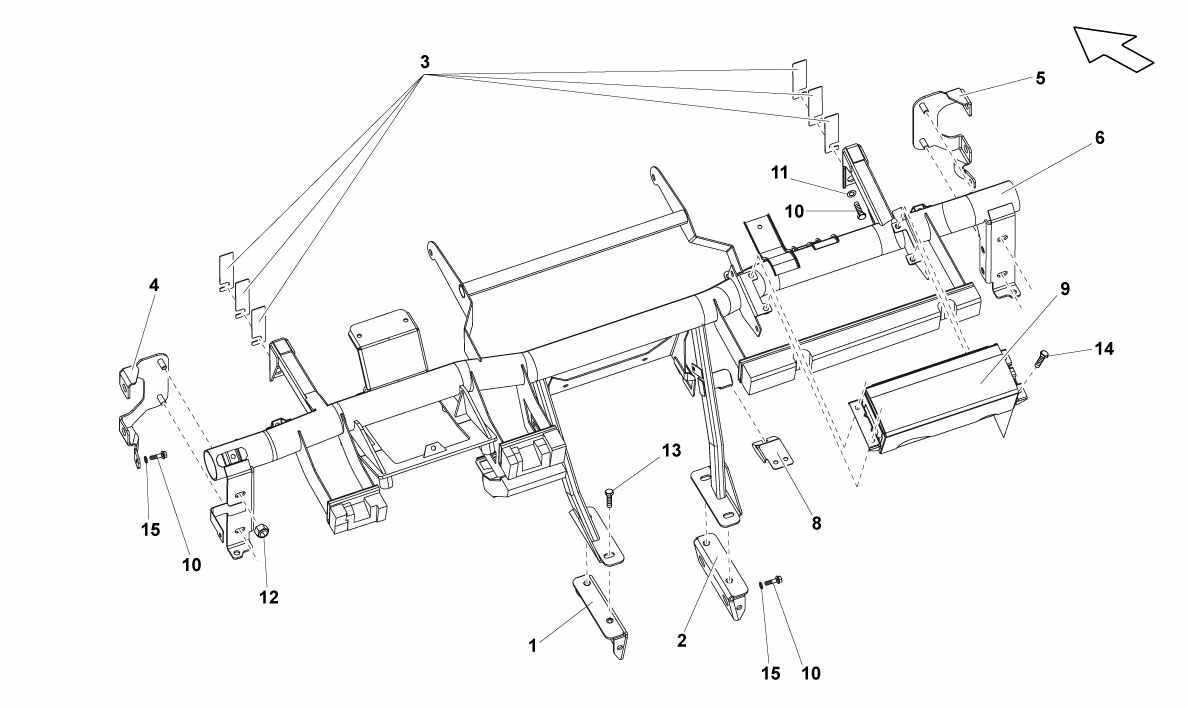

Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 400857195A *Qty: 1 LH BRACKET $32.21
Location: 2 Prev | Next Part: 400857196A *Qty: 1 RH BRACKET $32.21
Location: 3 Prev | Next Part: *Qty: 0 SPACER (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 6 Prev | Next Part: 401857017D *Qty: 1 CROSS MEMBER $1,027.33
Location: 8 Prev | Next Part: 401857689 *Qty: 1 BRACKET $10.22
Location: 9 Prev | Next Part: 3D0880204D *Qty: 1 AIR BAG MODULE $1,531.15
Location: 10 Prev | Next Part: N91048802 *Qty: 10 SCREW M8X20 $1.06
Location: 11 Prev | Next Part: N90536602 *Qty: 2 WASHER $0.90
Location: 12 Prev | Next Part: N10609202 *Qty: 4 NUT M8 $0.90
Location: 13 Prev | Next Part: N10049308 *Qty: 4 SCREW M8X20 $1.04
Location: 14 Prev | Next Part: N90708003 *Qty: 4 SCREW M6X14 $0.90

* Quantity shown indicates the number of pieces used in the diagram.
