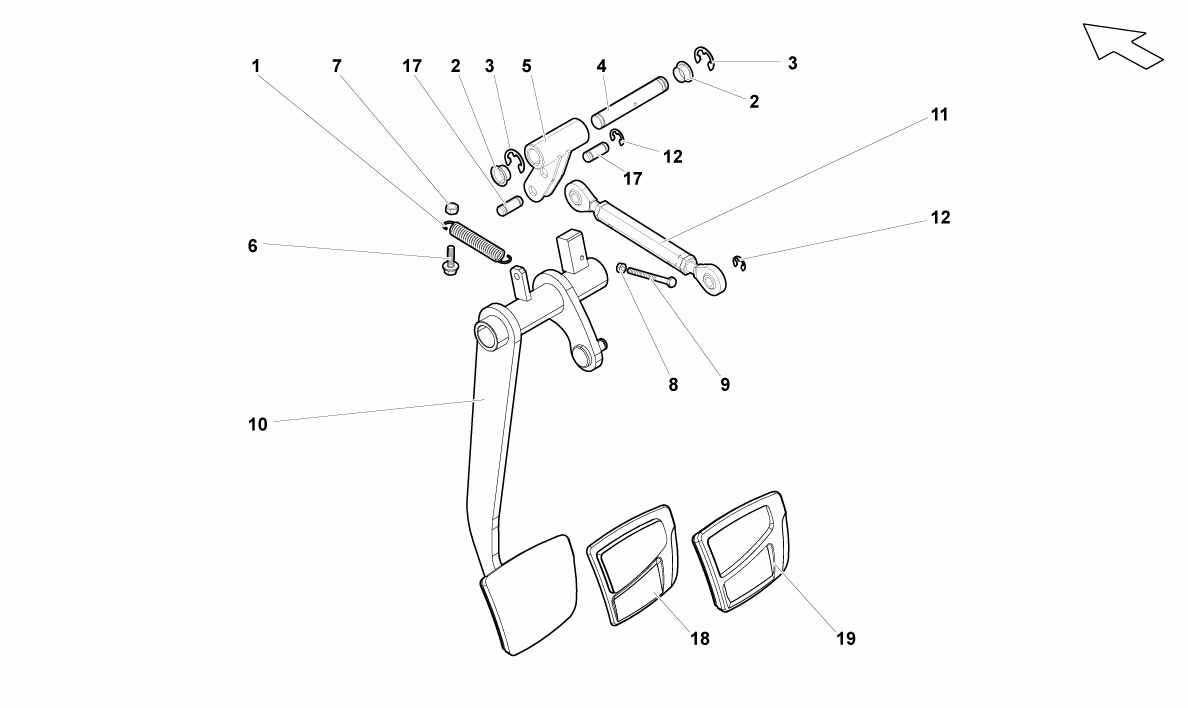

BRAKE PEDAL

Go to Split View

BRAKE PEDAL

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 400721363A *Qty: 1 SPRING (E-GEAR) $6.73
Location: 2 Prev | Next Part: 400721389 *Qty: 2 BUSHING $25.99
Location: 3 Prev | Next Part: N0124402 *Qty: 2 CLIP $0.90
Location: 4 Prev | Next Part: N91024201 *Qty: 1 SHAFT $13.06
Location: 5 Prev | Next Part: 401721313D *Qty: 1 LEVER (FOR GSX CARS) $82.76
Location: 6 Prev | Next Part: N90833201 *Qty: 1 SCREW $0.90
Location: 7 Prev | Next Part: N01100625 *Qty: 1 NUT $0.90
Location: 8 Prev | Next Part: N0110051 *Qty: 1 NUT $6.28
Location: 9 Prev | Next Part: N10579401 *Qty: 1 SCREW $2.10
Location: 10 Prev | Next Part: 401721141B *Qty: 1 BRAKE PEDAL (GSX AUTOMATIC GEARBOX) $816.45
Location: 11 Prev | Next Part: 400723323 *Qty: 1 PARTICULAR $188.83
Location: 12 Prev | Next Part: N0126481 *Qty: 3 CLIP $0.90
Location: 17 Prev | Next Part: N91024101 *Qty: 2 SHAFT $42.26
Location: 18 Prev | Next Part: 400721174D *Qty: 1 PEDAL PAD (E-GEAR) $34.11
Location: 19 Prev | Next Part: 400721780A *Qty: 1 COVER $121.05

* Quantity shown indicates the number of pieces used in the diagram.
