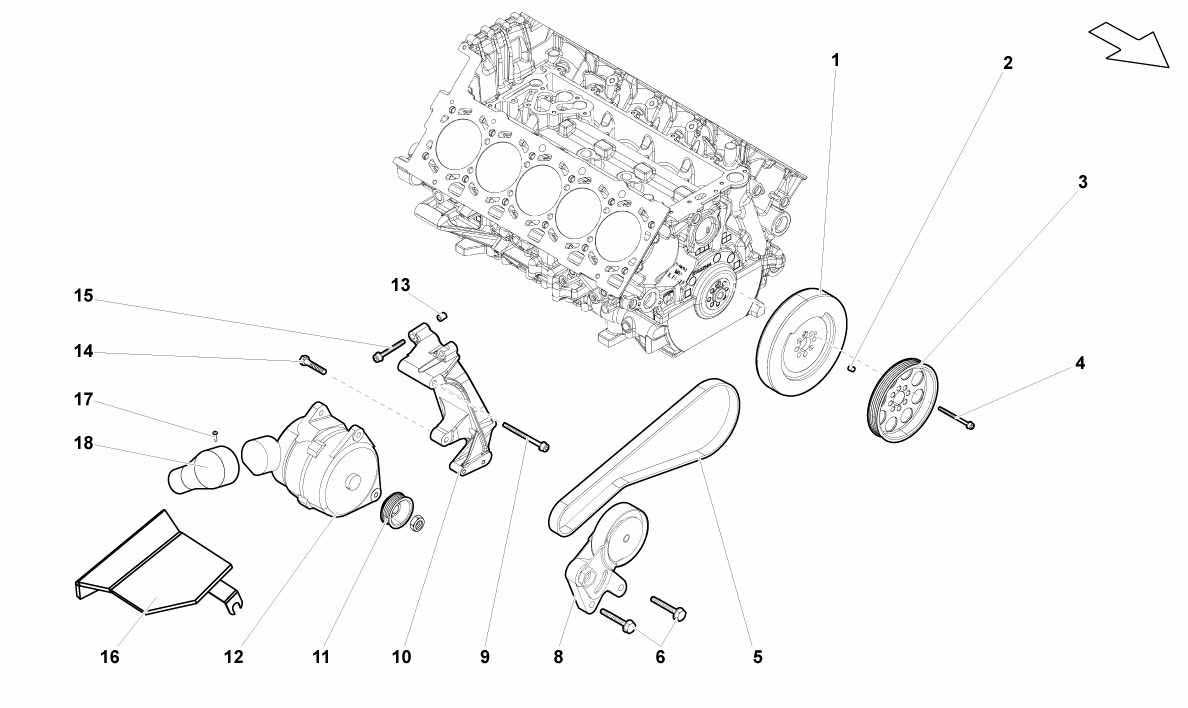

ALTERNATOR AND STRAPS

Go to Split View

ALTERNATOR AND STRAPS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 7L105251Q *Qty: 1 DAMPER $653.14
Location: 3 Prev | Next Part: *Qty: 0 PULLEY (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 5 Prev | Next Part: 7L903137T *Qty: 1 BELT $69.53
Location: 6 Prev | Next Part: N10156206 *Qty: 1 SCREW M6X30 $0.90
Location: 8 Prev | Next Part: 7L903133F *Qty: 1 CHAIN TIGHTENER $218.85
Location: 9 Prev | Next Part: *Qty: 1 SCREW Call
Location: 10 Prev | Next Part: 7L903805S *Qty: 1 SUPPORT $153.89
Location: 11 Prev | Next Part: 7L903165E *Qty: 1 PULLEY $117.04
Location: 12 Prev | Next Part: 79903021R *Qty: 1 ALTERNATOR (190 A) $1,760.99
Location: 13 Prev | Next Part: 77115143D *Qty: 2 BUSHING $9.84
Location: 15 Prev | Next Part: N91151001 *Qty: 4 SCREW M10X50 $3.56
Location: 16 Prev | Next Part: 7L145325 *Qty: 1 HEAT SHIELD $222.41
Location: 17 Prev | Next Part: *Qty: 0 SCREW (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 18 Prev | Next Part: *Qty: 0 CONNECTOR (VALID FOR A DIFFERENT MODEL YEAR) Call

* Quantity shown indicates the number of pieces used in the diagram.
