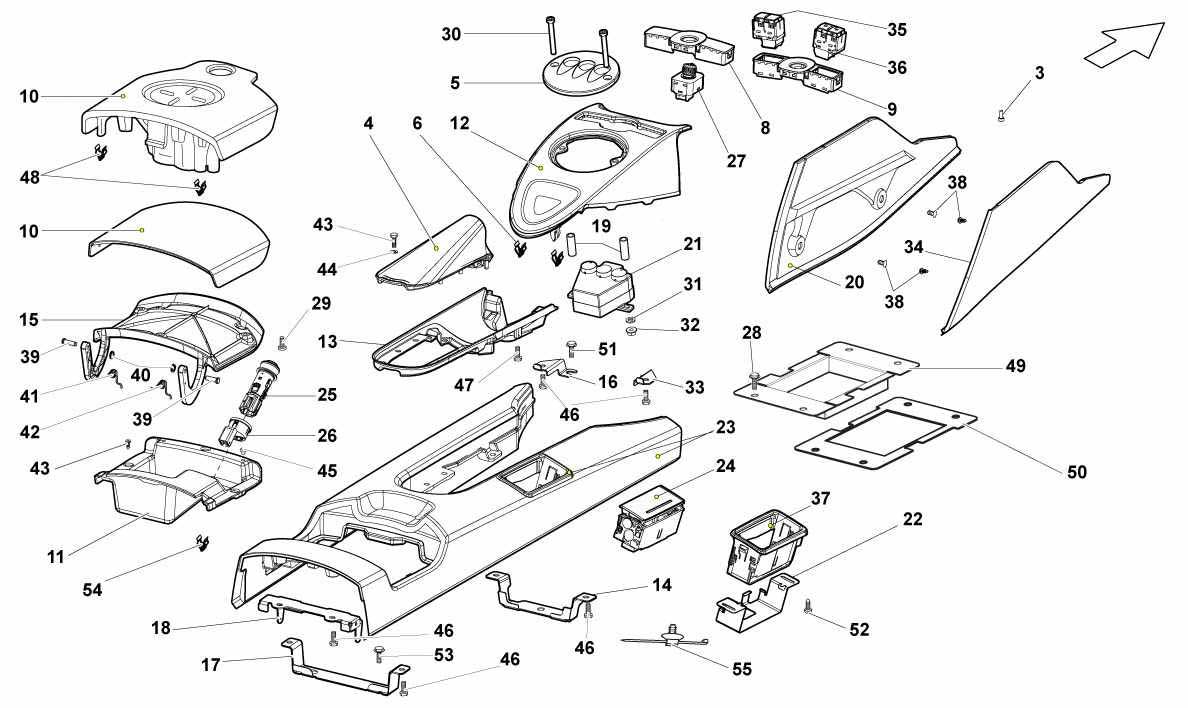

TUNNEL

Go to Split View

TUNNEL

in cart
Location Part # *Qty Description Price Add To Cart
Location: 3 Prev | Next Part: WHT003110 *Qty: 1 SCREW M4X10 $4.40
Location: 3 Prev | Next Part: WHT000754 *Qty: 1 SCREW M4X10 $4.03
Location: 4 Prev | Next Part: 400711461 *Qty: 1 HAND BRAKE COVERING ASSY WITH MOLDING (SUPPLY VIN) $505.94
Location: 5 Prev | Next Part: 400713110D *Qty: 1 SELECTOR LEVER (E-GEAR) $815.21
Location: 6 Prev | Next Part: 400857117 *Qty: 2 CLIP $0.90
Location: 8 Prev | Next Part: 400858140 *Qty: 1 SWITCH ORNAMENT ON THE TUNNEL (WITHOUT HOLE) $56.05
Location: 9 Prev | Next Part: 400858140A *Qty: 1 SWITCH ORNAMENT ON THE TUNNEL $60.63
Location: 10 Prev | Next Part: 400863284 *Qty: 1 REAR CONSOLE GLOVE BOX ASSY (SUPPLY VIN) $1,240.13
Location: 10 Prev | Next Part: 400863284B *Qty: 1 REAR CONSOLE GLOVE BOX ASSY (CUP HOLDER - LEATHER INTERIOR - SUPPLY VIN) $1,240.13
Location: 10 Prev | Next Part: 400863284A *Qty: 1 REAR CONSOLE GLOVE BOX ASSY (CARBON INTERIOR) $3,377.83
Location: 11 Prev | Next Part: 400863300A *Qty: 1 GLOVE BOX $98.23
Location: 12 Prev | Next Part: 400863323C *Qty: 1 FRONT CONSOLE CENTER EXTENSION $71.50
Location: 12 Prev | Next Part: 400863323B *Qty: 1 FRONT CONSOLE CENTER EXTENSION (LEATHER UPHOLSTERY ? SUPPLY VIN) $506.39
Location: 12 Prev | Next Part: 400863323A *Qty: 1 FRONT CONSOLE CENTER EXTENSION (CARBON INTERIOR) $1,165.34
Location: 13 Prev | Next Part: 400863343C *Qty: 1 HAND BRAKE LOWER PORTION CLOSING $59.61
Location: 13 Prev | Next Part: 400863343B *Qty: 1 HAND BRAKE LOWER PORTION CLOSING (LEATHER INTERIOR - SUPPLY VIN) $972.45
Location: 13 Prev | Next Part: 400863343A *Qty: 1 HAND BRAKE LOWER PORTION CLOSING (CARBON INTERIOR) $760.01
Location: 14 Prev | Next Part: 400863345 *Qty: 1 TUNNEL FIXING BRACKET- CENTER $12.98
Location: 15 Prev | Next Part: 400863371 *Qty: 1 TRIM COVERING- INNER $88.96
Location: 16 Prev | Next Part: 400863583 *Qty: 1 TUNNEL FIXING BRACKET- FRONT LH $8.28
Location: 17 Prev | Next Part: 400863615 *Qty: 1 TUNNEL FIXING BRACKET- REAR $13.20
Location: 18 Prev | Next Part: 400863843 *Qty: 1 LID FIXING BRACKET $13.46
Location: 19 Prev | Next Part: 400864133 *Qty: 2 SPACER (E-GEAR) $10.76
Location: 20 Prev | Next Part: 400864551B *Qty: 1 FRONT CONSOLE SIDE COVER ASSY- FRONT LH (ARTIFICIAL LEATHER INTERIOR - SUPPLY VIN) $651.45
Location: 21 Prev | Next Part: 408927128 *Qty: 1 SWITCH- FDR (E-GEAR) $559.43
Location: 22 Prev | Next Part: *Qty: 0 CENTER CONSOLE REAR SECTION ASSY (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 23 Prev | Next Part: 401863242B *Qty: 1 CENTER CONSOLE REAR SECTION ASSY (WITHOUT CUP HOLDER - SMOKING VERSION - LEATHER INTERIOR - SUPPLY VIN) $1,516.10
Location: 23 Prev | Next Part: 400863242A *Qty: 1 CENTER CONSOLE REAR SECTION ASSY (NON SMOKING VERSION - LEATHER INTERIOR - SUPPLY VIN) $3,900.51
Location: 23 Prev | Next Part: 400863242B *Qty: 1 CENTER CONSOLE REAR SECTION ASSY (NON SMOKING VERSION - CUP HOLDER - LEATHER INTERIOR - SUPPLY VIN) $3,900.51
Location: 23 Prev | Next Part: 401863242C *Qty: 1 CENTER CONSOLE REAR SECTION ASSY (CUP HOLDER - LEATHER INTERIOR - SUPPLY VIN) $4,320.85
Location: 24 Prev | Next Part: 4B0857405B *Qty: 1 ASHTRAY $56.35
Location: 24 Prev | Next Part: 400857405B *Qty: 1 ASHTRAY (DECORATIVE INSERTS - SUPPLY VIN) $645.65
Location: 25 Prev | Next Part: 7M3919311 *Qty: 1 OUTLET 12V (NON SMOKING VERSION) $2.89
Location: 25 Prev | Next Part: 4B0919305B *Qty: 1 LIGHTER $16.32
Location: 26 Prev | Next Part: 8D0919343 *Qty: 1 LIGHTER RING $9.59
Location: 27 Prev | Next Part: 8E0959565A *Qty: 1 OUTER REARVIEW MIRROR CONTROL SWITCH $32.13
Location: 28 Prev | Next Part: N10049308 *Qty: 4 SCREW (E-GEAR) $1.04
Location: 29 Prev | Next Part: N90562401 *Qty: 6 SCREW $1.41
Location: 30 Prev | Next Part: N91078401 *Qty: 2 SCREW (E-GEAR) $12.63
Location: 31 Prev | Next Part: WHT000778 *Qty: 2 WASHER (E-GEAR) $0.90
Location: 32 Prev | Next Part: N01508213 *Qty: 2 NUT (E-GEAR) $0.90
Location: 33 Prev | Next Part: 400863584 *Qty: 1 TUNNEL FIXING BRACKET- FRONT RH $8.28
Location: 34 Prev | Next Part: 400864552B *Qty: 1 FRONT CONSOLE SIDE COVER ASSY- FRONT RH (ARTIFICIAL LEATHER INTERIOR - SUPPLY VIN) $651.45
Location: 35 Prev | Next Part: 400962109 *Qty: 1 SWITCH (PLUG) $111.18
Location: 36 Prev | Next Part: 400962109E *Qty: 1 SWITCH (REAR VIEW CAMERA/PLUG) $91.09
Location: 36 Prev | Next Part: 400962109D *Qty: 1 SWITCH (REAR VIEW CAMERA/LIFTING SYSTEM) $91.09
Location: 36 Prev | Next Part: 400962109F *Qty: 1 SWITCH (PLUG/LIFTING SYSTEM) $91.09
Location: 37 Prev | Next Part: 401863849 *Qty: 1 ASHTRAY BEZEL $78.77
Location: 38 Prev | Next Part: 400867299 *Qty: 4 FASTENER LYS FUSION- YELLOW $0.90
Location: 39 Prev | Next Part: N10639601 *Qty: 2 JOURNAL $0.90
Location: 40 Prev | Next Part: N0126252 *Qty: 4 SEAL RING $0.90
Location: 41 Prev | Next Part: 400863285 *Qty: 1 LEFT SPRING $29.13
Location: 42 Prev | Next Part: 400863286 *Qty: 1 RIGHT SPRING $29.13
Location: 43 Prev | Next Part: N90562401 *Qty: 13 SCREW $1.41
Location: 44 Prev | Next Part: N90485901 *Qty: 10 WASHER $0.90
Location: 45 Prev | Next Part: N91092001 *Qty: 2 RUBBER STOP 4.50X2.2X8.60 $0.90
Location: 46 Prev | Next Part: N10406602 *Qty: 8 SCREW M5X8 $0.90
Location: 47 Prev | Next Part: N90986801 *Qty: 2 SCREW 4.2X13.0 (WITH LEATHER UPHOLSTERY) $0.90
Location: 47 Prev | Next Part: N90632303 *Qty: 2 SCREW 4.2X9.5 (CARBON INTERIOR) $0.90
Location: 48 Prev | Next Part: 400868563 *Qty: 2 CLIP $0.90
Location: 49 Prev | Next Part: 400857206 *Qty: 1 COVER (E-GEAR) $42.25
Location: 50 Prev | Next Part: 400857234 *Qty: 1 GASKET (E-GEAR) $9.76
Location: 51 Prev | Next Part: N10158602 *Qty: 2 SCREW M6X20 $0.90
Location: 52 Prev | Next Part: *Qty: 0 SCREW 4.2X9.5 (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 53 Prev | Next Part: N90847903 *Qty: 2 SCREW $0.90
Location: 54 Prev | Next Part: *Qty: 2 CLIP (VALID FOR A DIFFERENT MODEL) Call
Location: 55 Prev | Next Part: N90688101 *Qty: 3 CLAMP $0.90

* Quantity shown indicates the number of pieces used in the diagram.
