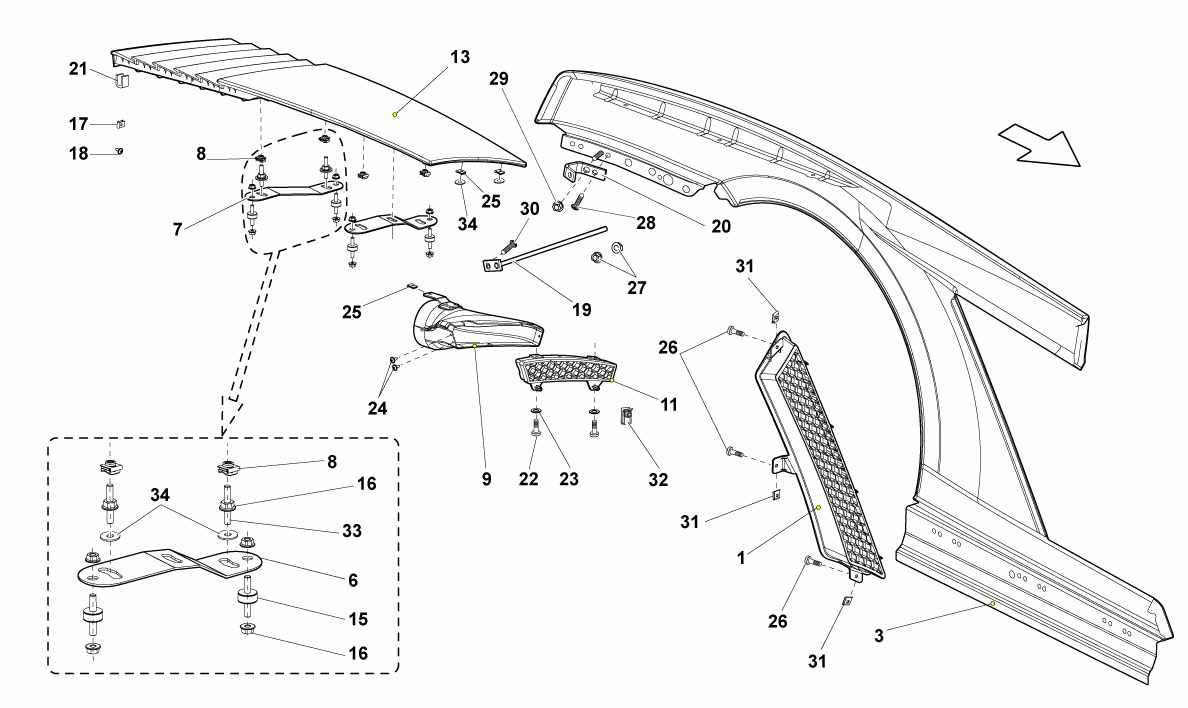

REAR FENDER

Go to Split View

REAR FENDER

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 400317115 *Qty: 1 AIR INTAKE GRID- LH $496.55
Location: 1 Prev | Next Part: 400317116 *Qty: 1 AIR INTAKE GRID- RH $496.55
Location: 3 Prev | Next Part: 408809604 *Qty: 1 REAR FENDER- RH $3,994.83
Location: 3 Prev | Next Part: 408809603 *Qty: 1 REAR FENDER- LH $3,994.83
Location: 6 Prev | Next Part: 400827605 *Qty: 2 SIDE COVER FASTENER $45.93
Location: 7 Prev | Next Part: 400827606 *Qty: 2 SIDE COVER FASTENER $37.22
Location: 8 Prev | Next Part: N90327506 *Qty: 8 CLIP $0.90
Location: 9 Prev | Next Part: 408827924 *Qty: 1 ENGINE AIR CONVEYOR- RH $891.55
Location: 9 Prev | Next Part: 408827923 *Qty: 1 ENGINE AIR CONVEYOR- LH $254.71
Location: 11 Prev | Next Part: 400827967A *Qty: 1 GRID- LH $37.23
Location: 11 Prev | Next Part: 400827968A *Qty: 1 GRID- RH $37.23
Location: 13 Prev | Next Part: 400827994B *Qty: 1 SIDE COVER- RH $1,339.67
Location: 13 Prev | Next Part: 400827993B *Qty: 1 SIDE COVER- LH $1,339.67
Location: 15 Prev | Next Part: 400972081B *Qty: 8 PUFFER $56.14
Location: 16 Prev | Next Part: N01508213 *Qty: 16 NUT $0.90
Location: 17 Prev | Next Part: N0154487 *Qty: 6 CLIP $0.90
Location: 18 Prev | Next Part: N90986801 *Qty: 6 SCREW $0.90
Location: 19 Prev | Next Part: 400807707B *Qty: 2 FENDER ADJUSTMENT BRACKET- INNER $43.12
Location: 20 Prev | Next Part: 400810239B *Qty: 2 FENDER ADJUSTMENT BRACKET- OUTER $21.99
Location: 21 Prev | Next Part: 400827341 *Qty: 4 GASKET $5.08
Location: 22 Prev | Next Part: N90986803 *Qty: 4 SCREW 4.2X13.0 $0.90
Location: 23 Prev | Next Part: WHT000778 *Qty: 4 WASHER $0.90
Location: 24 Prev | Next Part: N90881601 *Qty: 6 RIVET $0.90
Location: 25 Prev | Next Part: N0154487 *Qty: 6 CLIP $0.90
Location: 26 Prev | Next Part: N90986803 *Qty: 6 SCREW 4.2X13.0 $0.90
Location: 27 Prev | Next Part: N10609202 *Qty: 4 NUT M8 $0.90
Location: 28 Prev | Next Part: N10448504 *Qty: 2 SCREW M6X16 $0.90
Location: 29 Prev | Next Part: N01508213 *Qty: 2 NUT M6 $0.90
Location: 30 Prev | Next Part: N0902424 *Qty: 2 SCREW M6X18.00 $0.90
Location: 31 Prev | Next Part: N0154487 *Qty: 6 CLIP $0.90
Location: 32 Prev | Next Part: N90779802 *Qty: 4 CLIP $0.90
Location: 33 Prev | Next Part: N10652301 *Qty: 8 JOURNAL $2.33
Location: 34 Prev | Next Part: N0116945 *Qty: 12 WASHER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
