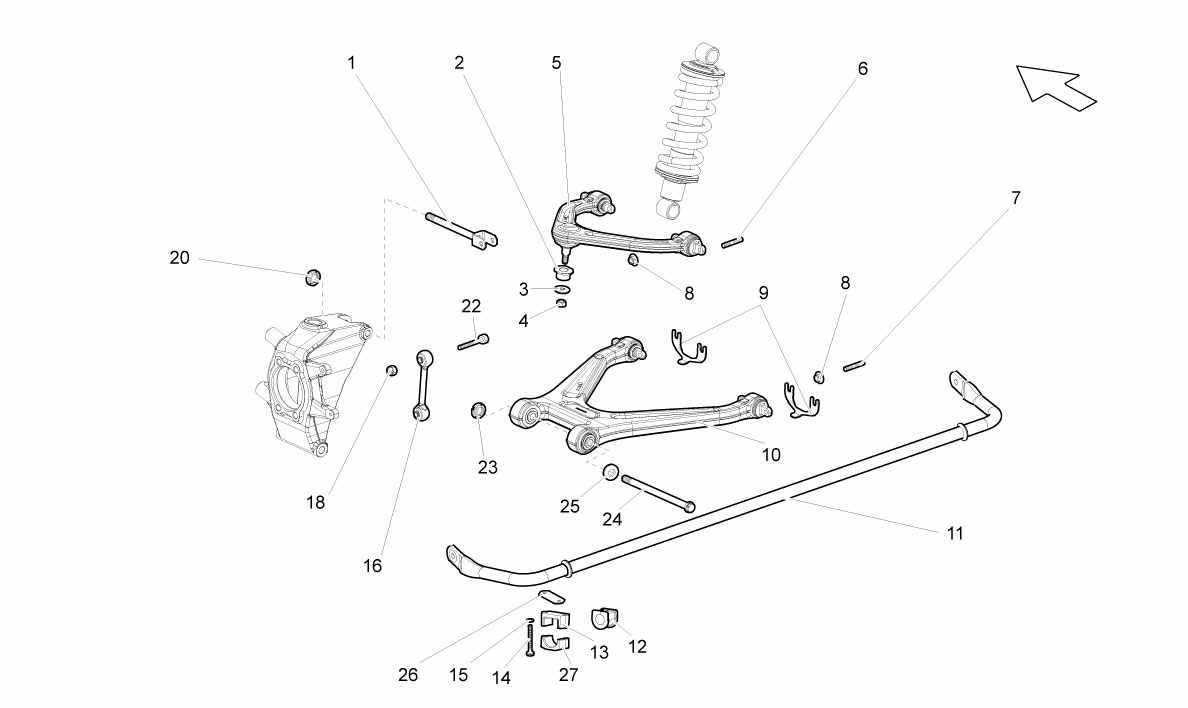

REAR ARMS

Go to Split View

REAR ARMS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 400505183D *Qty: 2 SCREW $49.79
Location: 2 Prev | Next Part: 400407171B *Qty: 2 BUSHING $62.49
Location: 3 Prev | Next Part: 400505179B *Qty: 2 SPACER $37.35
Location: 4 Prev | Next Part: N90323706 *Qty: 2 NUT M12X1-5 $3.31
Location: 5 Prev | Next Part: 400505323B *Qty: 2 UPPER ARM $1,603.77
Location: 6 Prev | Next Part: N91062101 *Qty: 8 STUD BOLT $5.14
Location: 7 Prev | Next Part: N91062001 *Qty: 8 STUD BOLT $14.50
Location: 8 Prev | Next Part: N90226404 *Qty: 16 NUT $0.90
Location: 9 Prev | Next Part: 400407379D *Qty: 16 2.5 MM SHIM $9.66
Location: 9 Prev | Next Part: 400407379E *Qty: 16 3.0 MM SHIM $9.66
Location: 9 Prev | Next Part: 400407379C *Qty: 16 2.0 MM SHIM $9.66
Location: 9 Prev | Next Part: 400407379B *Qty: 16 1.5 MM SHIM $10.15
Location: 9 Prev | Next Part: 400407379A *Qty: 16 1.0 MM SHIM $24.65
Location: 9 Prev | Next Part: 400407379 *Qty: 16 0.5 MM SHIM $4.55
Location: 9 Prev | Next Part: 400407379F *Qty: 16 0.3 MM SHIM $5.11
Location: 10 Prev | Next Part: 400505311B *Qty: 2 LOWER ARM $3,561.79
Location: 11 Prev | Next Part: 400511409C *Qty: 1 REAR STABILIZER BAR $219.65
Location: 12 Prev | Next Part: 8Z0411314 *Qty: 2 BUSHING $22.90
Location: 13 Prev | Next Part: 400511036 *Qty: 1 STABILIZER BAR BRACKET $69.91
Location: 14 Prev | Next Part: WHT000923 *Qty: 4 SCREW $6.13
Location: 15 Prev | Next Part: WHT001197A *Qty: 4 WASHER $0.90
Location: 16 Prev | Next Part: 400505465C *Qty: 2 CONNECTING ROD $73.30
Location: 18 Prev | Next Part: N10286110 *Qty: 4 NUT $0.91
Location: 20 Prev | Next Part: N90323706 *Qty: 2 NUT $3.31
Location: 22 Prev | Next Part: N10699601 *Qty: 4 SCREW $2.73
Location: 23 Prev | Next Part: N10268603 *Qty: 2 NUT $2.08
Location: 24 Prev | Next Part: 400505119 *Qty: 2 SCREW $113.33
Location: 25 Prev | Next Part: 400407742 *Qty: 1 2.0 MM SHIM $3.59
Location: 25 Prev | Next Part: 400407740 *Qty: 1 1.5 MM SHIM $3.14
Location: 25 Prev | Next Part: 400407749 *Qty: 1 0.5 MM SHIM $2.46
Location: 25 Prev | Next Part: 400407739 *Qty: 1 1.0 MM SHIM $2.76
Location: 26 Prev | Next Part: 400411175A *Qty: 2 SPACER $105.91
Location: 27 Prev | Next Part: 400511035 *Qty: 1 STABILIZER BAR BRACKET $41.30

* Quantity shown indicates the number of pieces used in the diagram.
