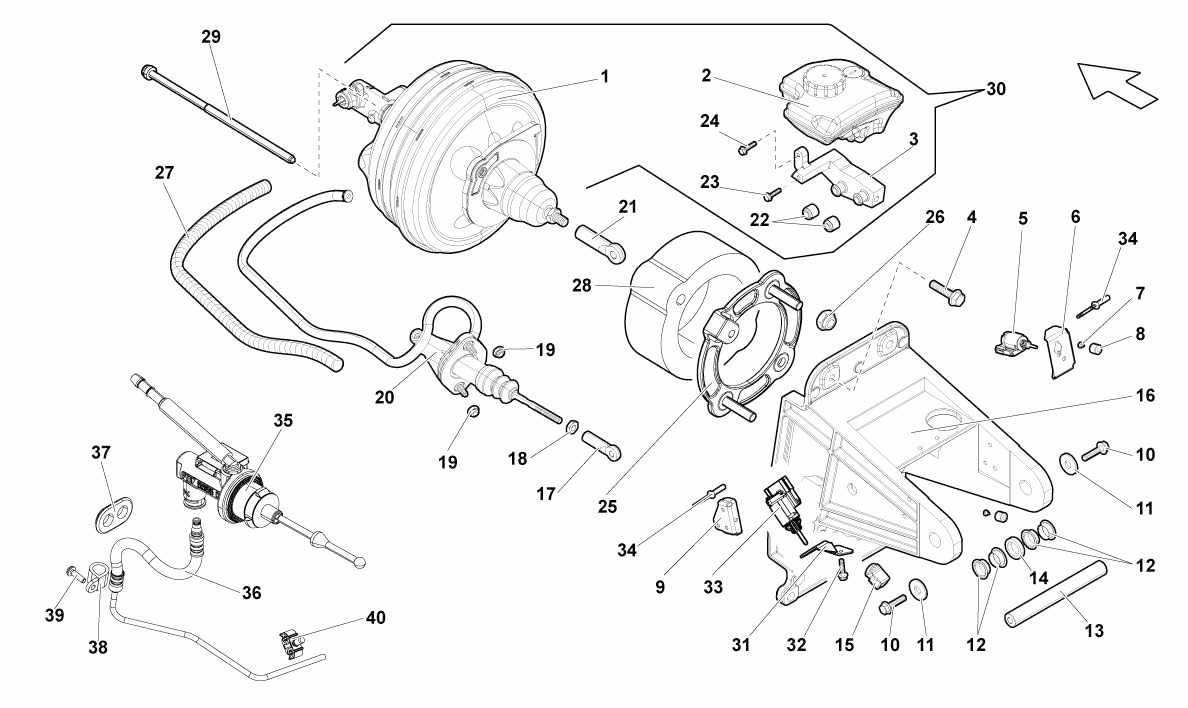

POWER BRAKE (MANUAL)

Go to Split View

POWER BRAKE (MANUAL)

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: *Qty: 1 POWER BRAKE (CANNOT BE SOLD SEPARATELY - SEE REF. 30) Call
Location: 2 Prev | Next Part: 3D0611301B *Qty: 1 POWER BRAKE TANK $111.94
Location: 3 Prev | Next Part: *Qty: 1 SUPPORT (CANNOT BE SOLD SEPARATELY - SEE REF. 30) Call
Location: 4 Prev | Next Part: N10005108 *Qty: 4 SCREW M8X35 $0.96
Location: 5 Prev | Next Part: 3B0945511B *Qty: 1 STOP SWITCH $9.23
Location: 6 Prev | Next Part: 400721633B *Qty: 1 STOP SWITCH SUPPORT $47.54
Location: 7 Prev | Next Part: N10620801 *Qty: 2 SCREW ST3.5X6.5 $0.90
Location: 8 Prev | Next Part: 400721589A *Qty: 1 BUFFER $47.65
Location: 9 Prev | Next Part: 400721534A *Qty: 1 CLUTCH PEDAL STOP SUPPORT (MANUAL GEARBOX) $38.13
Location: 10 Prev | Next Part: N10170509 *Qty: 2 SCREW $0.90
Location: 11 Prev | Next Part: 400721013 *Qty: 2 PLATE $1.21
Location: 12 Prev | Next Part: 400721153A *Qty: 4 BUSHING $2.73
Location: 13 Prev | Next Part: 400721309A *Qty: 1 SHAFT $43.36
Location: 14 Prev | Next Part: 400721308 *Qty: 1 RING (MANUAL GEARBOX) $13.08
Location: 15 Prev | Next Part: 1J1721232A *Qty: 1 END-RACE PLUG (MANUAL GEARBOX) $3.03
Location: 16 Prev | Next Part: 401721117 *Qty: 1 SUPPORT (FOR GSX CARS) $411.54
Location: 17 Prev | Next Part: 400721993A *Qty: 1 BALL JOINT COUPLING $207.07
Location: 18 Prev | Next Part: N01111816 *Qty: 1 WASHER $0.90
Location: 19 Prev | Next Part: N02300313 *Qty: 2 NUT $0.90
Location: 20 Prev | Next Part: 400721401 *Qty: 1 CLUTCH PUMP (MANUAL GEARBOX) $991.99
Location: 21 Prev | Next Part: 401721339 *Qty: 1 BALL JOINT COUPLING (FOR GSX CARS) $144.47
Location: 22 Prev | Next Part: 4A0611817A *Qty: 2 GASKET $9.34
Location: 23 Prev | Next Part: N90533002 *Qty: 1 SCREW M6X20 $1.34
Location: 24 Prev | Next Part: N90638801 *Qty: 1 SCREW M6X30 $0.90
Location: 25 Prev | Next Part: 400614130 *Qty: 1 SPACER $300.06
Location: 26 Prev | Next Part: N0150839 *Qty: 2 NUT $0.90
Location: 27 Prev | Next Part: 400721225 *Qty: 1 SHEATH $0.90
Location: 28 Prev | Next Part: *Qty: 0 SPACER (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 29 Prev | Next Part: N90950502 *Qty: 2 SCREW M8X205X125 $5.54
Location: 30 Prev | Next Part: 400612100A *Qty: 1 POWER BRAKE (COMPLETE) Call
Location: 31 Prev | Next Part: *Qty: 0 SUPPORT (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 32 Prev | Next Part: *Qty: 0 SCREW (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 33 Prev | Next Part: *Qty: 0 SWITCH (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 34 Prev | Next Part: N90659001 *Qty: 6 RIVET $0.93
Location: 35 Prev | Next Part: *Qty: 0 CLUTCH PUMP (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 36 Prev | Next Part: *Qty: 1 PIPE (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 37 Prev | Next Part: *Qty: 0 FAIRLEAD (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 38 Prev | Next Part: *Qty: 0 CLAMP (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 39 Prev | Next Part: *Qty: 0 SCREW M6X20 (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 40 Prev | Next Part: *Qty: 0 CLAMP (VALID FOR A DIFFERENT MODEL YEAR) Call

* Quantity shown indicates the number of pieces used in the diagram.
