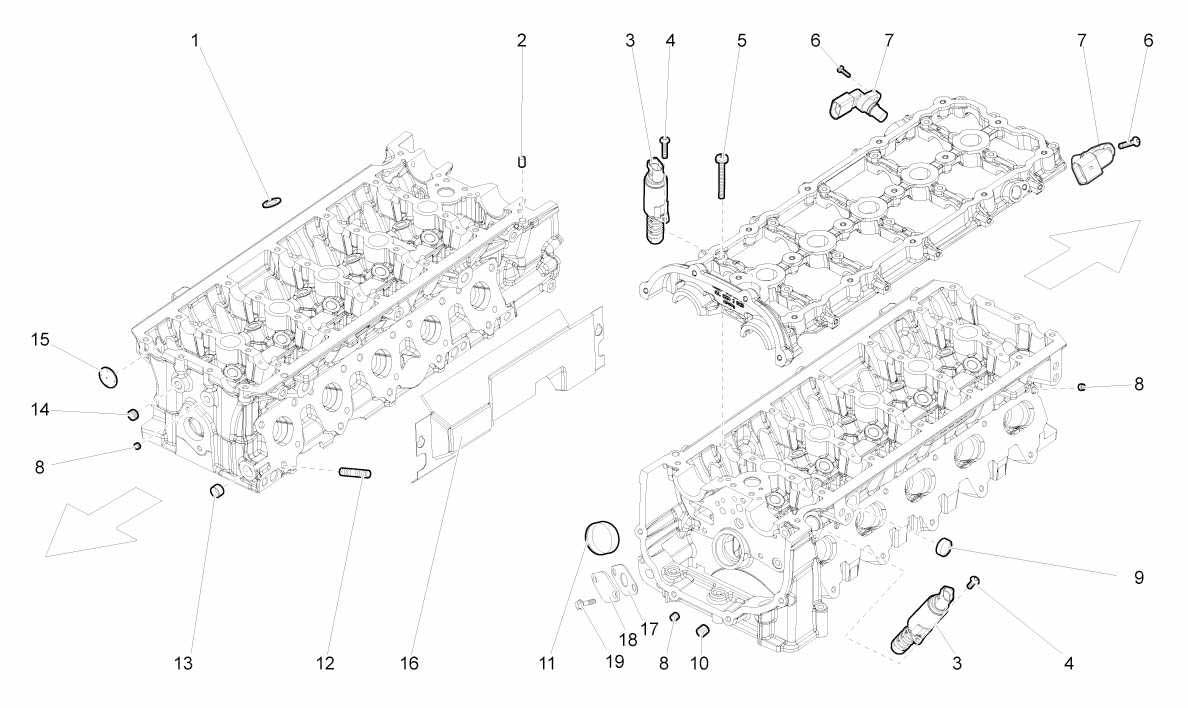

LEFT CYLINDER HEAD

Go to Split View

LEFT CYLINDER HEAD

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 6D103377 *Qty: 12 WASHER $4.22
Location: 2 Prev | Next Part: 6D103251 *Qty: 2 JOURNAL 8M6X32 $5.21
Location: 3 Prev | Next Part: 6E109257J *Qty: 2 VALVE $118.39
Location: 4 Prev | Next Part: N90455205 *Qty: 2 SCREW M4X10.0 $0.90
Location: 5 Prev | Next Part: N10554001 *Qty: 28 SCREW M6X35 8.8 $1.80
Location: 6 Prev | Next Part: N10227803 *Qty: 2 SCREW M6X20 $0.90
Location: 7 Prev | Next Part: 6E905163 *Qty: 2 TIMING SENSOR $47.79
Location: 8 Prev | Next Part: 7L109291 *Qty: 5 PLUG $6.53
Location: 9 Prev | Next Part: N0119012 *Qty: 1 PLUG $1.49
Location: 10 Prev | Next Part: 6E103175B *Qty: 2 CHECK VALVE $12.85
Location: 11 Prev | Next Part: 26103113 *Qty: 1 COVER $2.50
Location: 12 Prev | Next Part: N0444447 *Qty: 15 STUD BOLT M8X20.0 $0.90
Location: 13 Prev | Next Part: N0119071 *Qty: 1 PLUG $0.90
Location: 14 Prev | Next Part: N10630301 *Qty: 1 SCREW M10X1.00 $1.14
Location: 15 Prev | Next Part: 6B103113C *Qty: 2 PLUG $4.13
Location: 16 Prev | Next Part: 400103768 *Qty: 1 HEAT SHIELD $906.21
Location: 17 Prev | Next Part: *Qty: 0 GASKET (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 18 Prev | Next Part: *Qty: 0 PLUG (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 19 Prev | Next Part: *Qty: 0 SCREW M6X16.0 (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call

* Quantity shown indicates the number of pieces used in the diagram.
