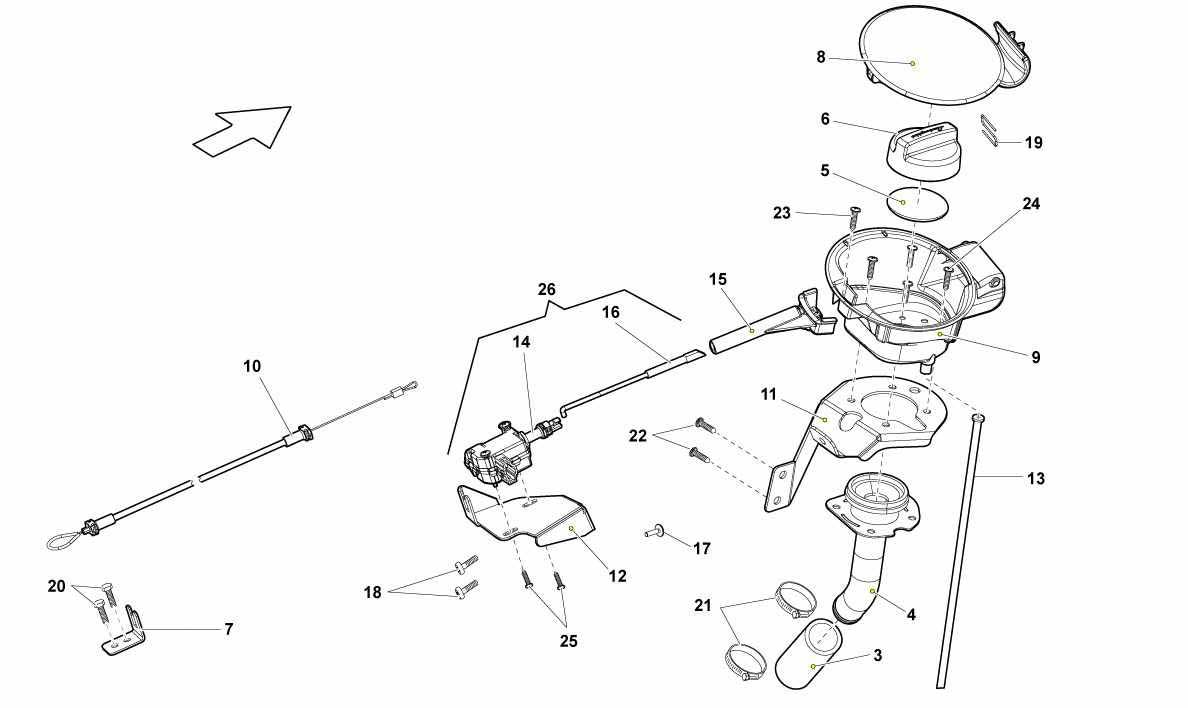

FUEL CAP

Go to Split View

FUEL CAP

in cart
Location Part # *Qty Description Price Add To Cart
Location: 3 Prev | Next Part: 400201130D *Qty: 1 FUEL FILLER PIPE $41.98
Location: 4 Prev | Next Part: 400201137B *Qty: 1 FUEL FILLER ASSY- UPPER $136.23
Location: 4 Prev | Next Part: 400201137B *Qty: 1 FUEL FILLER ASSY- UPPER (FROM VIN 4LA01313) $136.23
Location: 5 Prev | Next Part: 400201557 *Qty: 1 GASKET $111.22
Location: 6 Prev | Next Part: 400201587A *Qty: 1 FUEL FILLER PLUG $659.83
Location: 7 Prev | Next Part: 400809799A *Qty: 1 FUEL FILLER LID CABLE SUPPORT $23.91
Location: 8 Prev | Next Part: 400809909 *Qty: 1 FUEL FILLER LID $140.96
Location: 9 Prev | Next Part: 400809933A *Qty: 1 FUEL FILLER TANK $186.71
Location: 10 Prev | Next Part: 400809977 *Qty: 1 FUEL FILLER LID MANUAL OPENING CABLE $29.65
Location: 11 Prev | Next Part: 400810965A *Qty: 1 FUEL TANK SUPPORT BRACKET $51.16
Location: 12 Prev | Next Part: 400959849A *Qty: 1 ACTUATOR SUPPORT BRACKET $27.28
Location: 13 Prev | Next Part: 8Z0809937 *Qty: 1 WATER DRAIN PIPE $1.47
Location: 14 Prev | Next Part: 8Z0810773A *Qty: 1 ACTUATOR $22.98
Location: 15 Prev | Next Part: 8Z0810901 *Qty: 1 ACTUATOR ROD SUPPORT $2.40
Location: 16 Prev | Next Part: 8Z0862167 *Qty: 1 HORIZONTAL ACTUATOR ROD $16.54
Location: 17 Prev | Next Part: N90732103 *Qty: 1 SCREW 4.0X16 $0.90
Location: 18 Prev | Next Part: N10082911 *Qty: 2 SCREW M6X16.00 $0.90
Location: 19 Prev | Next Part: 1J0809931 *Qty: 1 SPRING $2.31
Location: 20 Prev | Next Part: N10485703 *Qty: 2 SCREW M5X12 $0.90
Location: 21 Prev | Next Part: N91104001 *Qty: 2 CLAMP $6.61
Location: 22 Prev | Next Part: N10082911 *Qty: 2 SCREW M6X16.00 $0.90
Location: 23 Prev | Next Part: N90732103 *Qty: 1 SCREW 4.0X16 $0.90
Location: 24 Prev | Next Part: WHT001190 *Qty: 4 SCREW M5X12 $1.60
Location: 25 Prev | Next Part: *Qty: 2 SCREW (CANNOT BE SOLD SEPARATELY - IT IS PART OF REF. 14) Call
Location: 26 Prev | Next Part: *Qty: 2 ACTUATOR ASSEMBLY (VALID FOR A DIFFERENT MODEL) Call

* Quantity shown indicates the number of pieces used in the diagram.
