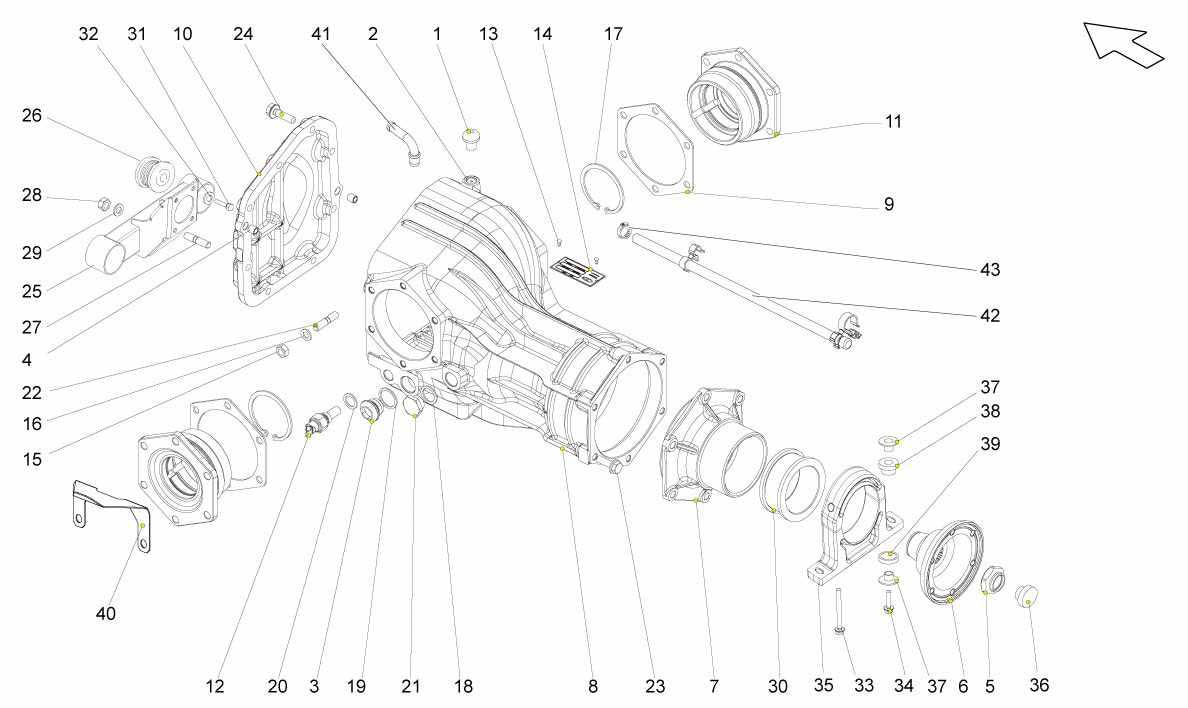

DIFFERENTIAL CASE

Go to Split View

DIFFERENTIAL CASE

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 86301047 *Qty: 1 BREATHER PIPE (UNTIL THE VIN 4982) $19.28
Location: 2 Prev | Next Part: *Qty: 0 GASKET (CANNOT BE SOLD SEPARATELY) Call
Location: 3 Prev | Next Part: 86301141 *Qty: 1 PLUG $13.56
Location: 4 Prev | Next Part: 86301299 *Qty: 2 DOWEL $5.04
Location: 5 Prev | Next Part: 86311495 *Qty: 1 RING NUT $35.47
Location: 6 Prev | Next Part: 86311807B *Qty: 1 FLANGE $200.17
Location: 7 Prev | Next Part: 1S409129 *Qty: 1 FLANGE $222.41
Location: 8 Prev | Next Part: *Qty: 1 DIFFERENTIAL CASE (CANNOT BE SOLD SEPARATELY) Call
Location: 9 Prev | Next Part: 1S409385 *Qty: 2 ADJUSTMENT SHIM $47.65
Location: 10 Prev | Next Part: 1S409410 *Qty: 1 COVER $254.19
Location: 11 Prev | Next Part: 1S409828 *Qty: 2 FLANGE $254.19
Location: 12 Prev | Next Part: 1S919529 *Qty: 1 TEMPERATURE SENSOR $218.59
Location: 13 Prev | Next Part: *Qty: 0 SCREW (CANNOT BE SOLD SEPARATELY) Call
Location: 14 Prev | Next Part: *Qty: 0 NAMEPLATE (CANNOT BE SOLD SEPARATELY) Call
Location: 15 Prev | Next Part: N01100845 *Qty: 12 NUT $0.90
Location: 16 Prev | Next Part: N0115581 *Qty: 12 ROSETTE $0.90
Location: 17 Prev | Next Part: N0123191 *Qty: 2 SEAL RING $4.30
Location: 18 Prev | Next Part: N0138163 *Qty: 1 WASHER $0.90
Location: 19 Prev | Next Part: N0138271 *Qty: 1 GASKET $1.16
Location: 20 Prev | Next Part: N0138492 *Qty: 1 WASHER $0.90
Location: 21 Prev | Next Part: N0160291 *Qty: 1 PLUG $7.36
Location: 22 Prev | Next Part: N04440510 *Qty: 12 STUD BOLT $1.60
Location: 23 Prev | Next Part: N0903295 *Qty: 6 SCREW $1.19
Location: 24 Prev | Next Part: N10128106 *Qty: 8 SCREW $2.99
Location: 25 Prev | Next Part: 400399231C *Qty: 1 SUPPORT $140.32
Location: 26 Prev | Next Part: 400399663 *Qty: 2 SILENTBLOCK $49.26
Location: 27 Prev | Next Part: N0444445 *Qty: 4 STUD BOLT $0.90
Location: 28 Prev | Next Part: N90226404 *Qty: 4 NUT $0.90
Location: 29 Prev | Next Part: 400399195 *Qty: 4 SPACER $3.26
Location: 30 Prev | Next Part: 400399177 *Qty: 1 COLLAR $105.91
Location: 31 Prev | Next Part: N10569802 *Qty: 2 SCREW M12X85 $5.84
Location: 32 Prev | Next Part: N90476702 *Qty: 2 ROSETTE $9.41
Location: 33 Prev | Next Part: N10036203 *Qty: 2 SCREW $5.70
Location: 34 Prev | Next Part: N10140203 *Qty: 2 SCREW $9.00
Location: 35 Prev | Next Part: 400399153A *Qty: 1 SUPPORT $222.41
Location: 36 Prev | Next Part: 1S409966 *Qty: 1 RUBBER PLUG $12.55
Location: 37 Prev | Next Part: 400399195A *Qty: 4 SPACER $7.84
Location: 38 Prev | Next Part: 400399177A *Qty: 2 SILENTBLOCK $8.66
Location: 39 Prev | Next Part: 400399177B *Qty: 2 SPACER $2.86
Location: 40 Prev | Next Part: *Qty: 0 SUPPORT (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 41 Prev | Next Part: 2D525118B *Qty: 1 BREATHER PIPE (FROM VIN 4983) $9.92
Location: 42 Prev | Next Part: 1S409831 *Qty: 1 BREATHER PIPE (FROM VIN 4983) $50.85
Location: 43 Prev | Next Part: N90686701 *Qty: 1 CLAMP (FROM VIN 4983) $1.36

* Quantity shown indicates the number of pieces used in the diagram.
