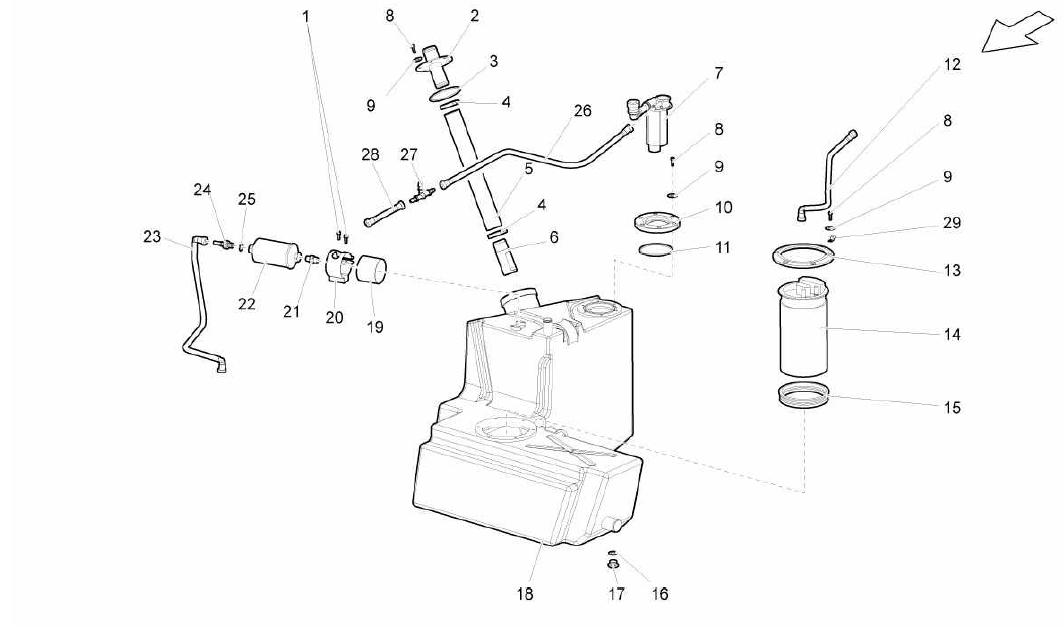

RH TANK

Go to Split View

RH TANK

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: N10207001 *Qty: 2 SCREW $0.90
Location: 2 Prev | Next Part: 400201138 *Qty: 1 PIPE UNION (UNTIL THE VIN 4LA01312) $82.53
Location: 2 Prev | Next Part: 400201138A *Qty: 1 PIPE UNION (FROM VIN 4LA01313) $108.67
Location: 3 Prev | Next Part: WHT001174 *Qty: 1 O-RING $7.47
Location: 4 Prev | Next Part: 8834004 *Qty: 2 CLAMP $7.80
Location: 5 Prev | Next Part: 400201841A *Qty: 1 PIPE $119.20
Location: 6 Prev | Next Part: 400201345 *Qty: 1 VALVE $364.45
Location: 7 Prev | Next Part: 400201521 *Qty: 1 FLOATING VALVE $398.66
Location: 8 Prev | Next Part: WHT001194 *Qty: 6 SCREW $0.90
Location: 9 Prev | Next Part: WHT001187 *Qty: 6 WASHER $0.90
Location: 10 Prev | Next Part: 400201768 *Qty: 1 FLANGE $147.64
Location: 11 Prev | Next Part: WHT001173 *Qty: 1 RING $9.47
Location: 12 Prev | Next Part: 400201216B *Qty: 1 RH PIPE $82.53
Location: 13 Prev | Next Part: 400201099 *Qty: 1 FLANGE $84.73
Location: 14 Prev | Next Part: 8L0919051H *Qty: 1 PUMP $578.73
Location: 15 Prev | Next Part: 1J0919133 *Qty: 1 GASKET $16.04
Location: 16 Prev | Next Part: WHT003362 *Qty: 1 WASHER (UNTIL THE VIN 5LA02250) $1.04
Location: 17 Prev | Next Part: 8931203 *Qty: 1 PLUG (UNTIL THE VIN 5LA02250) $25.89
Location: 18 Prev | Next Part: 400201076 *Qty: 1 RH TANK $3,020.89
Location: 19 Prev | Next Part: 400201558 *Qty: 1 GASKET $2.40
Location: 20 Prev | Next Part: 400201255 *Qty: 1 BRACKET $9.51
Location: 21 Prev | Next Part: 400201149A *Qty: 1 CONNECTOR $34.97
Location: 22 Prev | Next Part: 400201511A *Qty: 1 FUEL FILTER (UP TO MY05 USE 400201558A) $109.21
Location: 23 Prev | Next Part: 400201214 *Qty: 1 RH PIPE $80.05
Location: 24 Prev | Next Part: 400201149 *Qty: 1 CONNECTOR $47.34
Location: 25 Prev | Next Part: 400201349 *Qty: 1 WASHER $9.11
Location: 26 Prev | Next Part: 400201163A *Qty: 1 VENT PIPE $49.61
Location: 27 Prev | Next Part: *Qty: 0 0 Call
Location: 27 Prev | Next Part: 400201382 *Qty: 1 CONNECTOR $2.63
Location: 28 Prev | Next Part: 400201163B *Qty: 1 VENT PIPE $21.36
Location: 29 Prev | Next Part: 400201211 *Qty: 1 FASTON $2.40

* Quantity shown indicates the number of pieces used in the diagram.
