OIL COOLER

Go to Split View

OIL COOLER

in cart

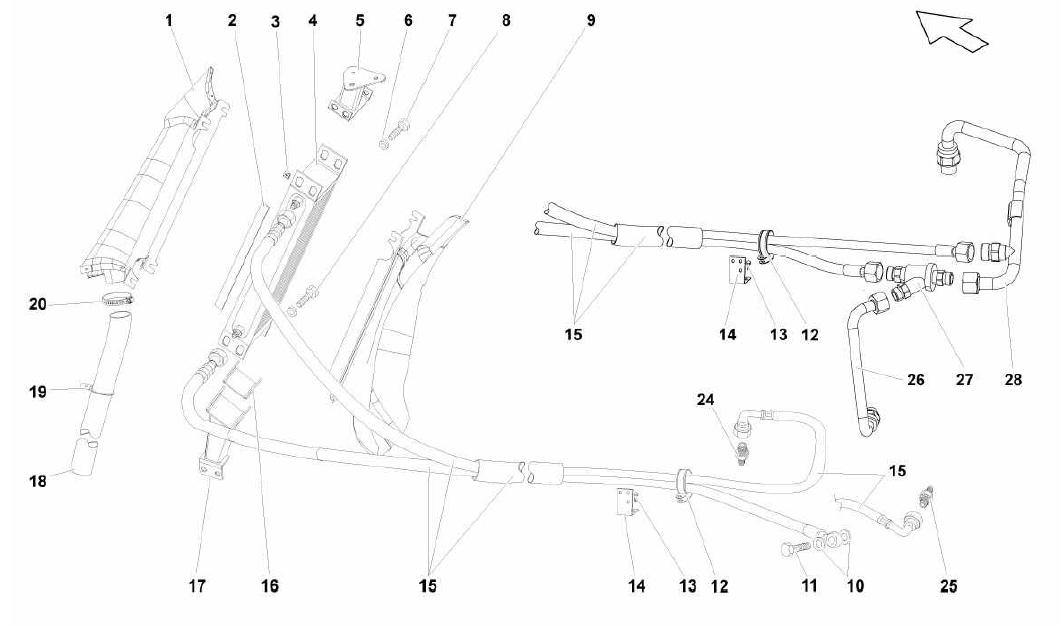

Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 400317026 *Qty: 1 RH CONVEYOR $413.38
Location: 2 Prev | Next Part: 400121539B *Qty: 4 GASKET $17.61
Location: 3 Prev | Next Part: 400827947 *Qty: 2 CLIP $19.58
Location: 4 Prev | Next Part: 86317019A *Qty: 1 OIL COOLER (UNTIL THE VIN 5LA02429) $1,622.95
Location: 5 Prev | Next Part: 400317830A *Qty: 1 BRACKET $41.85
Location: 6 Prev | Next Part: N90533002 *Qty: 4 WASHER $1.34
Location: 7 Prev | Next Part: N90533002 *Qty: 2 SCREW $1.34
Location: 8 Prev | Next Part: N10095502 *Qty: 2 SCREW $0.90
Location: 9 Prev | Next Part: 400117336 *Qty: 1 COOLER EXIT CONE $551.11
Location: 10 Prev | Next Part: N0138481 *Qty: 2 WASHER (UNTIL THE VIN 5LA02429) $0.90
Location: 11 Prev | Next Part: N0210725 *Qty: 1 SCREW (UNTIL THE VIN 5LA02429) $5.34
Location: 12 Prev | Next Part: 86317171A *Qty: 1 CLAMP $2.15
Location: 13 Prev | Next Part: N90216903 *Qty: 2 SCREW $2.07
Location: 14 Prev | Next Part: 86317829 *Qty: 2 BRACKET $30.80
Location: 15 Prev | Next Part: 400317806 *Qty: 1 PIPES SET (UNTIL THE VIN 5LA02429) $1,868.10
Location: 16 Prev | Next Part: 400121539C *Qty: 2 GASKET $13.44
Location: 17 Prev | Next Part: 400317829B *Qty: 1 BRACKET $291.27
Location: 18 Prev | Next Part: 400903667 *Qty: 1 PIPE SET $220.99
Location: 19 Prev | Next Part: 400131437 *Qty: 1 RING $15.31
Location: 20 Prev | Next Part: N91115301 *Qty: 1 CLAMP $6.63
Location: 25 Prev | Next Part: 86122265 *Qty: 1 CONNECTOR (UNTIL THE VIN 5LA02429) $12.55
Location: 26 Prev | Next Part: *Qty: 0 PIPE (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 27 Prev | Next Part: *Qty: 0 TEMPERATURE REGULATOR (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 28 Prev | Next Part: *Qty: 0 PIPE (VALID FOR A DIFFERENT MODEL YEAR) Call

* Quantity shown indicates the number of pieces used in the diagram.
