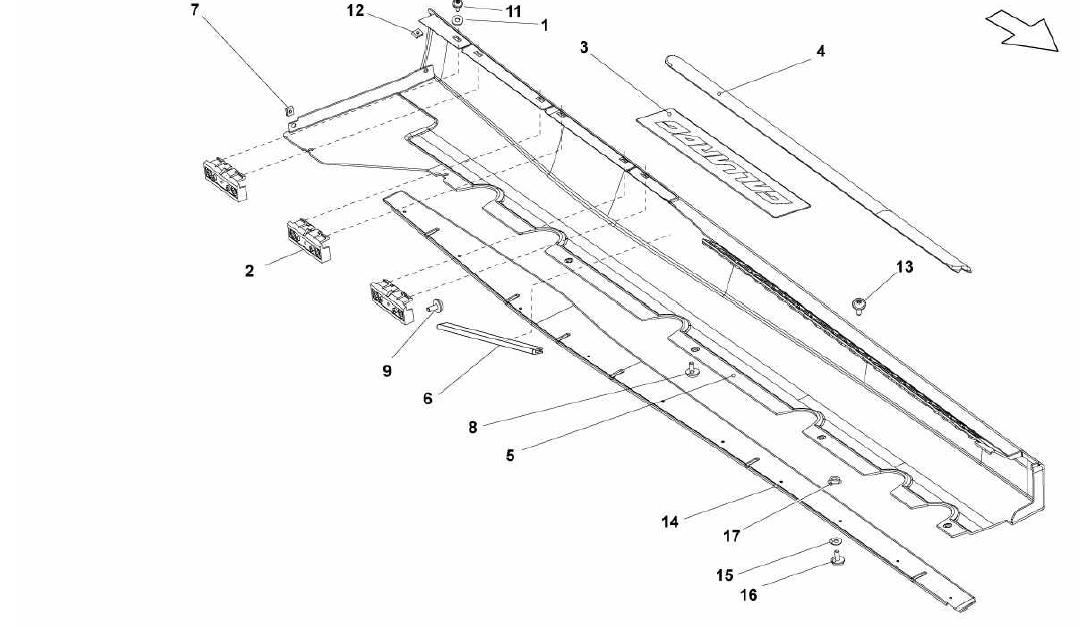

EXTERNAL SIDE MEMBER

Go to Split View

EXTERNAL SIDE MEMBER

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: WHT000778 *Qty: 12 WASHER $0.90
Location: 2 Prev | Next Part: 400807286 *Qty: 6 BUMPER SIDE BRACKET $58.07
Location: 3 Prev | Next Part: 400853373 *Qty: 2 SCUFF PLATE $85.39
Location: 4 Prev | Next Part: 400853492 *Qty: 1 RH SIDE MEMBER MOLDING $1,501.88
Location: 4 Prev | Next Part: 400853491 *Qty: 1 LH SIDE MEMBER MOLDING $1,501.88
Location: 5 Prev | Next Part: 400853564 *Qty: 1 SIDE MEMBER COVER- OUTER RH $816.21
Location: 5 Prev | Next Part: 400853563 *Qty: 1 SIDE MEMBER COVER- OUTER LH $816.21
Location: 6 Prev | Next Part: 400853893 *Qty: 2 SIDE MEMBER SEAL $6.70
Location: 7 Prev | Next Part: 400827947 *Qty: 8 CLIP $19.58
Location: 8 Prev | Next Part: N90807401 *Qty: 6 SCREW $0.90
Location: 9 Prev | Next Part: N90847901 *Qty: 12 SCREW $0.90
Location: 11 Prev | Next Part: WHT001190 *Qty: 12 SCREW $1.60
Location: 12 Prev | Next Part: 400827947 *Qty: 8 CLIP $19.58
Location: 13 Prev | Next Part: N90857301 *Qty: 12 SCREW $0.90
Location: 14 Prev | Next Part: *Qty: 1 SIDE SKIRT (VALID FOR A DIFFERENT MODEL) Call
Location: 15 Prev | Next Part: *Qty: 20 WASHER (VALID FOR A DIFFERENT MODEL) Call
Location: 16 Prev | Next Part: *Qty: 20 SCREW (VALID FOR A DIFFERENT MODEL) Call
Location: 17 Prev | Next Part: *Qty: 20 NUT M5 (VALID FOR A DIFFERENT MODEL) Call

* Quantity shown indicates the number of pieces used in the diagram.
