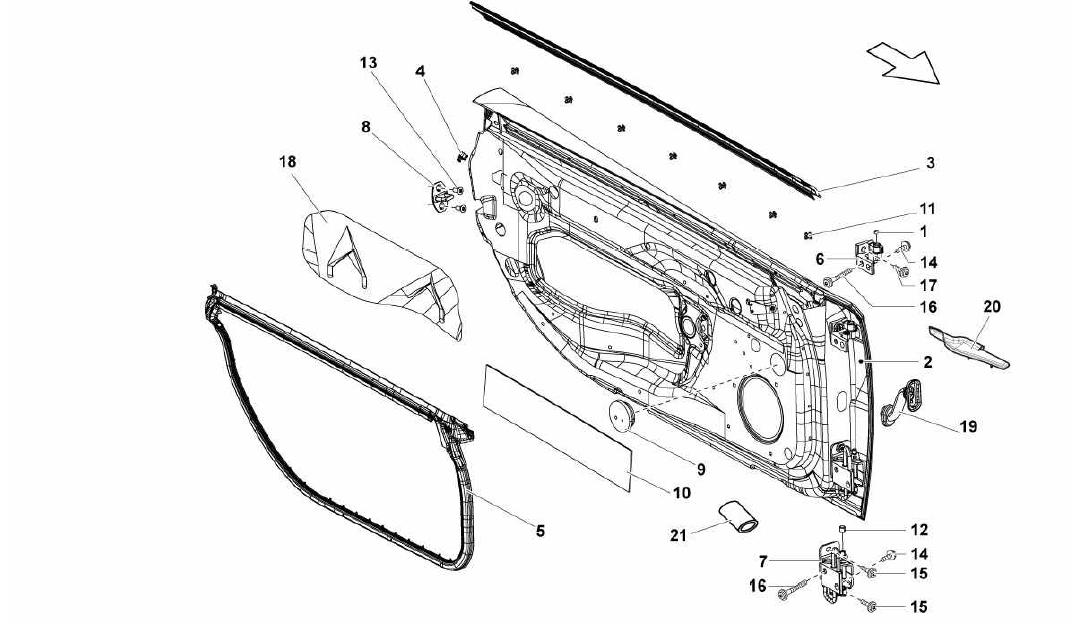

DOORS

Go to Split View

DOORS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 1H0837947 *Qty: 2 SCREW COVER $0.90
Location: 2 Prev | Next Part: 400831022 *Qty: 1 DOOR- RH $9,342.32
Location: 2 Prev | Next Part: 400831021 *Qty: 1 DOOR- LH $9,342.32
Location: 3 Prev | Next Part: 400837478A *Qty: 1 GLASS WEATHERSTRIP- RH $115.98
Location: 3 Prev | Next Part: 400837477A *Qty: 1 GLASS WEATHERSTRIP- LH $115.98
Location: 4 Prev | Next Part: 400837498 *Qty: 1 COUPLING RING- RH $4.32
Location: 4 Prev | Next Part: 400837497 *Qty: 1 COUPLING RING- LH $4.32
Location: 5 Prev | Next Part: 400837912 *Qty: 1 DOOR WEATHERSTRIP- OUTER RH $259.75
Location: 5 Prev | Next Part: 400837911 *Qty: 1 DOOR WEATHERSTRIP- OUTER LH $259.75
Location: 6 Prev | Next Part: 4E0831402 *Qty: 1 HINGE- UPPER RH $124.87
Location: 6 Prev | Next Part: 4E0831401 *Qty: 1 HINGE- UPPER LH $124.87
Location: 7 Prev | Next Part: 4E0831412 *Qty: 1 HINGE- LOWER RH $60.37
Location: 7 Prev | Next Part: 4E0831411 *Qty: 1 HINGE- LOWER LH $60.37
Location: 8 Prev | Next Part: 8E0837033 *Qty: 2 CLOSING BRACKET $14.14
Location: 9 Prev | Next Part: 8E0971841E *Qty: 2 BUSHING $8.35
Location: 10 Prev | Next Part: 8L0837805 *Qty: 4 INSULATING COVERING $3.21
Location: 11 Prev | Next Part: 8L3837199B *Qty: 16 WINDOW COVERING FASTENER $0.90
Location: 12 Prev | Next Part: 8L3837947 *Qty: 2 SCREW COVER $0.90
Location: 13 Prev | Next Part: N0902941 *Qty: 6 SCREW $0.90
Location: 14 Prev | Next Part: 8Z0837453 *Qty: 4 SCREW M8X40 $3.72
Location: 15 Prev | Next Part: 8L0837453 *Qty: 4 SCREW M8X27 $0.90
Location: 16 Prev | Next Part: N91060501 *Qty: 4 SCREW M8X130X80 $42.36
Location: 17 Prev | Next Part: 8H0831701 *Qty: 4 SCREW M10X34 $1.62
Location: 18 Prev | Next Part: 400863980 *Qty: 1 RH INSULATION $16.07
Location: 18 Prev | Next Part: 400863979 *Qty: 1 LH INSULATION $16.07
Location: 19 Prev | Next Part: 8P3959845A *Qty: 2 SHEATH $7.03
Location: 20 Prev | Next Part: *Qty: 0 0 Call
Location: 20 Prev | Next Part: 400863052 *Qty: 1 RH COVER $4.33
Location: 20 Prev | Next Part: 400863051 *Qty: 1 LH COVER $4.33
Location: 21 Prev | Next Part: *Qty: 0 SLEEVE (VALID FOR A DIFFERENT MODEL) Call

* Quantity shown indicates the number of pieces used in the diagram.
