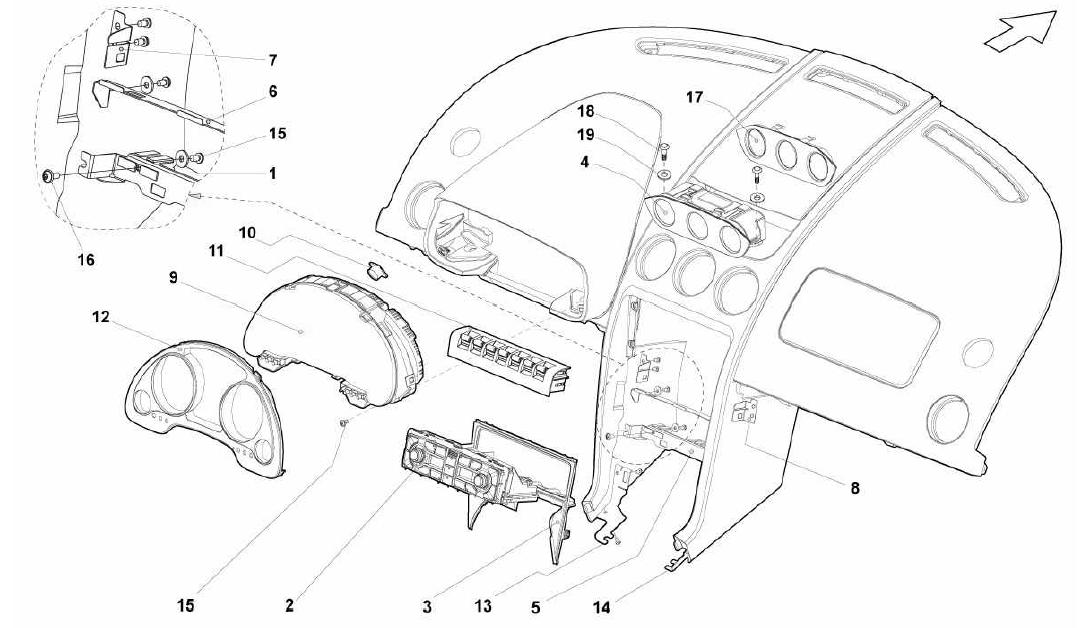

DASHBOARD INSTRUMENTS

Go to Split View

DASHBOARD INSTRUMENTS

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: *Qty: 0 CARS) Call
Location: 1 Prev | Next Part: WHT000778 *Qty: 4 WASHER $0.90
Location: 2 Prev | Next Part: 400820043 *Qty: 1 CLIMATE CONTROL PANEL (WITHOUT HEATED SEATS - UP TO VIN 4LA00813) $2,087.42
Location: 2 Prev | Next Part: 400820043B *Qty: 1 CLIMATE CONTROL PANEL (WITHOUT HEATED SEATS - FROM VIN 4LA00814) $1,251.89
Location: 2 Prev | Next Part: 400820043C *Qty: 1 CLIMATE CONTROL PANEL (WITH HEATED SEATS - FROM VIN 4LA00832) $1,296.35
Location: 2 Prev | Next Part: 400820043A *Qty: 1 CLIMATE CONTROL PANEL (WITH HEATED SEATS ? UP TO VIN 4LA00832) $1,692.23
Location: 3 Prev | Next Part: 400820319 *Qty: 1 ORNAMENT Call
Location: 4 Prev | Next Part: 400857251 *Qty: 1 CENTER INSTRUMENTS ASSEMBLY $455.10
Location: 5 Prev | Next Part: 400861393 *Qty: 1 BRACKET $35.50
Location: 6 Prev | Next Part: 400861400 *Qty: 1 BRACKET $10.04
Location: 7 Prev | Next Part: 400862409A *Qty: 1 BRACKET $7.71
Location: 8 Prev | Next Part: 400862410A *Qty: 1 BRACKET $7.71
Location: 9 Prev | Next Part: 400920900A *Qty: 1 INSTRUMENT PANEL (KM/H - MPH - COMBINED ENGINE SPEED INDICATOR - CLOCK - SPEEDOMETER INSTRUMENTATION FOR USA $2,439.04
Location: 10 Prev | Next Part: 400927521 *Qty: 1 REVERCE SWITCH (FOR E-GEAR) $61.15
Location: 11 Prev | Next Part: 401941567 *Qty: 1 SWITCH $826.75
Location: 12 Prev | Next Part: 400857053D *Qty: 1 ORNAMENT (COMBINED INSTRUMENTATION FOR E-GEAR) $223.77
Location: 12 Prev | Next Part: 400857053E *Qty: 1 ORNAMENT $223.77
Location: 13 Prev | Next Part: 400863253B *Qty: 1 SUPPORT $10.81
Location: 14 Prev | Next Part: 400863254B *Qty: 1 SUPPORT $10.81
Location: 15 Prev | Next Part: N10406602 *Qty: 14 SCREW M5X8.0 $0.90
Location: 16 Prev | Next Part: N90944603 *Qty: 2 SCREW M5X12.0 $0.90
Location: 17 Prev | Next Part: *Qty: 1 TRIM (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 18 Prev | Next Part: *Qty: 0 0 Call
Location: 18 Prev | Next Part: N10686101 *Qty: 2 SCREW $0.90
Location: 19 Prev | Next Part: 400868563B *Qty: 2 WASHER $7.47
Location: 43 Prev | Next Part: *Qty: 0 0 Call

* Quantity shown indicates the number of pieces used in the diagram.
