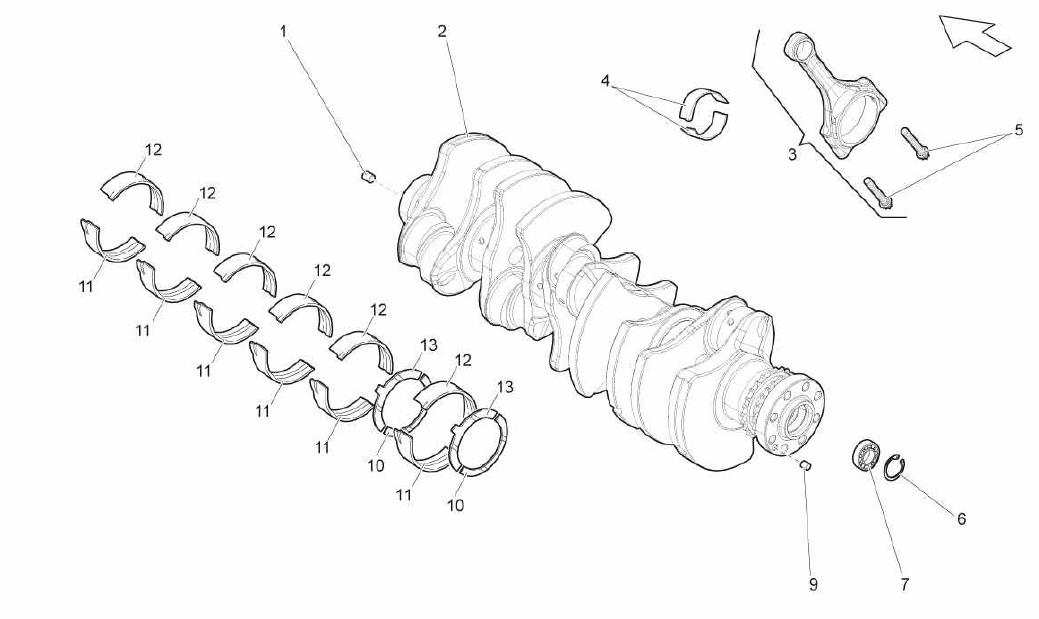

CRANKSHAFT - CONNECTING ROD

Go to Split View

CRANKSHAFT - CONNECTING ROD

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 78260817 *Qty: 3 BUSHING $1.21
Location: 2 Prev | Next Part: 7L105019C *Qty: 1 CRANKSHAFT $10,947.05
Location: 3 Prev | Next Part: 7L105401B *Qty: 10 COMPLETE CONNECTING ROD (UNTIL THE VIN 4LA01476 USE COMPLETE SERIES OF COD. 07L105401D) $1,419.01
Location: 3 Prev | Next Part: 7L105401D *Qty: 10 COMPLETE CONNECTING ROD (FROM VIN 4LA01477) $184.09
Location: 4 Prev | Next Part: 79105701D *Qty: 20 BRASS $36.86
Location: 5 Prev | Next Part: 78105425F *Qty: 10 SCREW M8.5X1X50 $6.12
Location: 6 Prev | Next Part: N0123031 *Qty: 1 SEEGER 32X1.20 $1.49
Location: 7 Prev | Next Part: 7L105276 *Qty: 1 BEARING $29.60
Location: 9 Prev | Next Part: N0131991 *Qty: 1 PIN $0.93
Location: 10 Prev | Next Part: 77105637A *Qty: 2 WASHER $14.30
Location: 11 Prev | Next Part: 79105591B *Qty: 6 BEARING YELLOW $17.69
Location: 11 Prev | Next Part: 79105591A *Qty: 6 BEARING RED $17.69
Location: 11 Prev | Next Part: 79105591C *Qty: 6 BEARING BLUE $17.69
Location: 12 Prev | Next Part: 79105561B *Qty: 6 BEARING YELLOW $17.69
Location: 12 Prev | Next Part: 79105561A *Qty: 6 BEARING RED $17.69
Location: 12 Prev | Next Part: 79105561C *Qty: 6 BEARING BLUE $17.69
Location: 13 Prev | Next Part: 77105635A *Qty: 2 WASHER $14.30

* Quantity shown indicates the number of pieces used in the diagram.
