COVERING

Go to Split View

COVERING

in cart

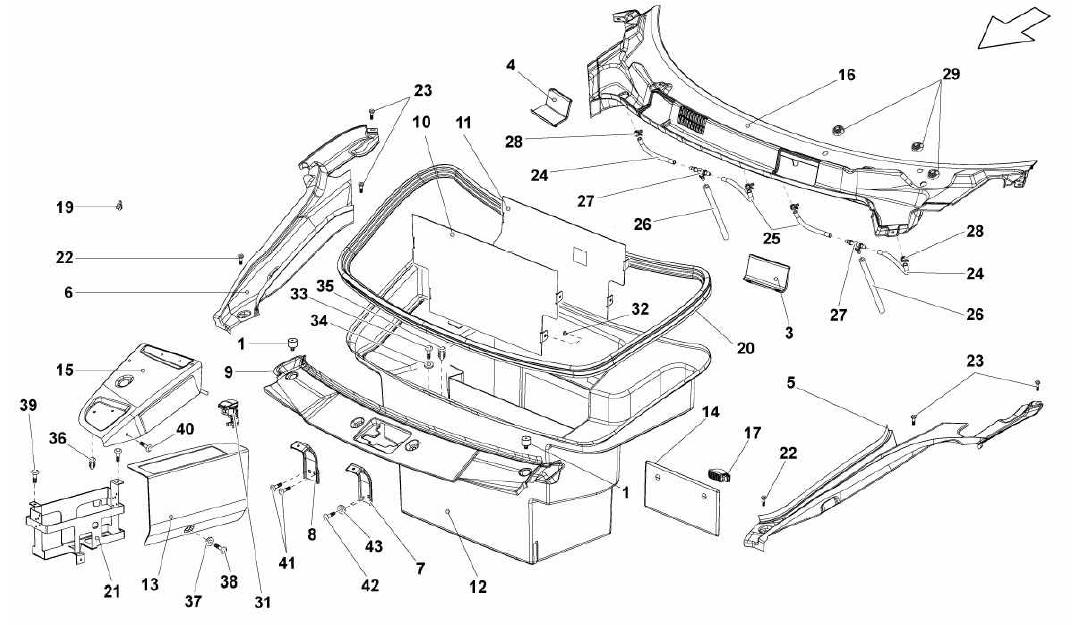

Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 400863309 *Qty: 2 RUBBER SUPPORT $8.96
Location: 3 Prev | Next Part: 400815715 *Qty: 1 LID- LH $388.57
Location: 4 Prev | Next Part: 400815716 *Qty: 1 LID- RH $388.57
Location: 5 Prev | Next Part: 400821169A *Qty: 1 COVER- LH $202.37
Location: 6 Prev | Next Part: 400821170A *Qty: 1 COVER- RH $202.37
Location: 7 Prev | Next Part: 400857913 *Qty: 1 FIXING CORNER $17.59
Location: 8 Prev | Next Part: 400857914 *Qty: 1 FIXING CORNER $17.59
Location: 9 Prev | Next Part: 400857161A *Qty: 1 COVER PLATE $62.59
Location: 10 Prev | Next Part: 400863062C *Qty: 1 LUGGAGE COMPARTMENT PANEL FOR USA (LUGGAGE COMPARTMENT WITHOUT TRUNK ENTRAPMENT - CD CHANGER) $307.16
Location: 11 Prev | Next Part: 400863062B *Qty: 1 LUGGAGE COMPARTMENT PANEL FOR USA (LUGGAGE COMPARTMENT WITH TRUNK ENTRAPMENT - CD CHANGER) $312.36
Location: 12 Prev | Next Part: 400863362G *Qty: 1 LUGGAGE COMPARMENT ASSY- FRONT (LUGGAGE COMPARTMENT WITHOUT TRUNK ENTRAPMENT - CD CHANGER) $3,260.87
Location: 12 Prev | Next Part: 400863362J *Qty: 1 LUGGAGE COMPARMENT ASSY- FRONT (LUGGAGE COMPARTMENT WITH TRUNK ENTRAPMENT - CD CHANGER) $1,793.48
Location: 13 Prev | Next Part: 400863399A *Qty: 1 CD CHANGER COVER $286.07
Location: 14 Prev | Next Part: 400863439 *Qty: 1 BATTERY INSPECTION LID $317.74
Location: 15 Prev | Next Part: 400863505A *Qty: 1 TV TUNER COVER (NAVIGATION SYSTEM WITH COLOUR DISPLAY) $775.63
Location: 16 Prev | Next Part: 401819413 *Qty: 1 COWL TOP COVER- LHD $2,553.17
Location: 17 Prev | Next Part: 4B0947415A *Qty: 1 DOOR COURTESY LIGHT $16.37
Location: 19 Prev | Next Part: N90685101 *Qty: 1 CONNECTOR SUPPORT (STANDARD EQUIPMENT FOR THE CD CHANGER) $3.14
Location: 20 Prev | Next Part: 400864669 *Qty: 1 FRONT HOOD COMPARTMENT $158.87
Location: 21 Prev | Next Part: 400863762 *Qty: 1 CD LOADER SUPPORT BRACKET $219.98
Location: 22 Prev | Next Part: N10284903 *Qty: 4 SCREW M6X8.0 $0.90
Location: 23 Prev | Next Part: N90737103 *Qty: 4 SCREW M6X12.0 $0.90
Location: 24 Prev | Next Part: *Qty: 0 0 Call
Location: 24 Prev | Next Part: 400819976 *Qty: 2 HOSE (L 315 MM) $22.57
Location: 25 Prev | Next Part: 400819975 *Qty: 2 HOSE (L 272 MM) $23.61
Location: 26 Prev | Next Part: 400819124 *Qty: 2 HOSE (L 624 MM) $25.55
Location: 27 Prev | Next Part: N90693001 *Qty: 2 CONNECTOR $10.00
Location: 28 Prev | Next Part: N10310001 *Qty: 4 CLAMP $1.64
Location: 29 Prev | Next Part: 1J0955276B *Qty: 3 COVER $7.47
Location: 32 Prev | Next Part: 400863119 *Qty: 4 PLUG 8X14-5 (LUGGAGE COMPARTMENT WITH TRUNK ENTRAPMENT) $0.90
Location: 33 Prev | Next Part: WHT000757 *Qty: 4 SCREW M6X16 $3.90
Location: 34 Prev | Next Part: N0116946 *Qty: 4 WASHER $0.90
Location: 35 Prev | Next Part: 400863119 *Qty: 4 PLUG 8X14-5 $0.90
Location: 36 Prev | Next Part: 400867299 *Qty: 3 FASTENER LYS FUSION- YELLOW $0.90
Location: 37 Prev | Next Part: N10612001 *Qty: 1 WASHER $0.90
Location: 38 Prev | Next Part: N10680601 *Qty: 1 SCREW M5X30.0 $0.90
Location: 39 Prev | Next Part: WHT001190 *Qty: 2 SCREW M5X12 $1.60
Location: 40 Prev | Next Part: WHT001190 *Qty: 1 SCREW M5X12 $1.60
Location: 41 Prev | Next Part: N90847903 *Qty: 2 SCREW M6X16.00 (WITHAUT SIREN) $0.90
Location: 41 Prev | Next Part: N10082911 *Qty: 2 SCREW M6X16.00 (WITH SIREN) $0.90
Location: 42 Prev | Next Part: WHT001194 *Qty: 2 SCREW M5X14 $0.90
Location: 43 Prev | Next Part: WHT000778 *Qty: 2 WASHER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
