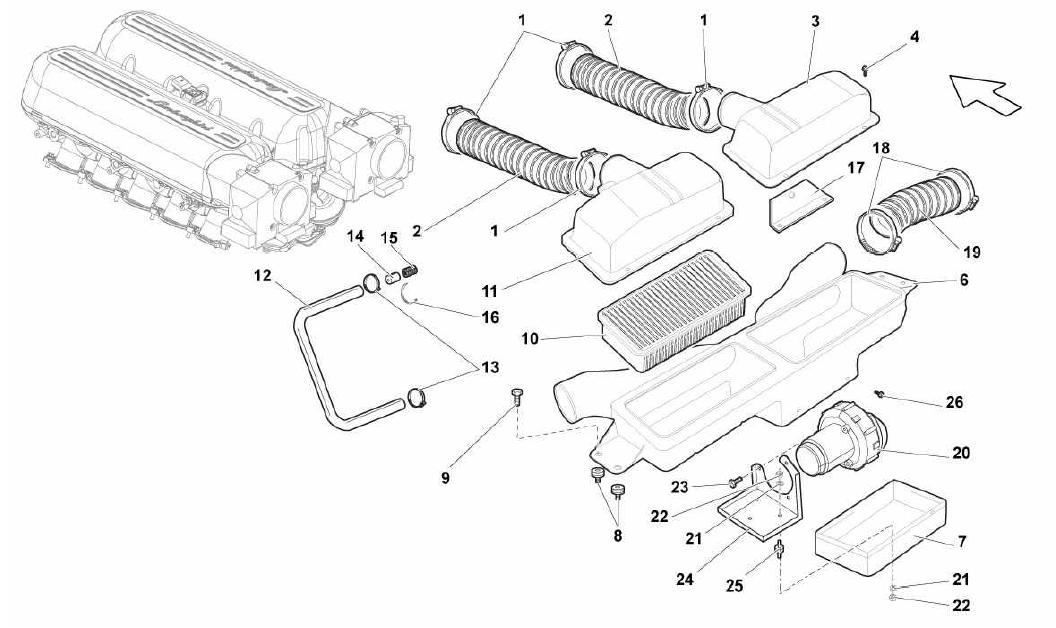

AIR FILTER BOX

Go to Split View

AIR FILTER BOX

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: N0245184 *Qty: 4 CLAMP $3.56
Location: 2 Prev | Next Part: 7L131843A *Qty: 2 PIPE $152.04
Location: 3 Prev | Next Part: 7L133849 *Qty: 1 COVER $1,796.21
Location: 4 Prev | Next Part: 400133001 *Qty: 8 SCREW M6X26 $2.25
Location: 6 Prev | Next Part: 7L133839 *Qty: 1 AIR FILTER BOX $3,265.68
Location: 7 Prev | Next Part: 7L133845A *Qty: 1 COVER $826.66
Location: 8 Prev | Next Part: 7L133741 *Qty: 5 SUPPORT $9.71
Location: 9 Prev | Next Part: N0902322 *Qty: 5 SCREW $0.90
Location: 10 Prev | Next Part: 7L133843 *Qty: 2 FILTERING CARTRIDGE (FOR STANDARD VERSION) $34.69
Location: 11 Prev | Next Part: 7L133919 *Qty: 1 COVER $889.93
Location: 12 Prev | Next Part: 7L115657A *Qty: 1 PIPE $366.80
Location: 13 Prev | Next Part: N90442501 *Qty: 2 CLAMP $3.22
Location: 14 Prev | Next Part: 7L115114 *Qty: 1 BUSHING $11.43
Location: 15 Prev | Next Part: 7L129793 *Qty: 1 FLAME TRAP $45.87
Location: 16 Prev | Next Part: N90937701 *Qty: 2 CLAMP $0.90
Location: 17 Prev | Next Part: 400103587 *Qty: 1 BRACKET $13.20
Location: 18 Prev | Next Part: N0245085 *Qty: 4 CLAMP $5.04
Location: 19 Prev | Next Part: 7L129627 *Qty: 2 PIPE $202.47
Location: 20 Prev | Next Part: 78906601F *Qty: 1 PUMP $621.72
Location: 21 Prev | Next Part: *Qty: 0 WASHER (CANNOT BE SOLD SEPARATELY) Call
Location: 22 Prev | Next Part: *Qty: 0 NUT (CANNOT BE SOLD SEPARATELY) Call
Location: 23 Prev | Next Part: *Qty: 0 SCREW (CANNOT BE SOLD SEPARATELY) Call
Location: 24 Prev | Next Part: *Qty: 0 BRACKET (CANNOT BE SOLD SEPARATELY) Call
Location: 25 Prev | Next Part: *Qty: 0 PUFFER (CANNOT BE SOLD SEPARATELY) Call
Location: 26 Prev | Next Part: 400133001A *Qty: 4 SCREW M6X12 $2.17

* Quantity shown indicates the number of pieces used in the diagram.
