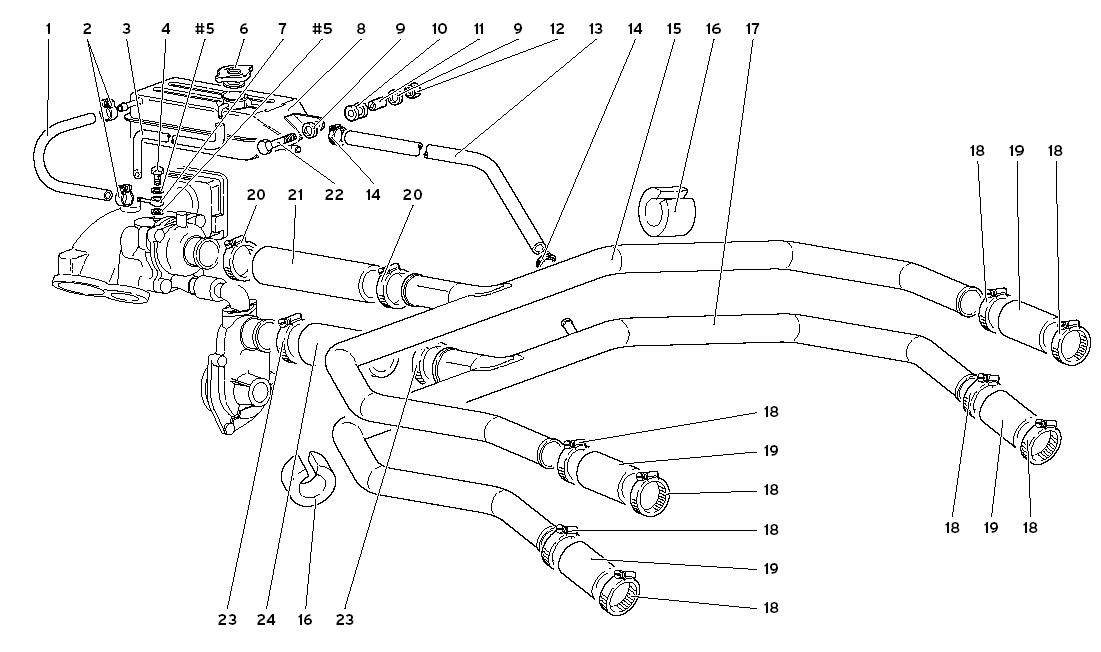

WATER COOLING SYSTEM

Go to Split View

WATER COOLING SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: *Qty: 0 ALSO INCLUDED IN THE ENGINE GASKETS KIT AND MOTOR COVER GASKETS KIT Call
Location: 1 Prev | Next Part: 1733713 *Qty: 1 PIPE (TUBO) Call
Location: 2 Prev | Next Part: 8830817 *Qty: 2 STRAP (FASCETTA) $2.04
Location: 3 Prev | Next Part: 1731993 *Qty: 1 PIPE (TUBO) $12.79
Location: 4 Prev | Next Part: 1733423 *Qty: 1 VENT SCREW (VITE DI SFIATO) $51.09
Location: 5 Prev | Next Part: 8400818 *Qty: 2 WASHER (RONDELLA) Call
Location: 6 Prev | Next Part: 1734185 *Qty: 1 TANK CAP (TAPPO SERBATOIO) $80.45
Location: 7 Prev | Next Part: 1733714 *Qty: 1 CONNECTION (RACCORDO) $26.45
Location: 8 Prev | Next Part: 1733712 *Qty: 1 W/W RESERVOIR (SERBATOIO) $1,599.96
Location: 9 Prev | Next Part: 8400607 *Qty: 2 WASHER (RONDELLA) $0.90
Location: 10 Prev | Next Part: 8610903 *Qty: 1 RUBBER BUSHING (BOCCOLA GOMMA) $12.70
Location: 11 Prev | Next Part: 8800602 *Qty: 1 BUSHING (BOCCOLA) $32.34
Location: 12 Prev | Next Part: 8200606 *Qty: 1 NUT (DADO) $0.90
Location: 13 Prev | Next Part: 1737088 *Qty: 1 PIPE (TUBO) $76.54
Location: 14 Prev | Next Part: 8831524 *Qty: 2 STRAP (FASCETTA) Call
Location: 15 Prev | Next Part: 1735106 *Qty: 1 PIPE (TUBO) $169.80
Location: 16 Prev | Next Part: 1732057 *Qty: 4 SHIELD (PROTEZIONE) $12.90
Location: 17 Prev | Next Part: 17001314 *Qty: 1 PIPE (TUBO) $294.42
Location: 18 Prev | Next Part: 8833001 *Qty: 8 STRAP (FASCETTA) $9.86
Location: 19 Prev | Next Part: 1730574 *Qty: 4 PIPE (TUBO) Call
Location: 20 Prev | Next Part: 8833802 *Qty: 2 STRAP (FASCETTA) $14.31
Location: 21 Prev | Next Part: 1732812 *Qty: 1 PIPE (TUBO) $78.92
Location: 22 Prev | Next Part: 8100623 *Qty: 1 SCREW (VITE) $0.90
Location: 23 Prev | Next Part: 8834501 *Qty: 2 STRAP (FASCETTA) Call
Location: 24 Prev | Next Part: 1730572 *Qty: 1 PIPE (TUBO) Call

* Quantity shown indicates the number of pieces used in the diagram.
