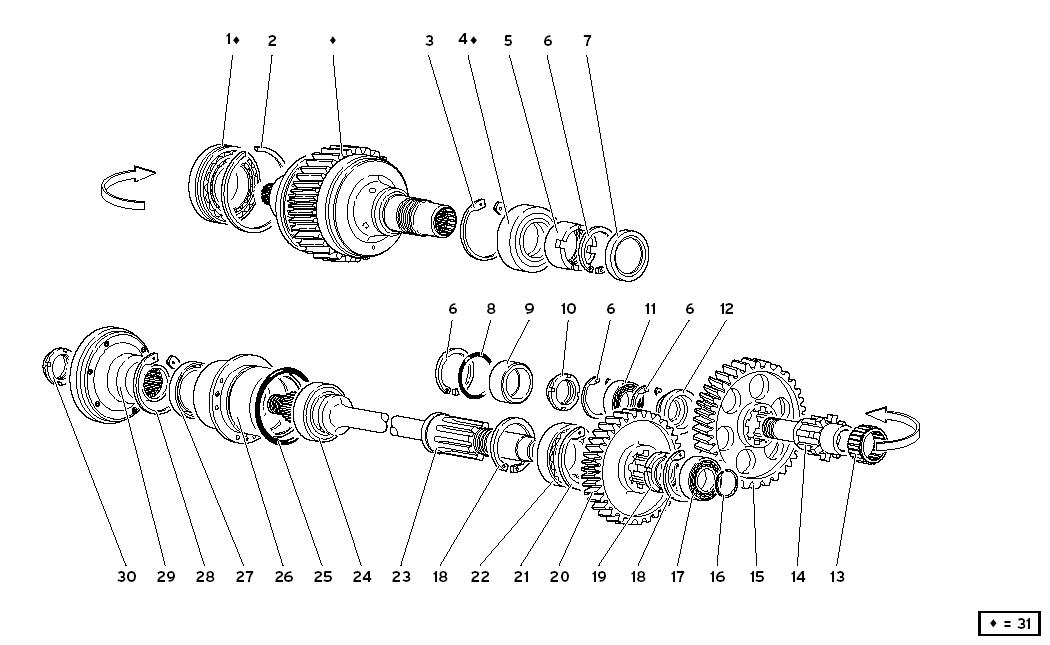

VISCOUS COUPLING

Go to Split View

VISCOUS COUPLING

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 8525013 *Qty: 1 BEARING (CUSCINETTO) $119.72
Location: 2 Prev | Next Part: 8589001 *Qty: 1 RETAINER RING (ANELLO RITEGNO) $3.32
Location: 3 Prev | Next Part: 8578001 *Qty: 1 RETAINER RING (ANELLO RITEGNO) $2.60
Location: 4 Prev | Next Part: 8514001 *Qty: 1 BEARING (CUSCINETTO) $146.78
Location: 5 Prev | Next Part: 8254004 *Qty: 1 PLUG (GHIERA) $142.36
Location: 6 Prev | Next Part: 8575201 *Qty: 4 RETAINER RING (ANELLO RITEGNO) $0.90
Location: 7 Prev | Next Part: 8613601 *Qty: 1 SEAL (ANELLO TENUTA) Call
Location: 8 Prev | Next Part: 8605002 *Qty: 1 SEAL (ANELLO TENUTA) $0.90
Location: 9 Prev | Next Part: 2436927 *Qty: 1 COVER (COPERCHIO) $197.31
Location: 10 Prev | Next Part: 8252502 *Qty: 1 PLUG (GHIERA) $35.08
Location: 11 Prev | Next Part: 8512500 *Qty: 1 BEARING (CUSCINETTO) $140.79
Location: 12 Prev | Next Part: 2430936 *Qty: 1 SPACER (DISTANZIALE) $63.14
Location: 13 Prev | Next Part: 8523517 *Qty: 1 BEARING (CUSCINETTO) $17.40
Location: 14 Prev | Next Part: 2431869 *Qty: 1 SMALL SHAFT (ALBERINO) $4,869.54
Location: 15 Prev | Next Part: 2433672 *Qty: 1 GEAR (INGRANAGGIO) $1,783.12
Location: 16 Prev | Next Part: 8582501 *Qty: 1 RETAINER RING (ANELLO RITEGNO) $5.67
Location: 17 Prev | Next Part: 8522509 *Qty: 1 BEARING (CUSCINETTO) $150.01
Location: 18 Prev | Next Part: 8576601 *Qty: 2 RETAINER RING (ANELLO RITEGNO) $0.90
Location: 19 Prev | Next Part: 8253005 *Qty: 1 PLUG (GHIERA) $19.35
Location: 20 Prev | Next Part: 2433673 *Qty: 1 GEAR (INGRANAGGIO) $1,540.20
Location: 21 Prev | Next Part: 8577601 *Qty: 1 RETAINER RING (ANELLO RITEGNO) $3.21
Location: 22 Prev | Next Part: 8523516 *Qty: 1 BEARING (CUSCINETTO) $51.46
Location: 23 Prev | Next Part: 2434628 *Qty: 1 PROPELLER SHAFT (ALBERO TRASMISSIONE) $580.95
Location: 24 Prev | Next Part: 8513000 *Qty: 1 BEARING (CUSCINETTO) $77.94
Location: 25 Prev | Next Part: 8606502 *Qty: 1 SEAL (ANELLO TENUTA) $0.90
Location: 26 Prev | Next Part: 2434637 *Qty: 1 FLANGE (FLANGIA) $330.63
Location: 27 Prev | Next Part: 8614204 *Qty: 1 SEAL (ANELLO TENUTA) Call
Location: 28 Prev | Next Part: 8575501 *Qty: 1 RETAINER RING (ANELLO RITEGNO) $1.26
Location: 29 Prev | Next Part: 2434627 *Qty: 1 FLANGE (FLANGIA) $1,108.03
Location: 30 Prev | Next Part: 8252505 *Qty: 1 PLUG (GHIERA) $41.24
Location: 31 Prev | Next Part: 24001009 *Qty: 1 VISCOUS COUPLING K (KIT GIUNTO VISCOSO (Z=34)) $1,834.99

* Quantity shown indicates the number of pieces used in the diagram.
