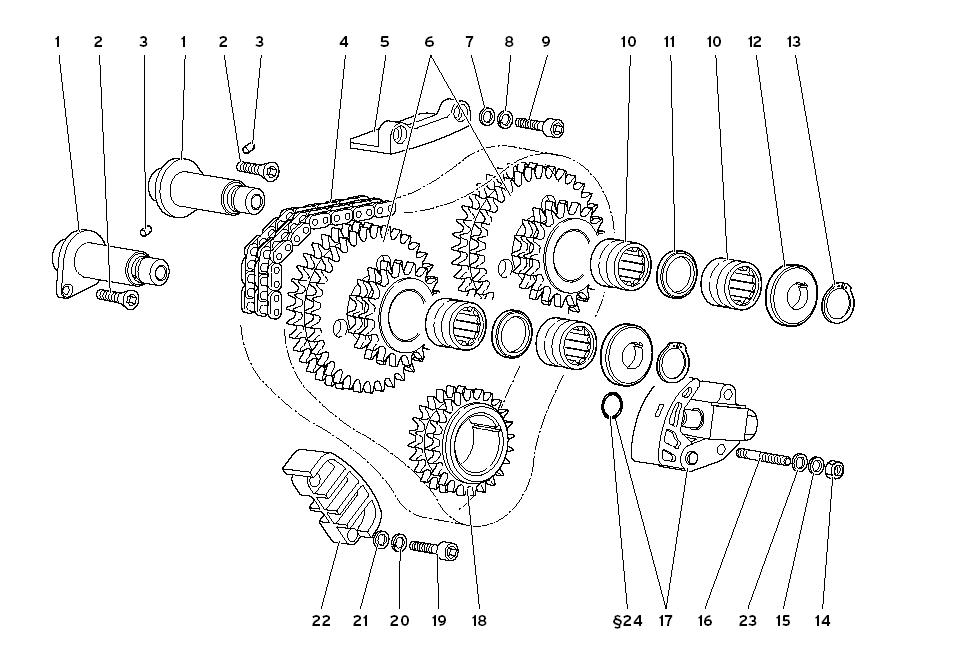

TIMING SYSTEM

Go to Split View

TIMING SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: *Qty: 0 ALSO INCLUDED IN THE ENGINE GASKETS KIT Call
Location: 1 Prev | Next Part: 1232199 *Qty: 2 PIN (PERNO) Call
Location: 2 Prev | Next Part: 8700638 *Qty: 2 SCREW (VITE) $0.90
Location: 3 Prev | Next Part: 8850302 *Qty: 2 PIN (SPINA) Call
Location: 4 Prev | Next Part: 12001137 *Qty: 1 CHAIN (CATENA INFERIORE DISTR.) Call
Location: 5 Prev | Next Part: 1232448 *Qty: 1 GUIDE (GUIDA) Call
Location: 6 Prev | Next Part: 1232197 *Qty: 2 GEAR (INGRANAGGIO) Call
Location: 7 Prev | Next Part: 1231040 *Qty: 2 WASHER (RONDELLA) Call
Location: 8 Prev | Next Part: 8410820 *Qty: 2 WASHER (RONDELLA) $0.90
Location: 9 Prev | Next Part: 8700850 *Qty: 2 SCREW (VITE) Call
Location: 10 Prev | Next Part: 8522508 *Qty: 4 BEARING (CUSCINETTO) Call
Location: 11 Prev | Next Part: 1232200 *Qty: 2 SPACER (DISTANZIALE) Call
Location: 12 Prev | Next Part: 12004032 *Qty: 2 WASHER (RONDELLA DI RITEGNO) Call
Location: 13 Prev | Next Part: 8581801 *Qty: 2 RETAINER RING (ANELLO RITEGNO) $0.90
Location: 14 Prev | Next Part: 8200604 *Qty: 2 NUT (DADO) $0.90
Location: 15 Prev | Next Part: 8410602 *Qty: 2 WASHER (RONDELLA) $0.90
Location: 16 Prev | Next Part: 8300660 *Qty: 2 STUD (PRIGIONIERO) $14.10
Location: 17 Prev | Next Part: 1234495 *Qty: 1 CHAIN STRETCHER (TENDICATENA) Call
Location: 18 Prev | Next Part: 1232196 *Qty: 1 GEAR (INGRANAGGIO COMANDO DISTR.) $137.93
Location: 19 Prev | Next Part: 8700848 *Qty: 2 SCREW (VITE) Call
Location: 20 Prev | Next Part: 8410820 *Qty: 2 WASHER (RONDELLA) $0.90
Location: 21 Prev | Next Part: 8400806 *Qty: 2 WASHER (RONDELLA) $0.90
Location: 22 Prev | Next Part: 1232447 *Qty: 1 GUIDE (GUIDA) Call
Location: 23 Prev | Next Part: 8400606 *Qty: 2 WASHER (RONDELLA) $0.90
Location: 24 Prev | Next Part: 8601501 *Qty: 1 SEAL (ANELLO DI TENUTA) $5.67

* Quantity shown indicates the number of pieces used in the diagram.
