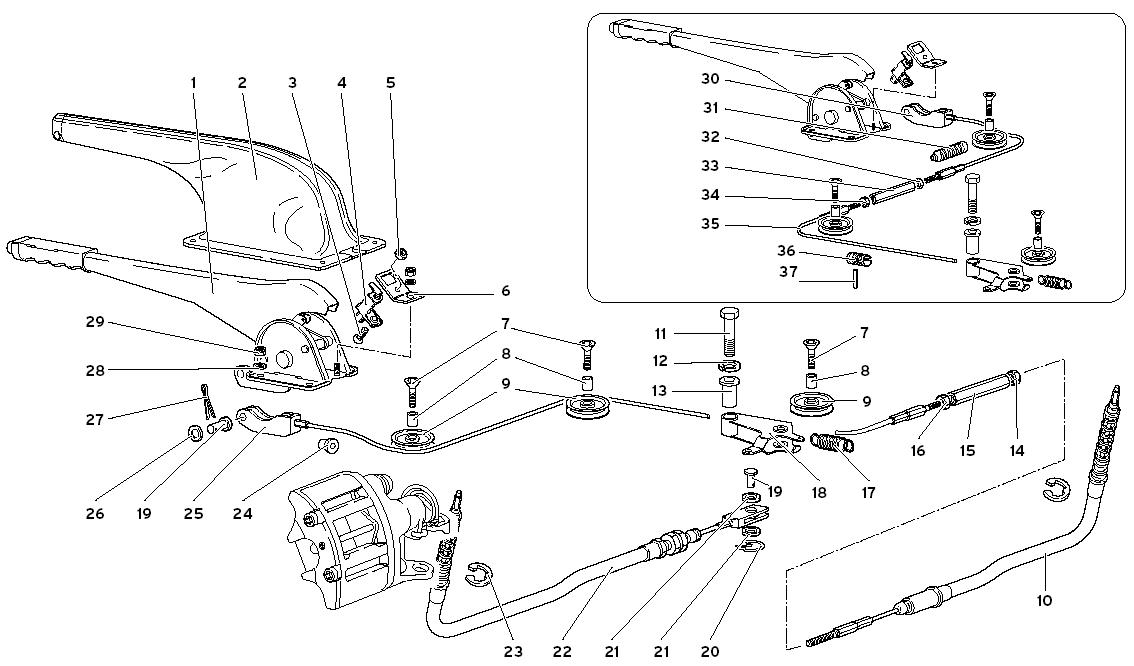

HANDBRAKE

Go to Split View

HANDBRAKE

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 33000780 *Qty: 1 HANDBRAKE LEVER (LEVA FRENO A MANO) Call
Location: 2 Prev | Next Part: 78001360 *Qty: 1 COVERING (RIVESTIMENTO) $153.83
Location: 3 Prev | Next Part: 8700404 *Qty: 1 SCREW (VITE) $0.90
Location: 4 Prev | Next Part: 3336007 *Qty: 1 BUTTON (PULSANTE) $28.97
Location: 5 Prev | Next Part: 8200406 *Qty: 1 NUT (DADO) $0.90
Location: 6 Prev | Next Part: 3335993 *Qty: 1 SUPPORT (SUPPORTO) Call
Location: 7 Prev | Next Part: 8700851 *Qty: 3 SCREW (VITE) $0.90
Location: 8 Prev | Next Part: 3330827 *Qty: 3 BUSHING (BOCCOLA) Call
Location: 9 Prev | Next Part: 3332512 *Qty: 3 PULLEY (CARRUCOLA) Call
Location: 10 Prev | Next Part: 33001133 *Qty: 1 RIGHT TIE ROD (TIRANTE DX) $156.66
Location: 11 Prev | Next Part: 8101407 *Qty: 1 SCREW (VITE) $5.09
Location: 12 Prev | Next Part: 8411404 *Qty: 1 WASHER (RONDELLA) $0.90
Location: 13 Prev | Next Part: 3330828 *Qty: 1 SPACER (DISTANZIALE) Call
Location: 14 Prev | Next Part: 8200607 *Qty: 1 NUT (DADO) $12.71
Location: 15 Prev | Next Part: 3304858 *Qty: 1 ADJUSTING SLEEVE (TESTA REGISTRO) Call
Location: 16 Prev | Next Part: 8200603 *Qty: 1 NUT (DADO) $0.90
Location: 17 Prev | Next Part: 3330829 *Qty: 1 SPRING (MOLLA) Call
Location: 18 Prev | Next Part: 3333935 *Qty: 1 SUPPORT (SUPPORTO) Call
Location: 19 Prev | Next Part: 3301307 *Qty: 2 PIN (PERNO) Call
Location: 20 Prev | Next Part: 8820203 *Qty: 1 CLIP (COPPIGLIA) Call
Location: 21 Prev | Next Part: 8400806 *Qty: 2 WASHER (RONDELLA) $0.90
Location: 22 Prev | Next Part: 33001131 *Qty: 1 LEFT TIE ROD (TIRANTE SX) $204.61
Location: 23 Prev | Next Part: 8581302 *Qty: 2 RETAINER RING (ANELLO RITEGNO) Call
Location: 24 Prev | Next Part: 3330880 *Qty: 1 RUBBER BUSHING (BOCCOLA GOMMA) Call
Location: 25 Prev | Next Part: 33001129 *Qty: 1 TIE ROD (TIRANTE) $259.86
Location: 26 Prev | Next Part: 8400806 *Qty: 1 WASHER (RONDELLA) $0.90
Location: 27 Prev | Next Part: 8820201 *Qty: 1 SPLIT PIN (COPIGLIA) $0.90
Location: 28 Prev | Next Part: 8400606 *Qty: 4 WASHER (RONDELLA) $0.90
Location: 29 Prev | Next Part: 8200606 *Qty: 4 NUT (DADO) $0.90
Location: 30 Prev | Next Part: 33001472 *Qty: 1 TIE ROD (76 TIRANTE) $254.73
Location: 30 Prev | Next Part: 33001472 *Qty: 1 TIE ROD (74 TIRANTE) $254.73
Location: 31 Prev | Next Part: 3332748 *Qty: 1 SHIELD (76 PROTEZIONE) $2.65
Location: 31 Prev | Next Part: 3332748 *Qty: 1 SHIELD (74 PROTEZIONE) $2.65
Location: 32 Prev | Next Part: 8200607 *Qty: 1 NUT (74 DADO) $12.71
Location: 32 Prev | Next Part: 8200607 *Qty: 1 NUT (76 DADO) $12.71
Location: 33 Prev | Next Part: 3304858 *Qty: 2 ADJUSTING SLEEVE (76 REGISTRO) Call
Location: 33 Prev | Next Part: 3304858 *Qty: 2 ADJUSTING SLEEVE (74 REGISTRO) Call
Location: 34 Prev | Next Part: 8200603 *Qty: 1 NUT (76 DADO) $0.90
Location: 34 Prev | Next Part: 8200603 *Qty: 1 NUT (74 DADO) $0.90
Location: 35 Prev | Next Part: 3332749 *Qty: 1 TIE ROD (74 TIRANTE) $112.05
Location: 35 Prev | Next Part: 3332749 *Qty: 1 TIE ROD (76 TIRANTE) $112.05
Location: 36 Prev | Next Part: 3330824 *Qty: 1 BUSHING (76 BOCCOLA) Call
Location: 36 Prev | Next Part: 3330824 *Qty: 1 BUSHING (74 BOCCOLA) Call
Location: 37 Prev | Next Part: 8900204 *Qty: 1 PIN (76 SPINA) $0.90
Location: 37 Prev | Next Part: 8900204 *Qty: 1 PIN (74 SPINA) $0.90

* Quantity shown indicates the number of pieces used in the diagram.
