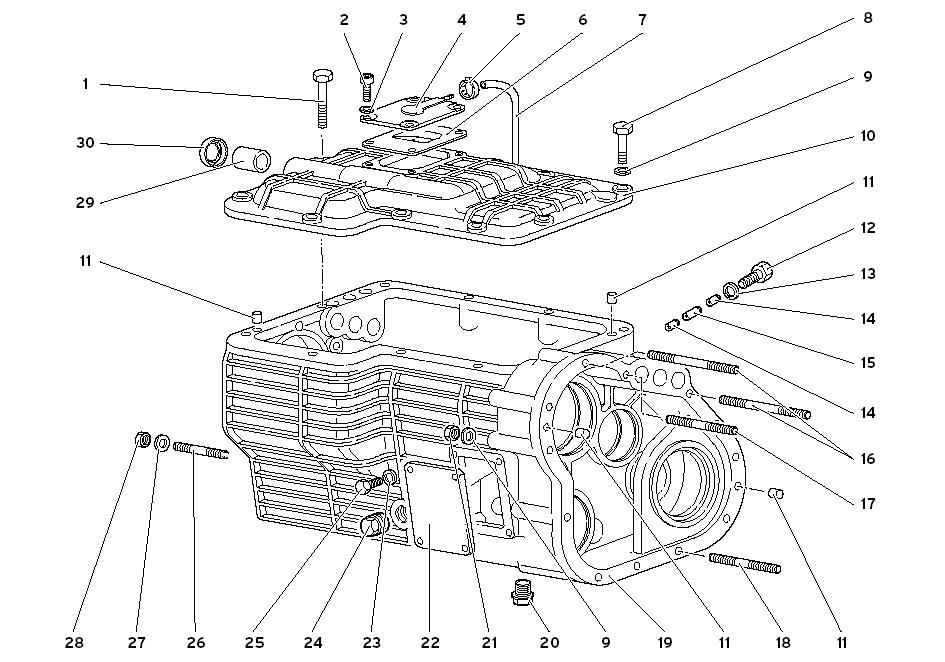

GEARBOX

Go to Split View

GEARBOX

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 8100807 *Qty: 1 SCREW (VITE) $0.90
Location: 2 Prev | Next Part: 8700646 *Qty: 4 SCREW (VITE) $0.90
Location: 3 Prev | Next Part: 8410602 *Qty: 4 WASHER (RONDELLA) $0.90
Location: 4 Prev | Next Part: 2428645 *Qty: 1 COVER (COPERCHIO SFIATO) $121.04
Location: 5 Prev | Next Part: 8830128 *Qty: 1 STRAP (FASCETTA) $0.90
Location: 6 Prev | Next Part: 2428643 *Qty: 1 PAN (VASCHETTA) $19.81
Location: 7 Prev | Next Part: 2428649 *Qty: 1 VENT PIPE (TUBO DI SFIATO) Call
Location: 8 Prev | Next Part: 8100821 *Qty: 9 SCREW (VITE) $1.20
Location: 9 Prev | Next Part: 8410810 *Qty: 22 WASHER (RONDELLA) $0.90
Location: 10 Prev | Next Part: 2424900 *Qty: 1 COVER (COPERCHIO) $511.58
Location: 11 Prev | Next Part: 8850806 *Qty: 4 DOWEL (GRANO) Call
Location: 12 Prev | Next Part: 8100826 *Qty: 1 SCREW (VITE) $0.90
Location: 13 Prev | Next Part: 8400802 *Qty: 1 WASHER (RONDELLA) $0.90
Location: 14 Prev | Next Part: 2425223 *Qty: 2 ROD (PUNTALINO) $26.59
Location: 15 Prev | Next Part: 2425224 *Qty: 1 ROD (PUNTALINO) $27.28
Location: 16 Prev | Next Part: 8300895 *Qty: 2 STUD (PRIGIONIERO) $7.96
Location: 17 Prev | Next Part: 8300897 *Qty: 1 STUD (PRIGIONIERO) $14.88
Location: 18 Prev | Next Part: 8300916 *Qty: 9 STUD (PRIGIONIERO) $4.94
Location: 19 Prev | Next Part: 2430746 *Qty: 1 GEAR BOX CASE (SCATOLA CAMBIO) $3,166.40
Location: 20 Prev | Next Part: 8932203 *Qty: 1 MAGNETIC PLUG (TAPPO MAGNETICO) Call
Location: 21 Prev | Next Part: 8200806 *Qty: 12 NUT (DADO) $0.90
Location: 22 Prev | Next Part: 2435931 *Qty: 1 COVER (COPERCHIO) $31.18
Location: 23 Prev | Next Part: 8410602 *Qty: 4 WASHER (RONDELLA) $0.90
Location: 24 Prev | Next Part: 8932203 *Qty: 1 MAGNETIC PLUG (TAPPO MAGNETICO) Call
Location: 25 Prev | Next Part: 8100861 *Qty: 4 SCREW (VITE) $2.63
Location: 26 Prev | Next Part: 8300627 *Qty: 6 STUD (PRIGIONIERO) $12.97
Location: 27 Prev | Next Part: 8410602 *Qty: 6 WASHER (RONDELLA) $0.90
Location: 28 Prev | Next Part: 8200604 *Qty: 6 NUT (DADO) $0.90
Location: 29 Prev | Next Part: 8801612 *Qty: 1 BUSHING (BOCCOLA) Call
Location: 30 Prev | Next Part: 8611605 *Qty: 1 SEAL (ANELLO TENUTA) $15.86

* Quantity shown indicates the number of pieces used in the diagram.
