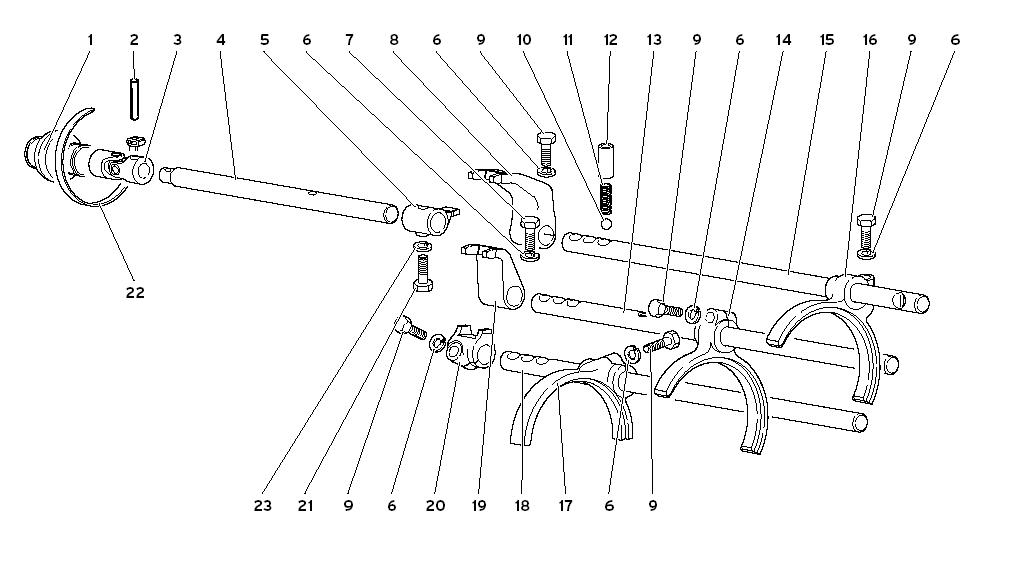

GEARBOX SHIFTING RODS AND FORKS

Go to Split View

GEARBOX SHIFTING RODS AND FORKS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 2434614 *Qty: 1 BOOT (CUFFIA) Call
Location: 2 Prev | Next Part: 8900305 *Qty: 1 PIN (SPINA) $0.90
Location: 3 Prev | Next Part: 2430983 *Qty: 1 JOINT (SNODO SX) Call
Location: 4 Prev | Next Part: 2427211 *Qty: 1 ROD (ASTA COMANDO CAMBIO) $333.03
Location: 5 Prev | Next Part: 2425186 *Qty: 1 GEAR SELECTOR (SELETTORE MARCE) $165.14
Location: 6 Prev | Next Part: 8410817 *Qty: 6 WASHER (RONDELLA) $4.50
Location: 7 Prev | Next Part: 8100878 *Qty: 1 SCREW (VITE) $0.90
Location: 8 Prev | Next Part: 2425189 *Qty: 1 GEAR SELECTOR (SELETTORE MARCE) $199.80
Location: 9 Prev | Next Part: 8100821 *Qty: 5 SCREW (VITE) $1.21
Location: 10 Prev | Next Part: 8910701 *Qty: 3 BALL (SFERA) Call
Location: 11 Prev | Next Part: 2402242 *Qty: 3 SPRING (MOLLA) Call
Location: 12 Prev | Next Part: 2401765 *Qty: 3 BUSHING (BOCCOLA) $17.41
Location: 13 Prev | Next Part: 2425230 *Qty: 1 ROD (ASTA 2? E 3? MARCIA) $199.99
Location: 14 Prev | Next Part: 2425191 *Qty: 1 FORK (FORCELLA 2? E 3? MARCIA) $507.71
Location: 15 Prev | Next Part: 2425229 *Qty: 1 ROD (ASTA 1? MARCIA E RM) $179.54
Location: 16 Prev | Next Part: 2425190 *Qty: 1 FORK (FORCELLA 1? MARCIA E RM) $194.92
Location: 17 Prev | Next Part: 2425192 *Qty: 1 FORK (FORCELLA 4? E 5? MARCIA) $457.92
Location: 18 Prev | Next Part: 2425231 *Qty: 1 ROD (ASTA 4? E 5? MARCIA) $426.94
Location: 19 Prev | Next Part: 2425188 *Qty: 1 GEAR SELECTOR (SELETTORE MARCE) $159.48
Location: 20 Prev | Next Part: 2425187 *Qty: 1 GEAR SELECTOR (SELETTORE MARCE) $178.94
Location: 21 Prev | Next Part: 8100628 *Qty: 1 SCREW (VITE) $50.54
Location: 22 Prev | Next Part: 8830305 *Qty: 2 STRAP (FASCETTA) $0.90
Location: 23 Prev | Next Part: 8410602 *Qty: 1 WASHER (RONDELLA) $0.90

* Quantity shown indicates the number of pieces used in the diagram.
