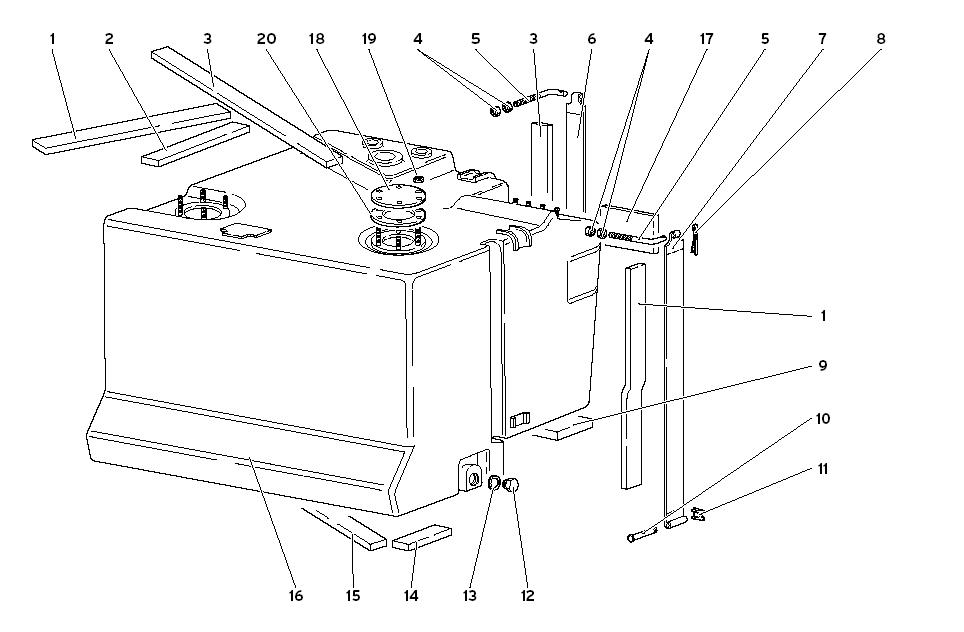

FUEL TANKS - FOR CARS WITH FAST FUEL INSERTION

Go to Split View

FUEL TANKS - FOR CARS WITH FAST FUEL INSERTION

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 6231704 *Qty: 2 SHIELD (PROTEZIONE) $6.61
Location: 2 Prev | Next Part: 6237956 *Qty: 1 SHIELD (PROTEZIONE) Call
Location: 3 Prev | Next Part: 6231703 *Qty: 2 SHIELD (PROTEZIONE) Call
Location: 4 Prev | Next Part: 8200808 *Qty: 4 NUT (DADO) $0.90
Location: 5 Prev | Next Part: 6226884 *Qty: 2 TIE ROD (TIRANTE) Call
Location: 6 Prev | Next Part: 6237360 *Qty: 1 STRAP (FASCETTA) $74.38
Location: 7 Prev | Next Part: 6229506 *Qty: 1 STRAP (FASCETTA) $37.51
Location: 8 Prev | Next Part: 8820304 *Qty: 2 SPLIT PIN (COPIGLIA) $0.90
Location: 9 Prev | Next Part: 6231701 *Qty: 2 SHIELD (PROTEZIONE) $6.05
Location: 10 Prev | Next Part: 6233763 *Qty: 2 PIN (PERNO) $10.21
Location: 11 Prev | Next Part: 8580604 *Qty: 2 CLIP (MOLLETTA) $2.14
Location: 12 Prev | Next Part: 8931203 *Qty: 1 PLUG (TAPPO) $26.14
Location: 13 Prev | Next Part: 8401219 *Qty: 1 WASHER (RONDELLA) Call
Location: 14 Prev | Next Part: 6231706 *Qty: 1 SHIELD (PROTEZIONE) $2.25
Location: 15 Prev | Next Part: 6231702 *Qty: 1 SHIELD (PROTEZIONE) $4.66
Location: 16 Prev | Next Part: 62004580 *Qty: 1 FUEL TANK (SERBATOIO BENZINA) $2,642.35
Location: 17 Prev | Next Part: 6237368 *Qty: 1 SHIELD (PROTEZIONE) $18.54
Location: 18 Prev | Next Part: 62004582 *Qty: 1 PLUG (TAPPO) $51.24
Location: 19 Prev | Next Part: 8200406 *Qty: 6 NUT (DADO) $0.90
Location: 20 Prev | Next Part: 6205360 *Qty: 1 GASKET (GUARNIZIONE) $12.36

* Quantity shown indicates the number of pieces used in the diagram.
