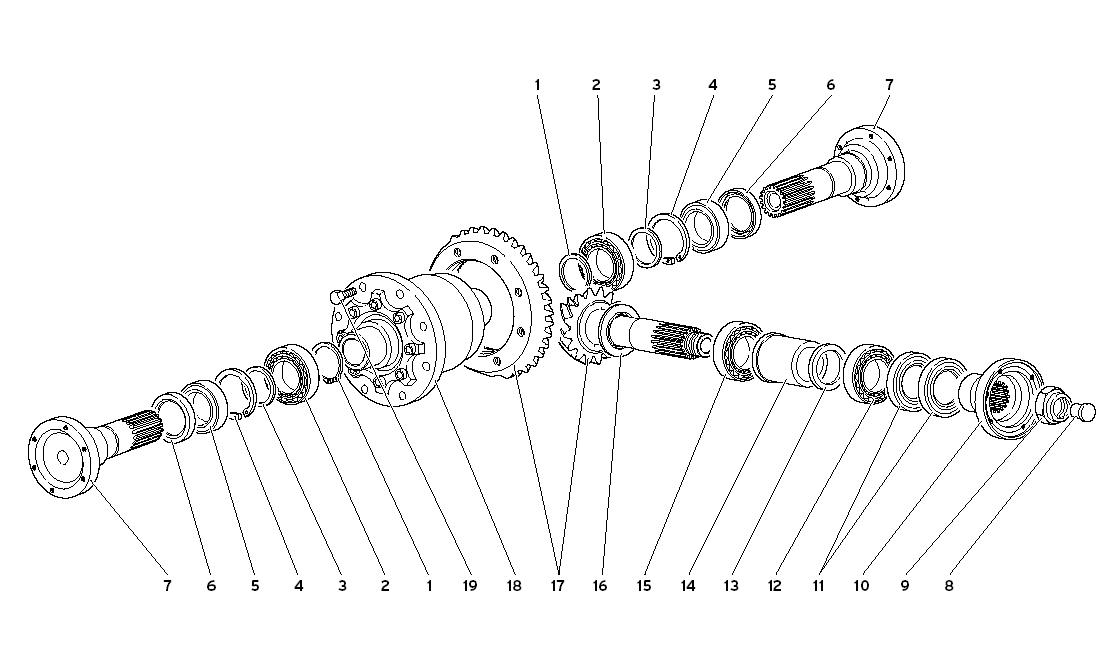

FRONT DIFFERENTIAL

Go to Split View

FRONT DIFFERENTIAL

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 8582701 *Qty: 2 RETAINER RING (ANELLO RITEGNO) $0.90
Location: 2 Prev | Next Part: 8544103 *Qty: 2 BEARING (CUSCINETTO) $85.39
Location: 3 Prev | Next Part: 2325826 *Qty: 2 SPACER (DISTANZIALE) Call
Location: 4 Prev | Next Part: 8576601 *Qty: 2 RETAINER RING (ANELLO RITEGNO) $0.90
Location: 5 Prev | Next Part: 8503012 *Qty: 2 BEARING (CUSCINETTO) Call
Location: 6 Prev | Next Part: 8613806 *Qty: 2 SEAL (ANELLO TENUTA) Call
Location: 7 Prev | Next Part: 2325830 *Qty: 2 FLANGE (FLANGIA) Call
Location: 8 Prev | Next Part: 2334235 *Qty: 1 RUBBER (GOMMA) $10.71
Location: 9 Prev | Next Part: 8252505 *Qty: 1 PLUG (GHIERA) $41.24
Location: 10 Prev | Next Part: 2434627 *Qty: 1 FLANGE (FLANGIA) $1,108.03
Location: 11 Prev | Next Part: 8614208 *Qty: 2 SEAL (ANELLO TENUTA) $119.70
Location: 12 Prev | Next Part: 8543101 *Qty: 1 BEARING (CUSCINETTO) $137.02
Location: 13 Prev | Next Part: 2334350 *Qty: 0 SHIM (SPESSORE DI REGISTRO 0-15 MM) $69.73
Location: 13 Prev | Next Part: 2333788 *Qty: 0 SHIM (SPESSORE DI REGISTRO 2-9 MM) $18.66
Location: 13 Prev | Next Part: 2333787 *Qty: 0 SHIM (SPESSORE DI REGISTRO 2-8 MM) $18.66
Location: 13 Prev | Next Part: 2334258 *Qty: 0 SHIM (SPESSORE DI REGISTRO 3-3 MM) $34.79
Location: 13 Prev | Next Part: 2333791 *Qty: 0 SHIM (SPESSORE DI REGISTRO 3-2 MM) $62.96
Location: 13 Prev | Next Part: 2333790 *Qty: 0 SHIM (SPESSORE DI REGISTRO 3-1 MM) $18.66
Location: 13 Prev | Next Part: 2333789 *Qty: 0 SHIM (SPESSORE DI REGISTRO 3-0 MM) $18.66
Location: 14 Prev | Next Part: 2325825 *Qty: 1 SPACER (DISTANZIALE) $49.92
Location: 15 Prev | Next Part: 8543401 *Qty: 1 BEARING (CUSCINETTO) $49.32
Location: 16 Prev | Next Part: 2334259 *Qty: 0 SHIM (SPESSORE DI REGISTRO 2-3 MM) $88.87
Location: 16 Prev | Next Part: 2333796 *Qty: 0 SHIM (SPESSORE DI REGISTRO 2-8 MM) $54.81
Location: 16 Prev | Next Part: 2333794 *Qty: 0 SHIM (SPESSORE DI REGISTRO 2-6 MM) $54.81
Location: 16 Prev | Next Part: 2333795 *Qty: 0 SHIM (SPESSORE DI REGISTRO 2-7 MM) $54.81
Location: 16 Prev | Next Part: 2333793 *Qty: 0 SHIM (SPESSORE DI REGISTRO 2-5 MM) $22.95
Location: 16 Prev | Next Part: 2333792 *Qty: 0 SHIM (SPESSORE DI REGISTRO 2-4 MM) $22.95
Location: 17 Prev | Next Part: 2334647 *Qty: 1 BEVEL SET (COPPIA CONICA) $2,876.27
Location: 18 Prev | Next Part: 2325823 *Qty: 1 DIFFERENTIAL (DIFFERENZIALE ANT.) Call
Location: 19 Prev | Next Part: 8101062 *Qty: 8 SCREW (VITE) $4.65

* Quantity shown indicates the number of pieces used in the diagram.
